Features:

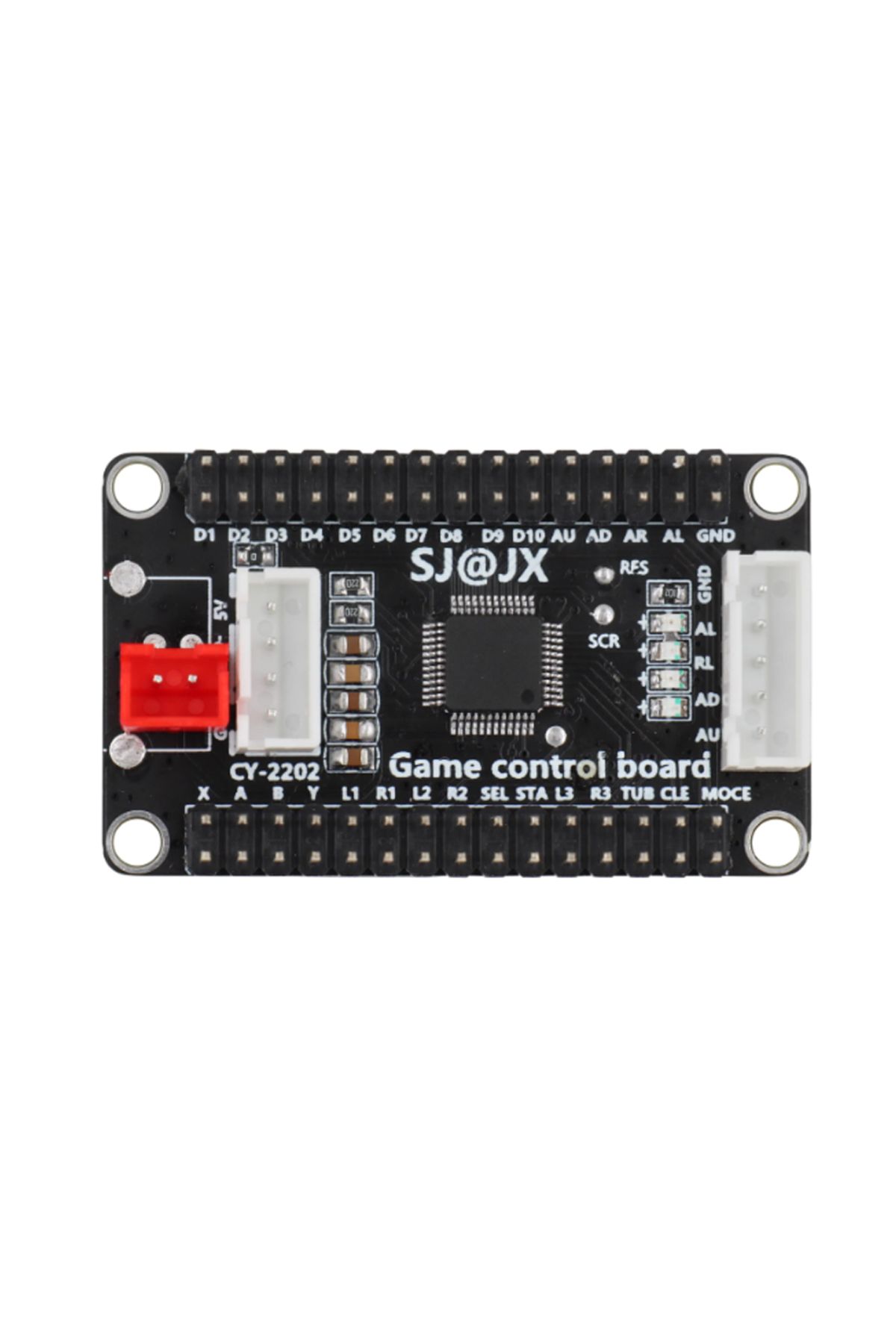

This single-person chip is a multi-function USB rocker control chip (4-axis 12-key 1POV) controller, the circuit is compatible with USB2.0 and supports Win98 / Win7/ Win10 / Win 2000 / Win XP, PS3 / Android system / tree Raspberry Pi, and passed the USB communication protocol test (USB Check and Hid View Tests).
Support one player (can connect 1 joystick, 12 buttons. And 5V power output can connect some led lights).
If you need to connect the led light to the button, please click the link below to purchase.
Function Description
1,Mode switching
*Press and hold the key (DIGITAL/ANALOG) to switch to PC360 mode. MODE is the Menu key.
*Short button (DIGITAL/ANALOG) supports DIGITAL/ANALOG switching. D2 light is on
2. TURBO/CLEAR Burst Cancel Burst as Same Button
X. A, B, Y, Mountain, RI, L2, R2; Can be set as TURBO burst function. Simultaneously press the TURBO+set button to set the TURBO burst function. When the TURBO function is set, press the set key directly to issue the TURBO function. That is, press the CLEAR+set key while pressing the combo button to cancel the TURBO combo function.
3,Support SOCD.
SANWA wires kit:
USB 2022 encoder *1
1.5meter usb cable *1
2.8mm cable (for snawa button) *10
5pin joystick cable *1
Happ style wires kit:
USB 2022 encoder *1
1.5meter usb cable *1
4.8mm cable (for American button joystick and button) *14
Hitbox style wires kit:
USB 2022 encoder *1
1.5meter usb cable *1
2.8mm cable (for snawa button) *18
