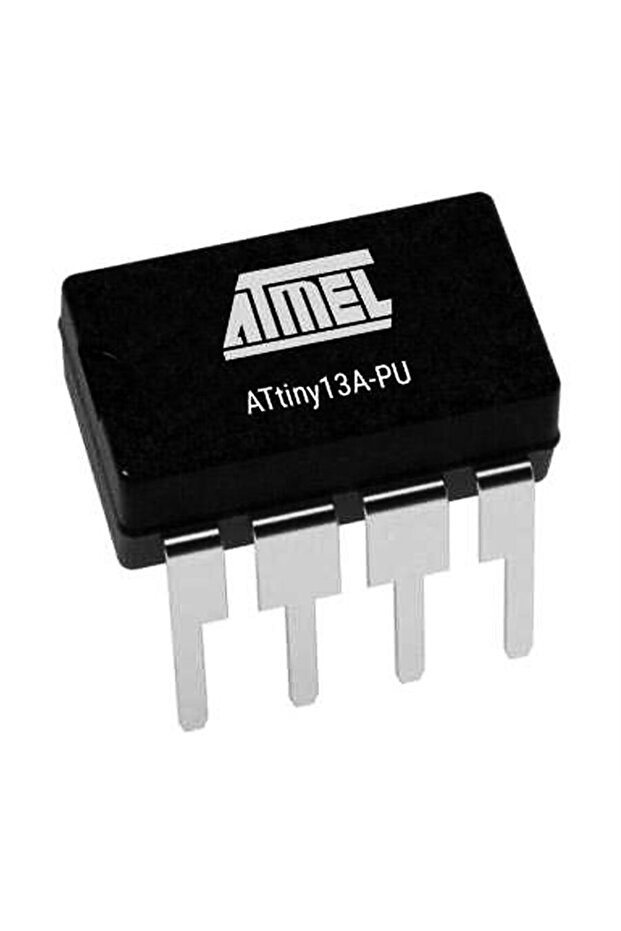

Arduino Attiny13a 8-bit 20mhz Microcontroller Dip-8

The attiny13a dip-8 8-bit 20mhz microcontroller is a product of atmel. it is in a dip-8 case and is a type of 8-bit microcontroller that operates at a frequency of 20mhz. 6 out of the 8 pins on it are i/o, which means input output pins.

memory type flash, these microcontrollers operate at 1.8v to 5.5v supply range, -40 c ° With +85 c ° Operating within their temperature range.

Attiny13a dip-8 8-bit 20mhz microcontroller technical specifications product attiny13a product brand atmel product category attiny mounting type tht package / box dip8 / 7. 62mm memory type flash number of bits 8-bit speed 20mhz program memory size 1kb (512 x 16) ram size 64 bytes eeprom size 64 bytes number of i/os 6 supply voltage 1. 8v ~ 5. 5v operating temperature -40 ° C ~ 85 ° C rohs rohs
