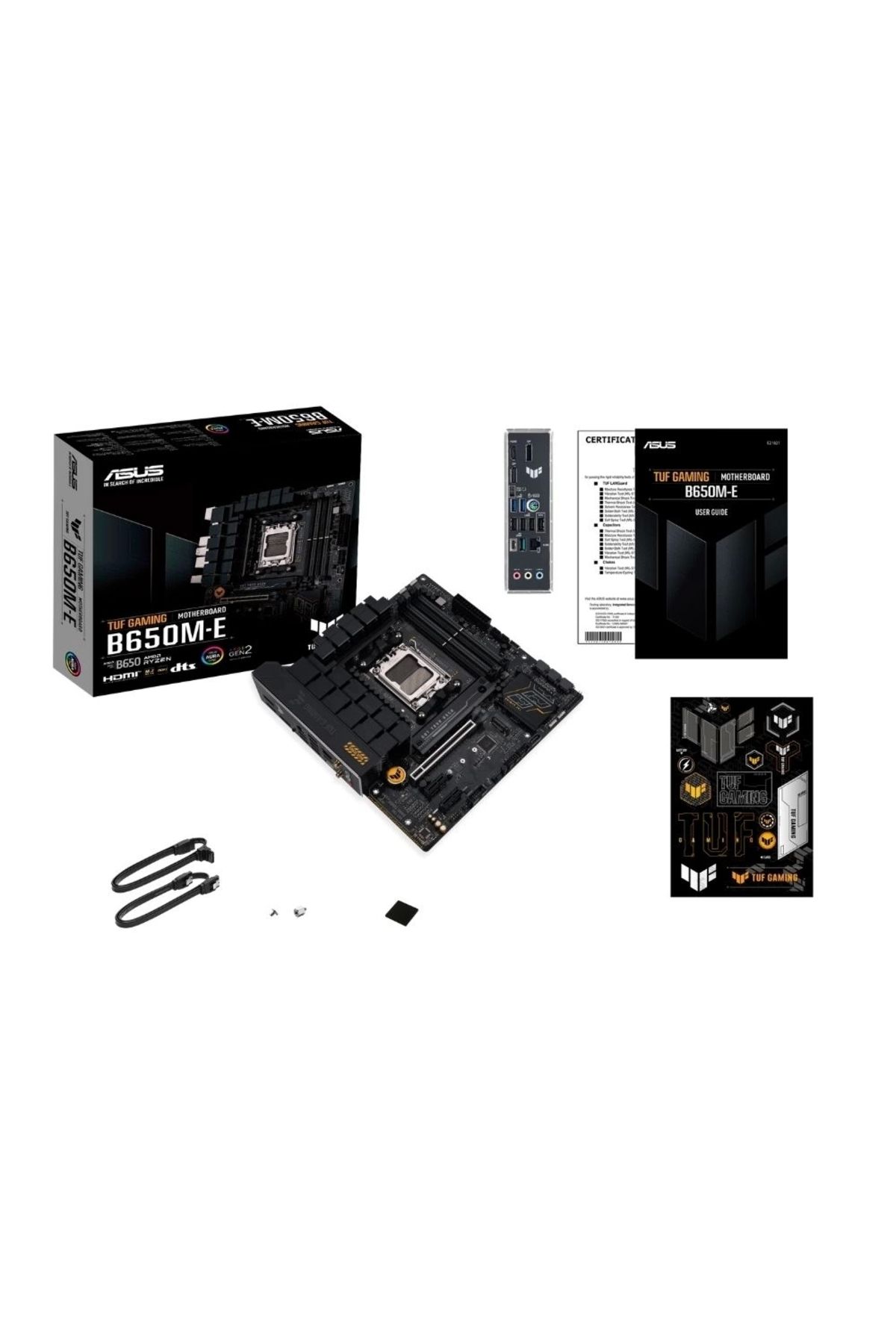

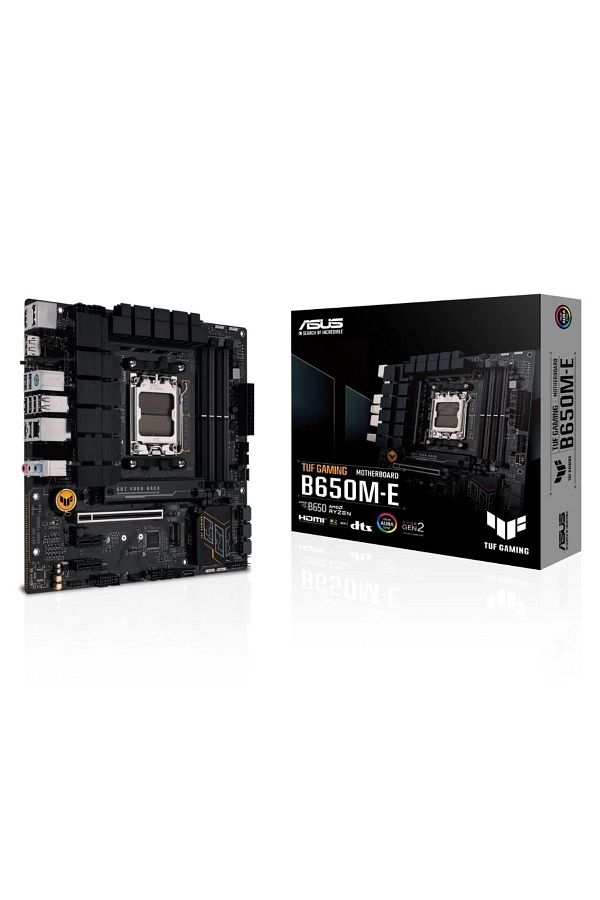

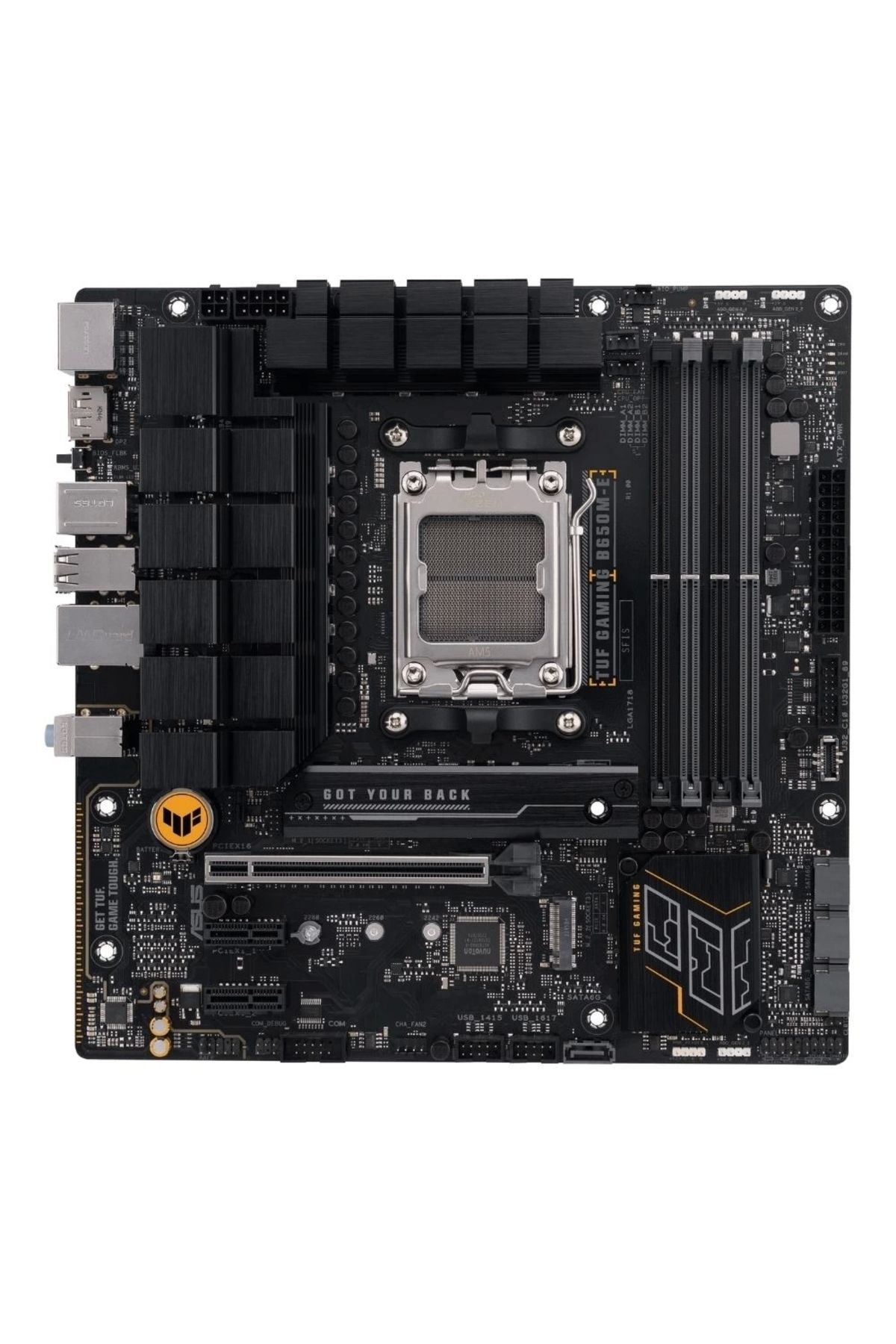

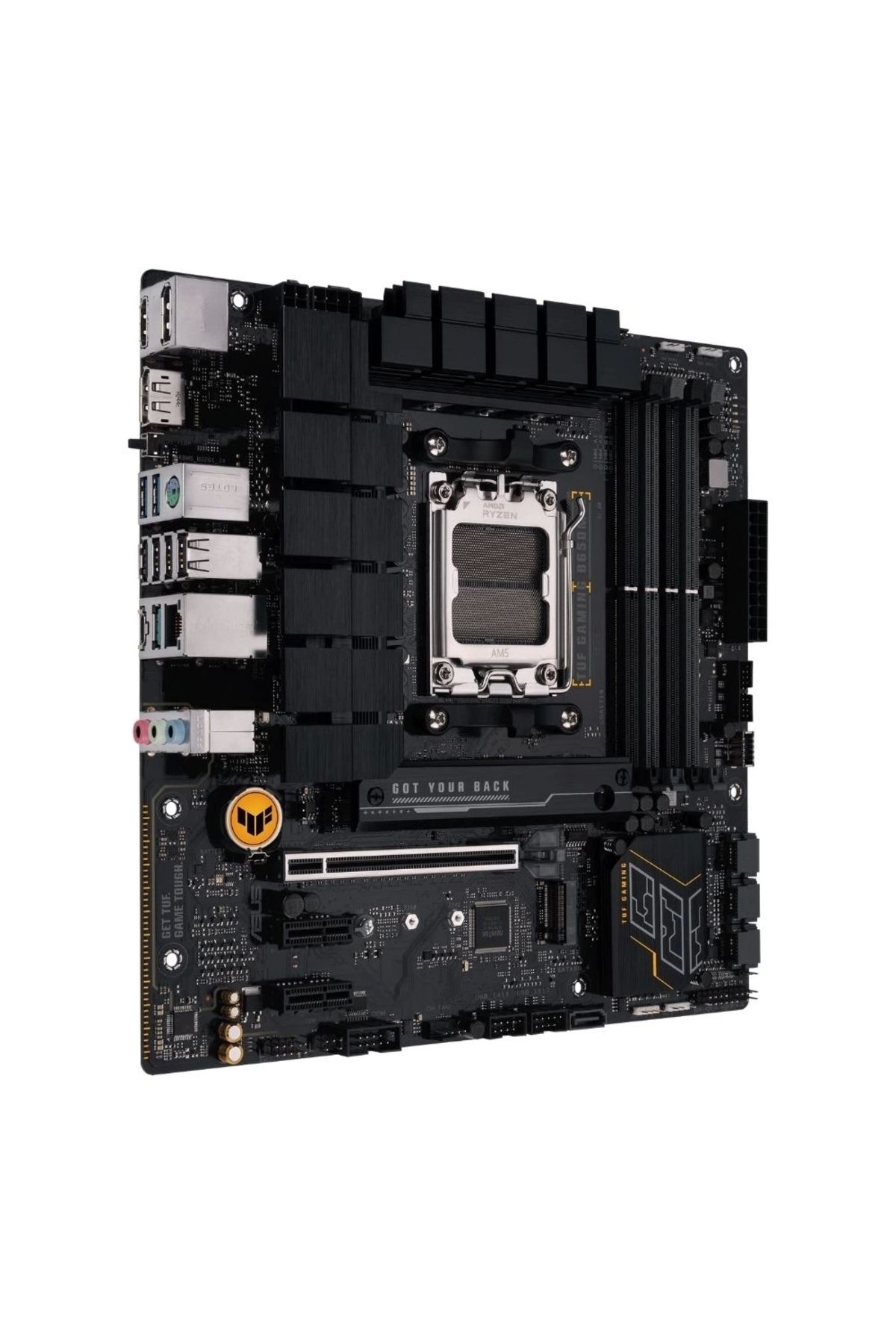

ASUS TUF GAMING B650M-E AMD B650 DDR5 USB3.2 DP/HDMI PCI 4.0 AM5 Motherboard

Category amd motherboard manufacturer code 90mb1fu0

m0eay0 processor socket amd ryzen ™ Amd socket am5 for 7000 series desktop processors socket type am5 memory slot 4x dimm memory support 4 x dimm slots, max. 128gb, ddr5 6400+(oc)/ 6200(oc)/ 6000(oc)/ 5800(oc)/ 5600(oc)/ 5400(oc)/ 5200/ 5000/ 4800 maximum memory support 128gb storage ports supports a total of 2 x m. 2 bays and 4 x sata 6gb/s ports Amd ryzen ™ 7000 series desktop processors m 2_1 slot (key m), type 2242/2260/2280 (pcie 5

Supports 0 x4 mode) m 2_2 slot (switch m), type 2242/2260/2280 (pcle 4

Supports 0 x4 mode no integrated vga integrated audio realtek 7 1 surround sound high definition audio codec

Supports: jack detection, multi-stream, front panel jack reassignment

24

Supports up to bit/192 khz playback" sound specifications

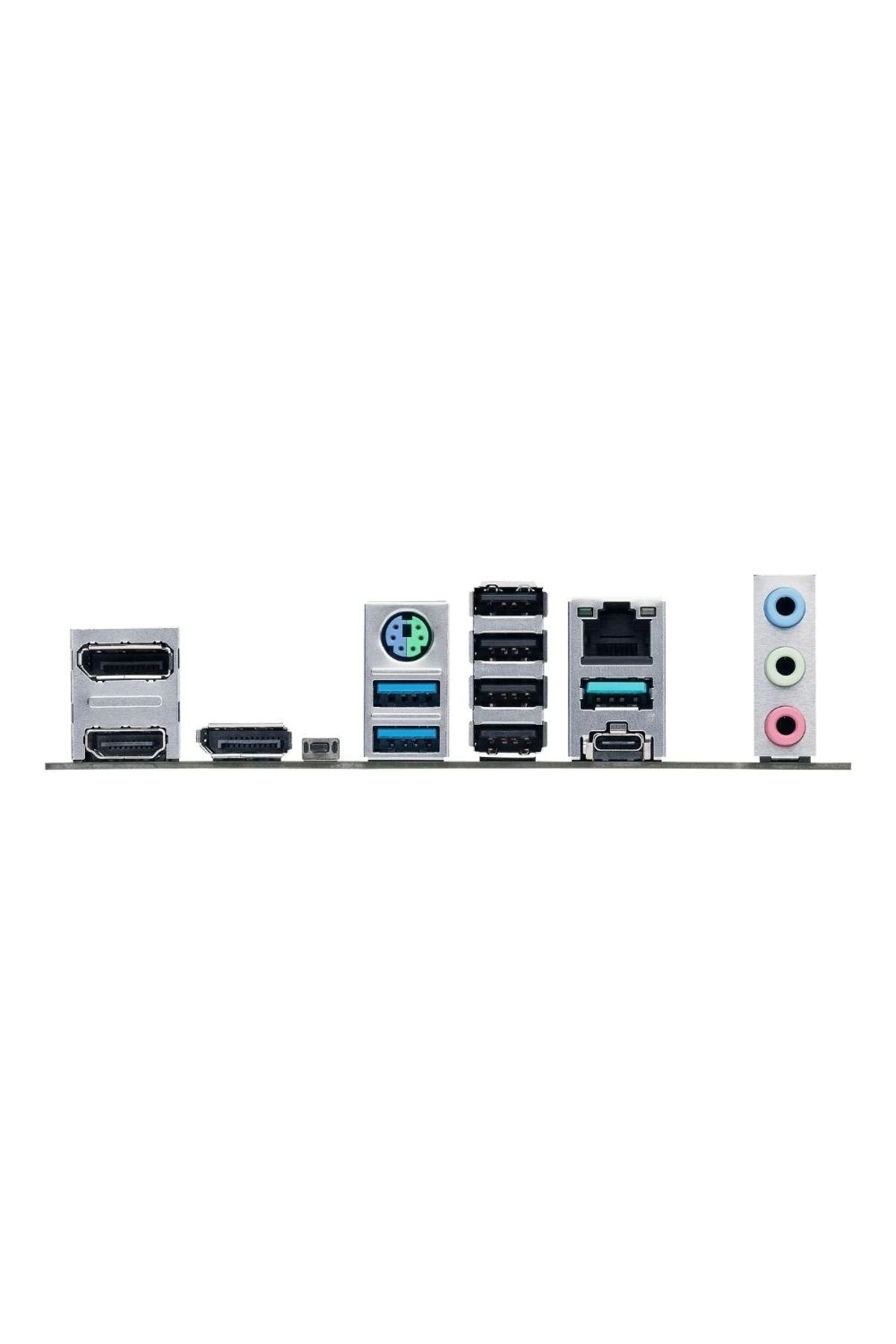

Sound protection Premium audio capacitors Dedicated audio chipset amd b650 chipset integrated network 1 x realtek 2 5gb ethernet tuf languard rear ports 2 x usb 3 2 gen 2 (10g) ports (1 x type

A + 1 x usb type C ® 2 x usb 3

2 gen 1 (5g) ports (2 x type

a) 4 x usb 2

0 ports (4 x type

a) 2 x displayport 1 x hdmi tm port 1 x realtek 2

5gb ethernet port expansion slot amd ryzen ™ 7000 series desktop processors 1 x pcie 4 0 x16 slot amd b650 chipset 2 x pcie 4 0 x1 slot internal connections 1 x 4-pin cpu fan header related to fan and cooling 1 x 4-pin cpu opt fan header 1 x 4-pin aio pump header 2 x 4-pin case fan headers power related 1 x 24-pin main power connector 1 x 8 Pin +12v power connector 1 x 4

Pin +12v power connector warehouse operating system support windows ® 11, windows ® 10 64

micro atx form structure dimensions 9.6 inches x 9.6 inches (24.4 cm x 24.4 cm)
