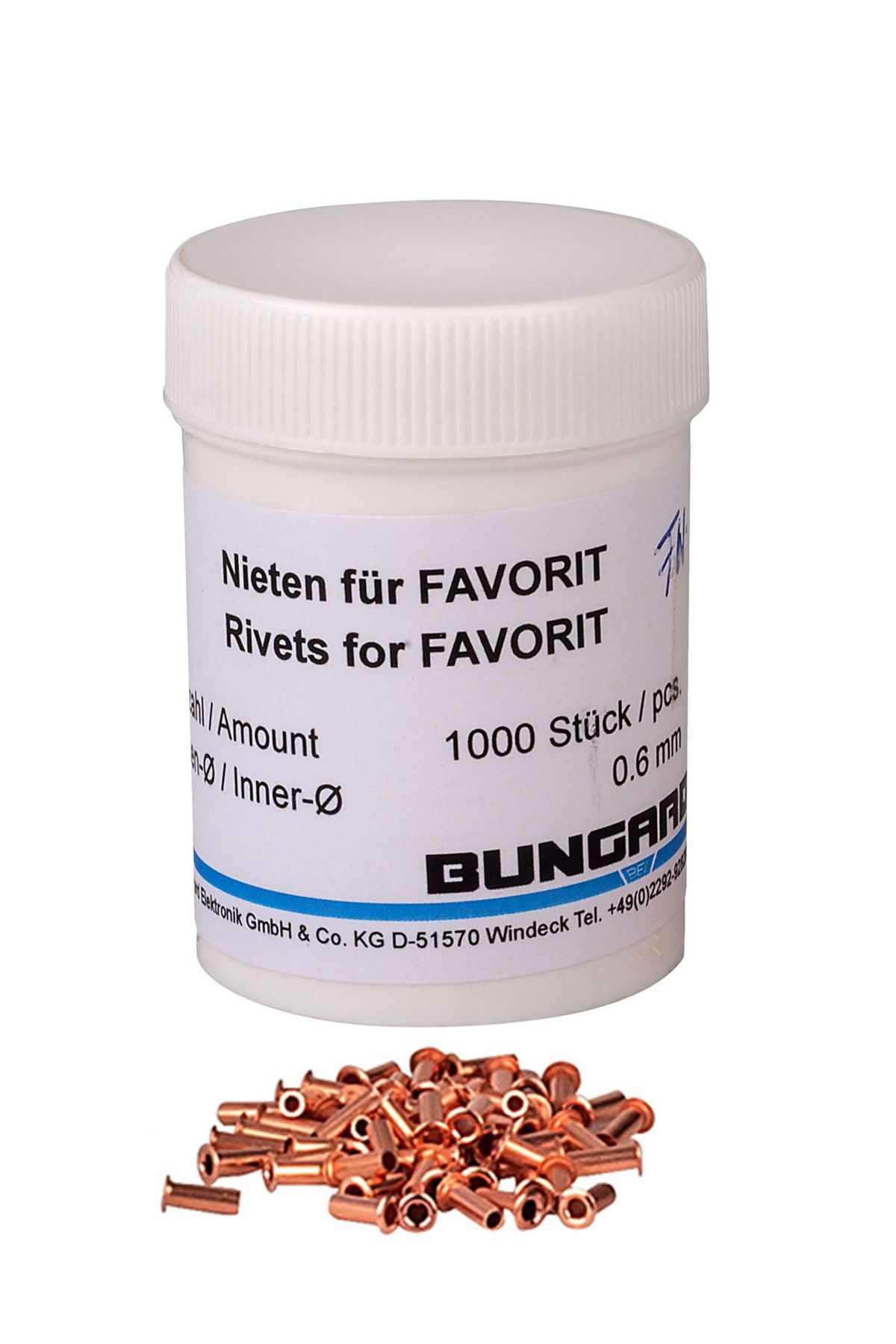

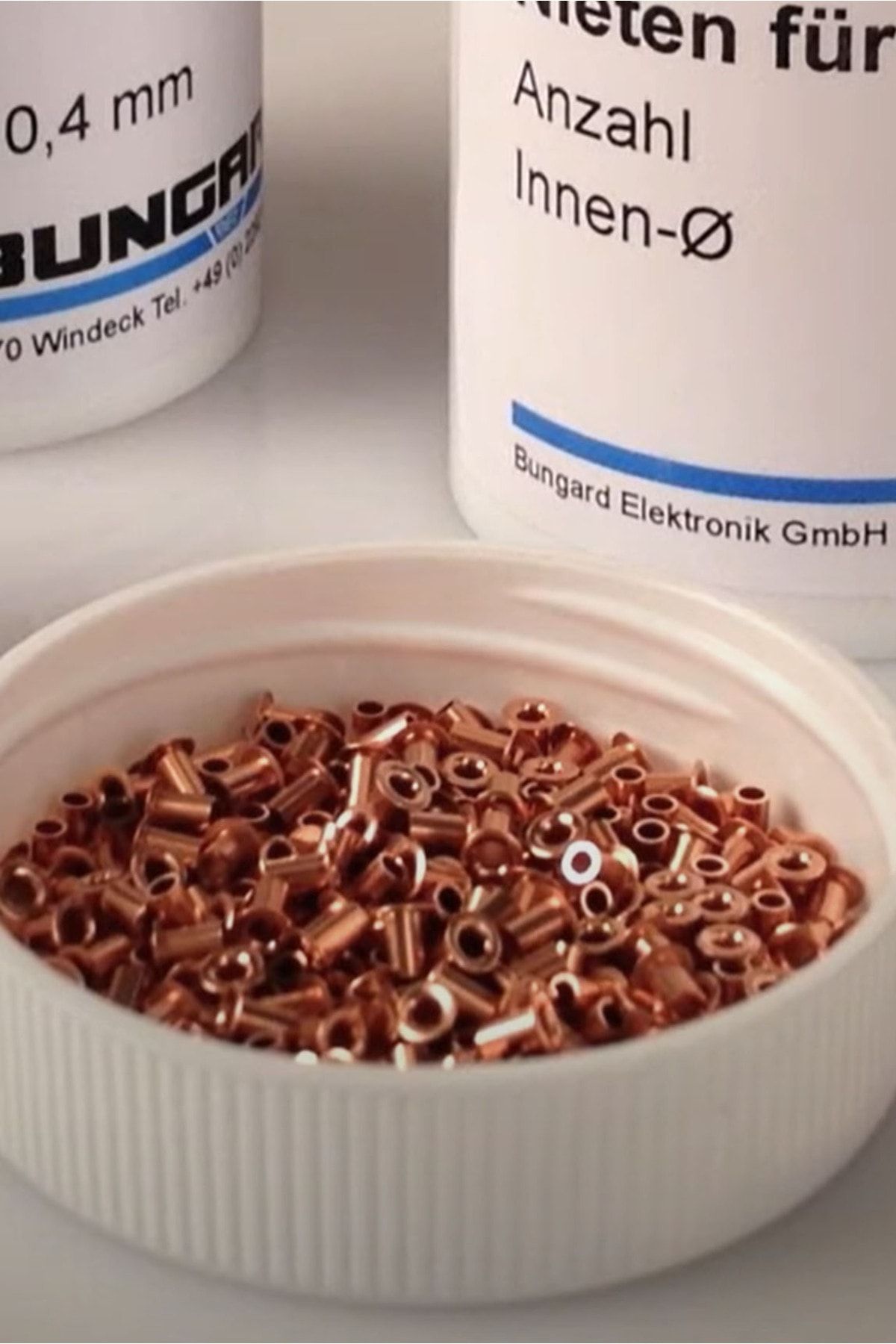

CUBE 3D 0.4 mm Copper PCB Rivet

Pcb through hole plating rivet / rivet set for pcb vias / mechanical pcb through hole plating (pth) machine / printed circuit through hole plating rivet / pcb through hole plating rivet

Double-sided printed circuits can be made very quickly and flawlessly with the in-hole plating method made with copper rivets. It is an unbeatable product due to its cost-effectiveness compared to chemical methods and its ability to be safely used in any environment.

for driving rivets into the plate, a specially manufactured manual press machine and tool sets (male and female dies) are used, which can be replaced according to the inner diameter of the rivet. With the help of tool sets (male and female molds) attached to the press machine, copper rivets are squeezed between the two sides of the plaque. Thanks to the copper plastered on the surfaces, the continuity of transmission between the bottom layer and the top layer is ensured.

together with rivet with inner diameter size of 0.4mm, press machine and 0.4mm tool sets (male and female molds) should be purchased separately

male and female dies should be changed according to the choice of rivet to be punched into the copper plate.

for example, for copper rivet with 0.4mm inner diameter size, 0.4mm tool set should be installed on the press end.

it is suggested that the hole diameter to be opened on the circuit board is 0.1mm larger than the rivet outer wall diameter.

for example, a 0.7mm drill bit is suitable for a rivet with an outer wall diameter of 0.6mm.

here are the inside and outside diameter measurements for the rivets. Inner diameter: 0.4mm + 0.6mm + 0.8mm + 1.0mm

outer diameter: 0.6mm + 0.8mm + 1.0mm + 1.4mm

this is the size of the inner diameter of 0.4 mm. It is the price for a box of 1000 pieces.

made in germany.
