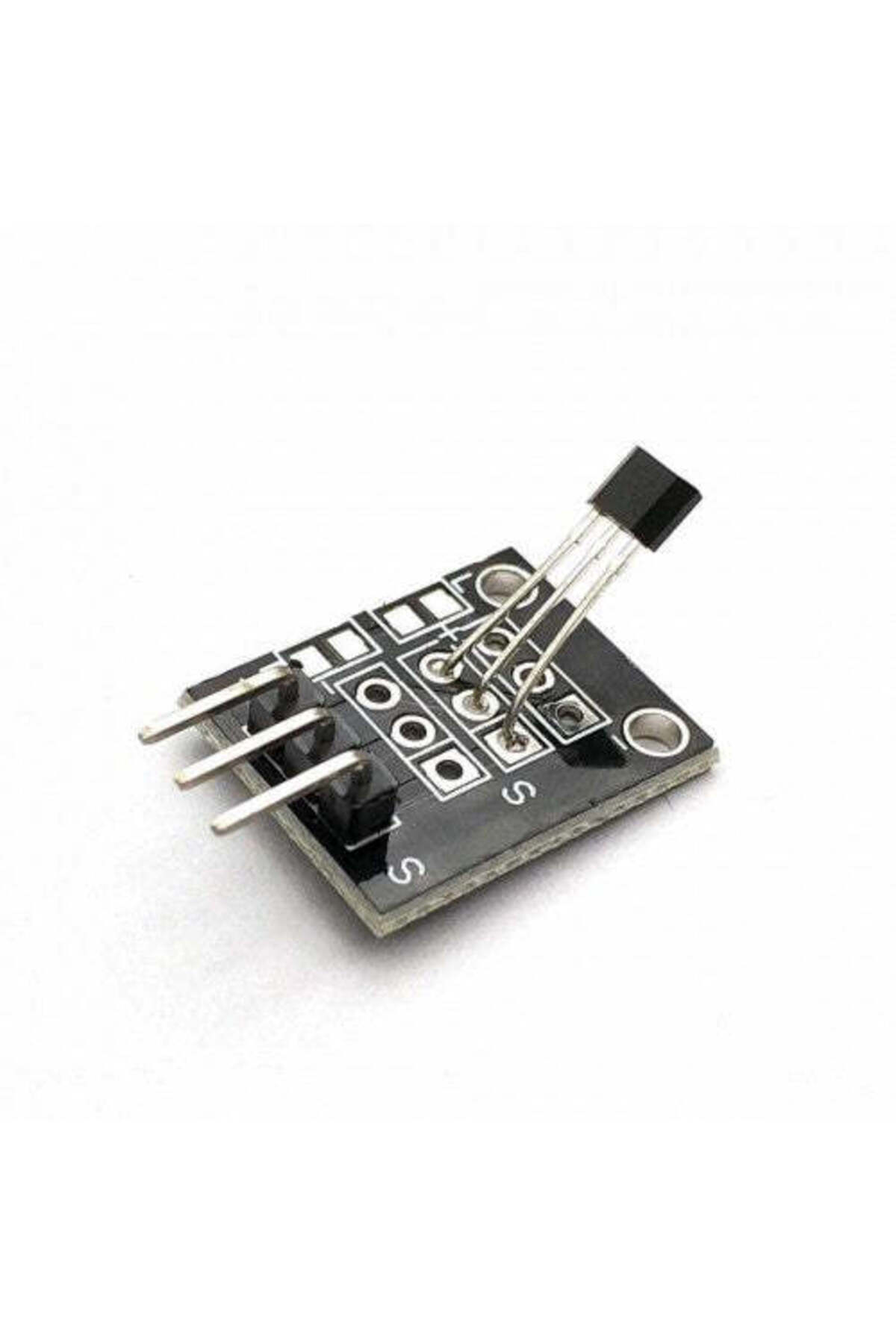

Generic وحدة استشعار مغناطيسية بتأثير هول 2C16 طراز KY-035

Reverse voltage protection, Voltage regulators, Temperature compensation circuit, Hall-voltage generator, Signal amplifier, Compatible with Arduino Raspberry Pi and ESP32, Miniature Construction, Low Power Consumption (3.5mA at VCC=5V), Energy Efficiency, Single Current Sourcing Output, Linear Output, Circuit Design Flexibility, Low Noise Output, Stable and Accurate Output, Wide Temperature Range (-40oC to 85oC), Responds to Positive or Negative Gauss

Instructions for Use: Connect the KY-035 module to an Arduino Uno board as follows: Component Pin (-) to Arduino GND, Middle Pin to Arduino +5V, and Pin S to Arduino A0. Upload the provided Arduino sketch (KY-035.ino) to your Arduino board. To test, apply power to the Arduino Uno and open the Serial Monitor. The analog value (0-128 for negative magnetic polarity, 129-255 for positive magnetic polarity) will be displayed.
