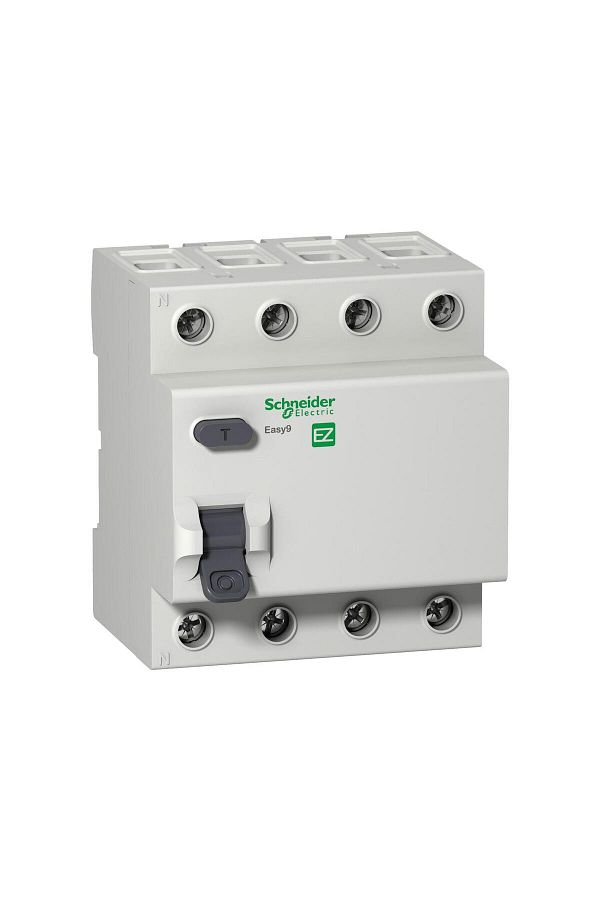

Schneider Easy9 Ez9r63463 - Ac Type Residual Current Relay (4X63A, 300MA)

-16%

138.19
AED
164.96

(VAT included)

Only 1 left

Çodur Elektrik Aydınlatma
1.1K followers
Seller's store
Product details
Schneider electric automatic fuse easy9 series schneider electric easy9 automatically cuts off the current connected to the automatic fuses (mcb) in case of a short circuit or when your system is overloaded, thus your electrical systems are reliably protected against damage caused by high current. Automatic fuses are devices that protect us from high current in our homes or workplaces, limiting excessive current.
for different infrastructures, you can find the most accurate automatic fuse from our different varieties.
they are current-limiting overcurrent protection devices.
Schneider easy9 ez9r63463 ac type leakage current relay (4x63a, 300ma) technical specifications:- 4p pole definition,- left neutral position,- 63a [in] nominal current,- ac network type,- 300ma ground leakage sensitivity,- momentary, ground leakage protection time delay,- type ac ground leakage protection class,- 50hz network frequency,- 400v ac 50hz [ue] nominal operating voltage,- voltage independent residual current opening technology,- 500a hominal switching and closing capacity,- easy9 mcb: 3000a 40a nominal condition short circuit current,- 440v ac [ui] nominal insulation voltage,- 4 kv [uimp] nominal pulse withstanding voltage,- 250a breaking current,- din rail mounting method,- dimensions 82mm (h) x 72mm (w) x 72mm (d),- 375 gr product weight,- 5000 cycles mechanical durability,- ac: 200 ° C relative humidity,- (-5 ° C ….
60 ° C) ambient temperature for operation, - (-40 ° C ….
85 ° C) ambient temperature for storage, - under 18 months manufacturer's warranty.
Additional info
The selling price on Trendyol already includes the export-related costs.
A maximum of 3 units of this product can be ordered. Trendyol reserves the right to cancel orders over 3 units.
Origin: CN
Barcode No: 3606480589874
