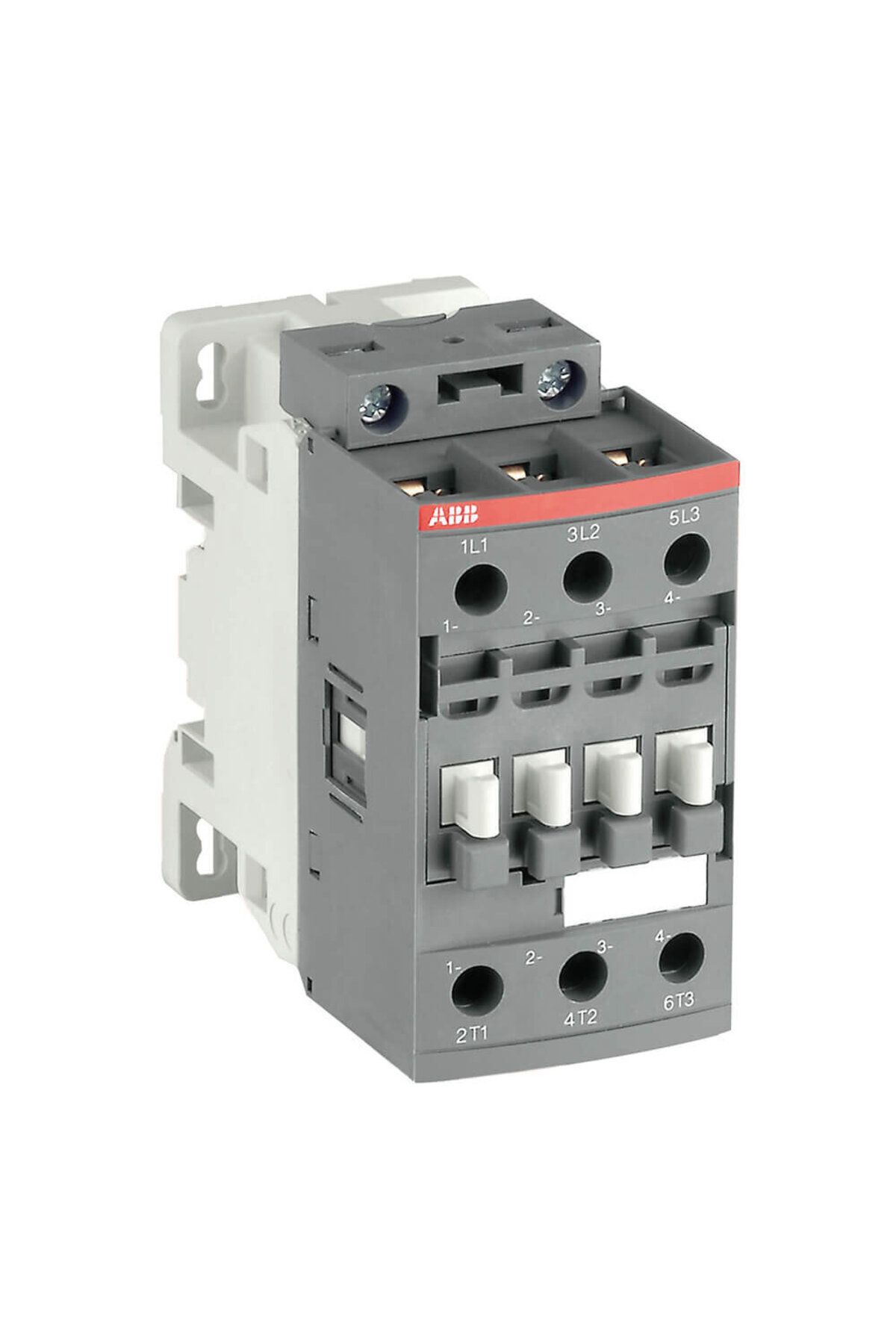

ABB Af09-30-01 9A 1Nc Contactor - 1Sbl 137001 R1301 Model

General information: extended product type: af09-30-01-13 product id: 1sbl137001r1301 - 3471523110137 catalog description: af09-30-01-13 100-250v50/60hz-dc contactor long description: af09-30-01-13 is a 3-pole - 690 v iec or 600 ul contactor, with 1 internal auxiliary contact and screw terminal, controlling motors up to 4 kw / 400 v ac (ac-3) or 5 hp / power. Switching power circuits general use up to 480 v ul and 25 a (ac-1) or 25 a ul. Thanks to the af technology, the contactor has a wide range of control voltage (100-250 v 50/60 hz and dc), manages large control voltage changes, reduces panel energy consumption and ensures different operations in unstable networks. In addition, the built-in surge protection provides a compact solution. Af contactors have a block-type design, can be easily expanded by additional auxiliary contact blocks and a wide range of additional accessories. Dimensions: product net width: 45mm product net depth / length: 77 mm product net height: 86mm product net weight: 0.27 kilos
