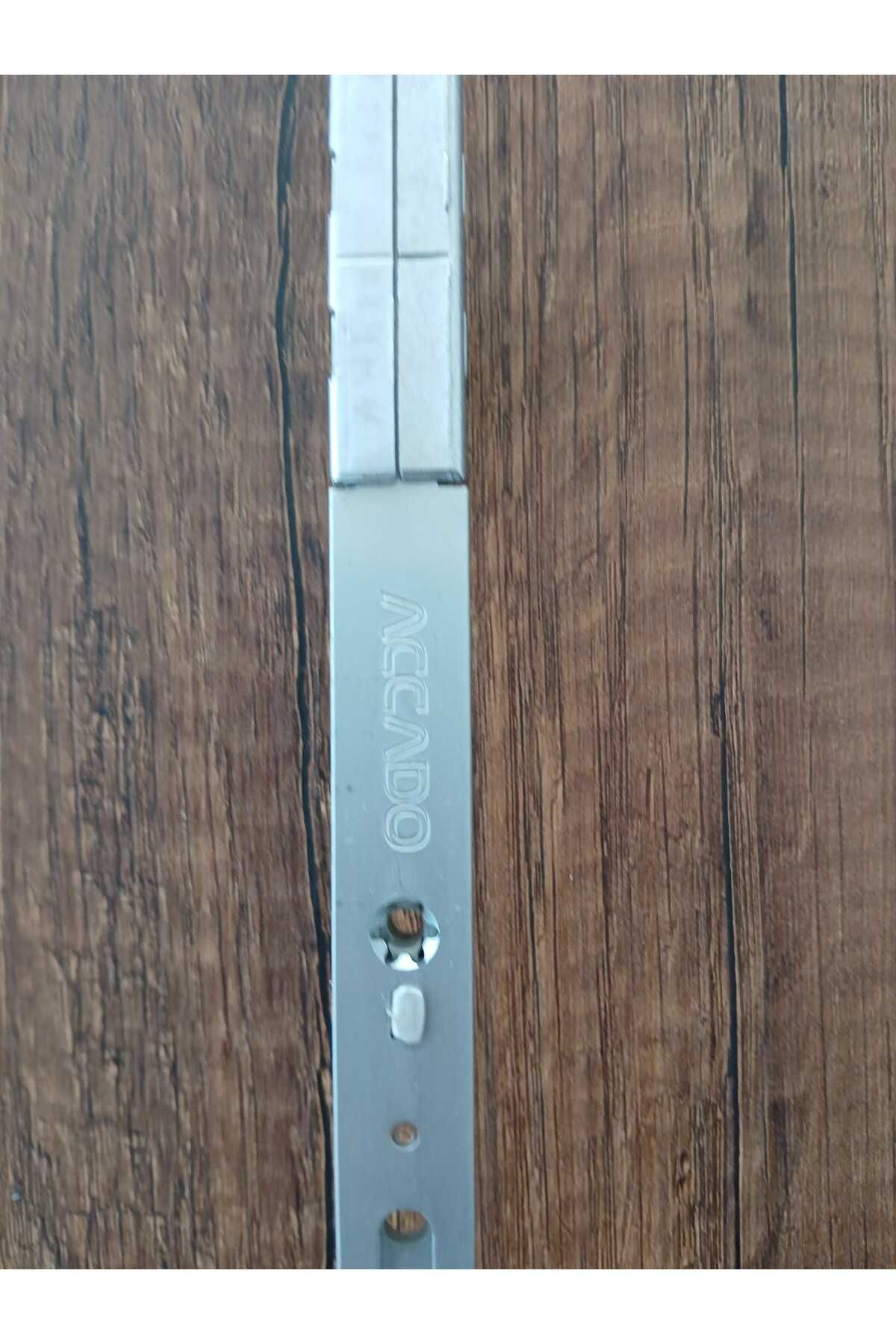

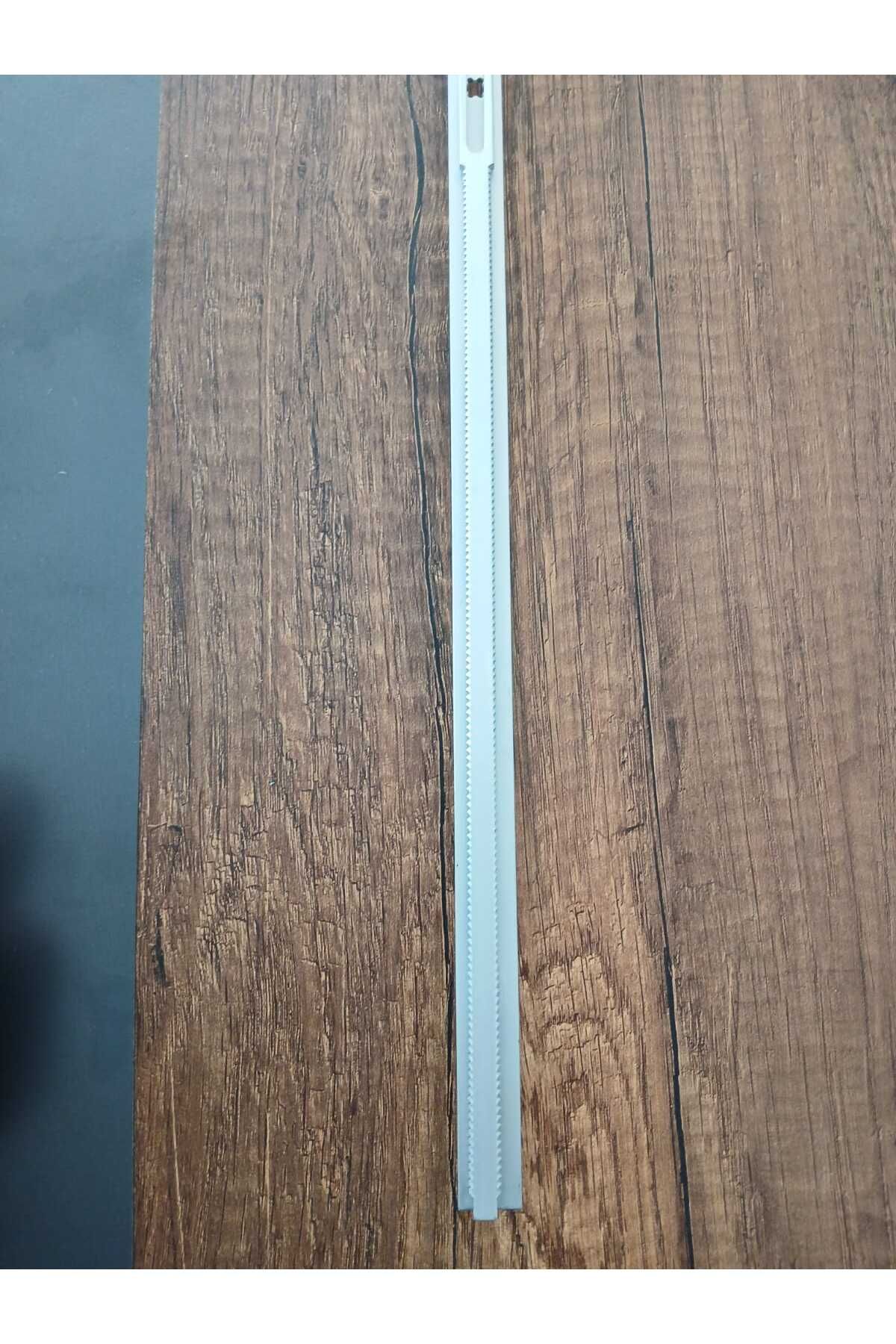

accado 15 mm Hub 1700-2200 Double Opening Spanish (Must Read Description)

The product is only suitable for accado brand dual opening systems.

therefore, if the brand of the double opening in your window is not accado, this product will not be suitable for your window.

if the length of your window is between 170 cm and 220 cm, this product is suitable.

if the length of your window is not between 170 cm and 220 cm, this product is not suitable. Although it is suitable, 1700-2200 mm may seem long for your window as it is the standard for spanish windows. It will be long from the parts that are long (it will be long from both ends).

). To give an example

let's say your window is 166 cm long.

this product is not suitable . You can bring the old ispanyolet so that the hubs are side by side and perform the cutting process, or you can fit the ispanyolet into the window channel first (fit the hub part first). Afterwards, you can determine the long parts from both ends with the help of a pencil and cut them with a jet stone.

or you can cut it with another tool if you wish.

there is a crush on the fixed lama to protect the serrated connection of the spanish and to reduce the friction of the fixed and movable lamas.

one-piece eccentric locking pin is used to achieve the theoretical seal printing in practice.

in order to be able to adjust the seal pressure, the locking pin has an adjustment possibility of ±0.8, i.e. 1.6mm in total. Thanks to the plastic clip, the spanish bolt does not come back after being placed on the channel, thus it can be easily screwed.

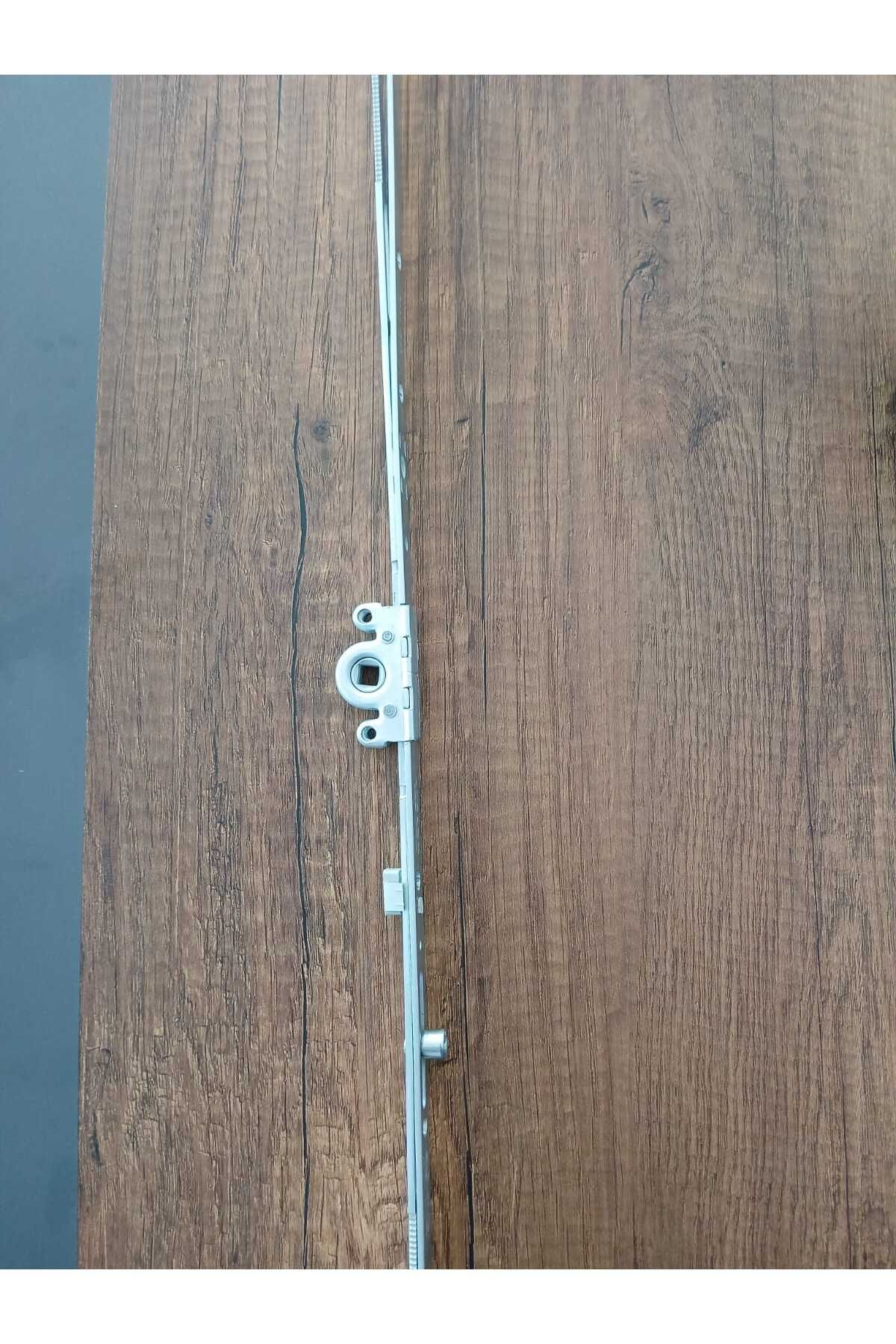

long life use is aimed at thanks to the steel gear in the spanishlet hub mechanism.

there is a plastic centering pin to ensure that the ispanyol is in the center position during shipment and assembly to the joinery.
