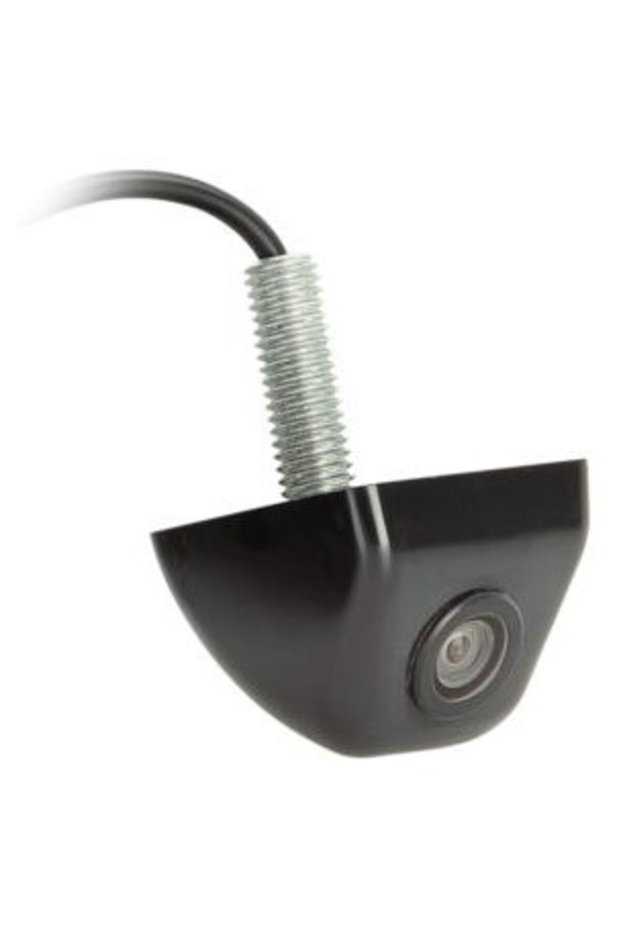

ACV 771000-6022 Universal reversing camera

Product description

The universal rear camera with guide lines is suitable for continuous operation of acv cameras.

camera operating voltage: +3v.

camera supply: +12v / +24v.

connection without a +3v voltage converter (in the delivery package) will damage the camera.

guide lines are enabled / disabled.

product features: design: plastic.

color: black.

guide lines (with jumper).

image sensor: 1/4″ cmos.

tv system: ntsc.

effective pixels: 682 x 496. lens: 1.9mm / f 2.0. minimum lux: 0.3 lux.

resolution: 480 tv lines.

lens angle: diagonal 170°.

viewing angle: horizontal 120° / vertical 85° +5°.

ip rating: ip68. terminal: 4-pin acv-system connector (m) ø5..
