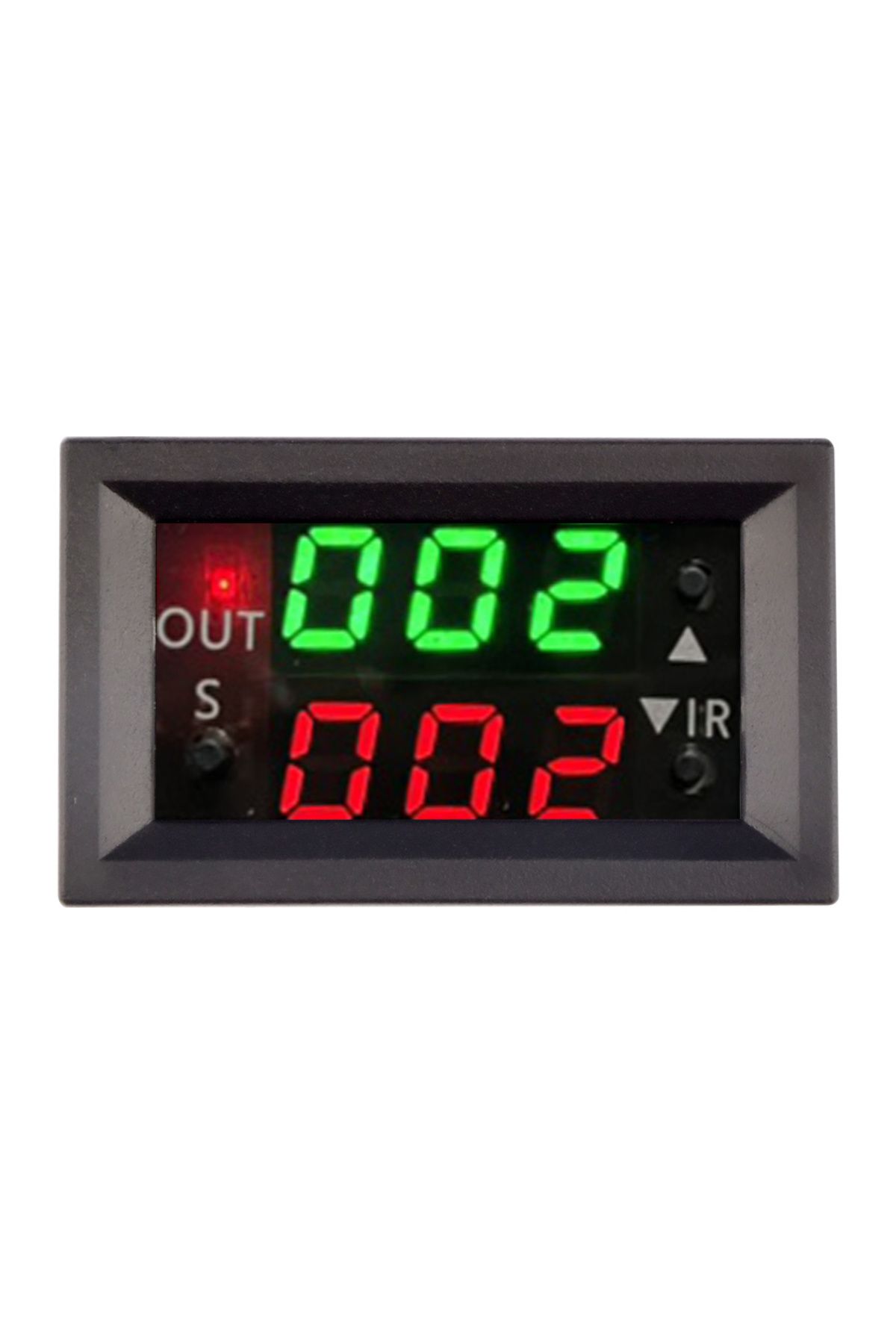

T2401 12V Delay Double Display Digital Time Relay Module Digital Time Delay Relay LED Display Cycle Timer Control Switch Module
Description:
1: Parameter setting is simpler
2: Small and exquisite appearance
3: Direct output type
4: Widely used
5: Timing range: 0~999 (seconds, minutes, hours) Minimum unit: 1 second
Parameter
Product model: T2401-O
Product weight: 30g
Product size: 48X29X34mm
Installation opening: 45.5x26.1mm
Timing range: 0~999 (seconds, minutes, hours) Minimum unit: 1 second
Technical parameters: DC12V 2OA MAX 240W MAX
Working humidity: 35%~85%
Working temperature: - 10~60 ℃
Size unchanged, compatible installation, direct output wiring, convenient green start and red stop setting, convenient appearance patent
Code Menu Introduction
Press and hold the S key for 6 seconds to enter the code menu
Mode setting demonstration
Double-click the S key to enter the parameter setting mode
Safety tips
Output active, connect the load and then power on to avoid short circuit
Package includes:
1pcs x Digital Time Relay Module
