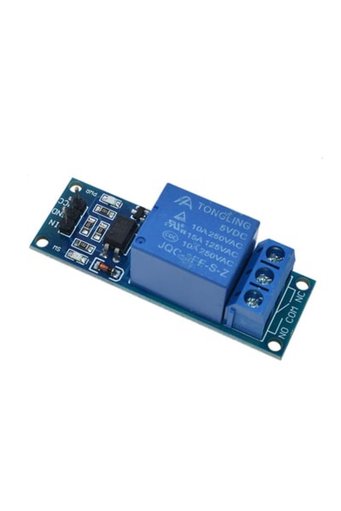

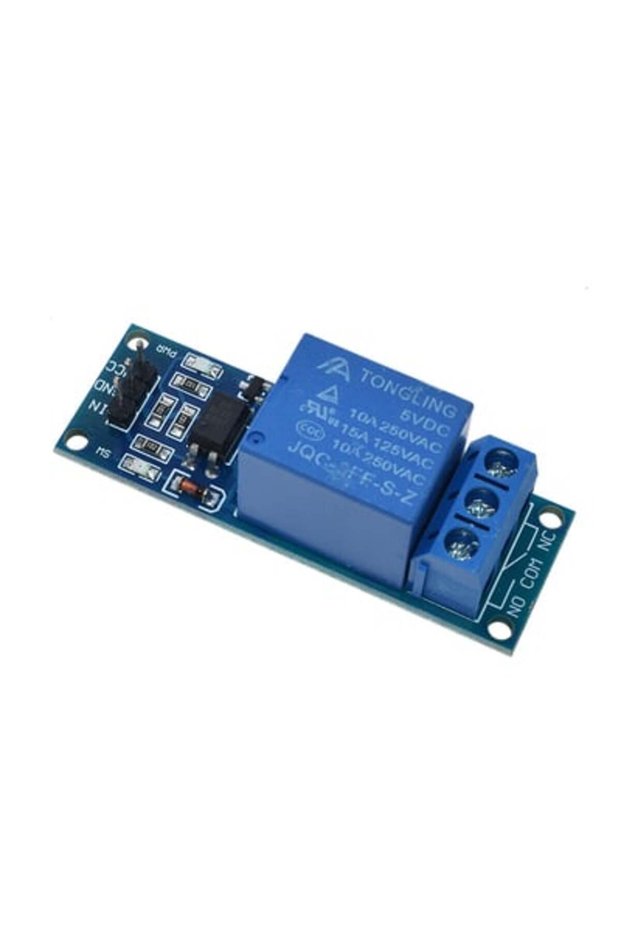

Arduino 5V 1-Relay Module Compatible with - High Level

Product description

5V 1-Channel Relay Module Compatible with Arduino 5V 1-Channel Relay Module with Optocoupler for Controlling Electrical Circuits Using relays, circuits can be turned on, off, and reversed. In principle, a relay consists of a coil with an iron core. When current flows through the coil, a magnetic field is generated, attracting the ferromagnetic armature attached to the end of the coil. This 2-channel 5V relay module with optocouplers is ideal for controlling up to two devices with higher current requirements. Equipped with high-power relays (switching capacity: AC max. 250V / 10A

DC max. 30V / 10A). Sufficient Protection for Circuits The 2-channel relay module is equipped with transistors, diodes, and optocouplers to safely and reliably switch higher loads with low current. The module also features generously sized relays capable of performing numerous switching operations reliably. Optimal Compatibility The relay acts as a switch responding to a signal from Arduino. For this reason, it is frequently used in IoT projects to control lights and other electronic devices. The product is intended for specialists and does not include assembly or usage instructions. Incorrect use of the product may result in loss of ! Product Name 5V 1-Channel Relay Module with Optocoupler Compatible with Arduino Supply Voltage: 5V DC Switched Voltage: Max. 30V DC, Max. 250V AC Max. Contact Current: 10A Package Contents 1x 1-Channel Relay Module
