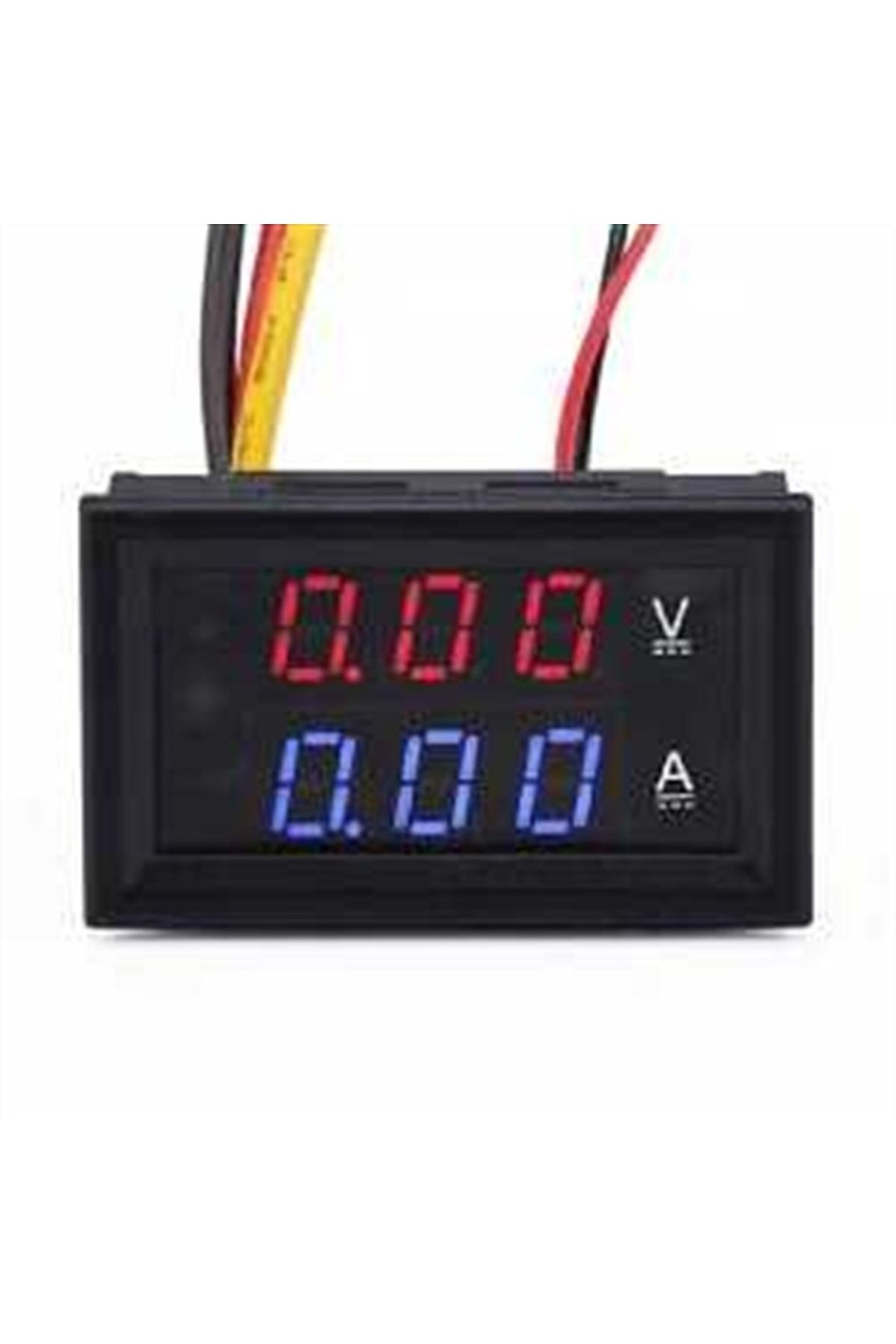

Arduino Digital Ammeter-voltmeter Dc 0-30v 0-10a Dual

Digital ammeter-voltmeter dc 0-30v 0-10a dual dc 4. With this product, which you will connect to your output, working between 5-30v and dc 0-10a values of electronic circuits or devices, you can instantly see both voltage and amperage data, and thus it will be easier for you to calculate the power of your desired electronic device. Additionally, you can measure the voltage of your product, which is connected to the anode and cathode legs, by connecting the cathode of another device you want to measure to the cathode of the digital voltmeter and the anode to the white cable of the digital voltmeter, provided that it is max 30v, and you can see values in the range of 4.5-30v. If you want to see the amperage values of your project, it is possible to see the instantaneous values with the digital ammeter you will connect to its cathode. Specifications: weight : 20g

Source voltage : dc4. 5-30v Display type: digital only Display colors: red+blue Update time: about 500ms

Model: 3bit 0. 28' led digital tube Measuring range :dc 4. 5-30v(voltage)-dc 0. 00-10a(current) Error rate: : ± (1% + 2 words)

Cable length: 15 cm(5 cables) Physical dimensions: 48 x 29 x 26 mm (l*w*h) Operating ambient temperature: -10 ° ~ 65 °
