ASUS Prime X670-p-csm Amd X670 Am5 DDR5 6400 Dp HDMI 3x M2 Usb3.2 Aura RGB 2.5gbit Lan Atx 5x P

Stock no: 76641 warranty period: 24 socket type: am5 chipset: x670 form factor: atx memory type: ddr5 internal graphics: available processor: amd socket am5 for amd ryzen ™ 7000 series desktop processors* chipset: amd x670 chipset memory: 4 x dimm, max. 128gb, ddr5 6400+(oc) 6200(oc)/ 6000(oc)/ 5800(oc)/ 5600(oc) 5400(oc)/ 5200/ 5000/ 4800, ecc and non-ecc, un-buffered memory* dual channel memory architecture supports amd extended profiles for overclocking (expo) ™ ) optimem ii internal graphics:1 x displayport 1 x hdmi ® Port expansion slots:amd ryzen ™ 7000 series desktop processors 1 x pcie 4.0 x16 slot (supports x16 mode) amd x670 chipset 2 x pcie 4.0 x16 slots (supports x4 mode) 1 x pcie 3.0 x1 slot** * please check the pcie bifurcation table at . The pcie 3.0 x1 slot shares bandwidth with the sata6g_3/4 ports.

when a device is installed on the pcie 3.0 x1 slot, the sata6g_3/4 ports cannot be used.

Audio support: realtek 7. 1 surround sound high definition audio codec* - supports: jack-detection, multi-streaming, front panel jack-retasking - supports up to 24-bit/192 khz playback audio features - audio shielding - premium audio capacitors - dedicated audio pcb layers * a chassis with an hd audio module in the front panel is required to support 7. 1 surround sound audio output. Lan: 1 x realtek 2.5gb ethernet usb ports: rear usb (total 10 ports) 1 x usb 3.2 gen 2x2 port (1 x usb type-c) ® 3 x usb 3.2 gen 2 ports (3 x type-a) 4 x usb 3.2 gen 1 ports (4 x type-a) 2 x usb 2.0 ports (2 x type-a) front usb (total 9 ports) 1 x usb 3.2 gen 1 connector (supports usb type-c) ® 2 x usb 3.2 gen 1 headers support additional 4 usb 3.2 gen 1 ports 2 x usb 2.0 headers support additional 4 usb 2.0 ports storage interface: total supports 3 x m.2 slots and 6 x sata 6gb/s ports* amd ryzen ™ 7000 series desktop processors m. 2_1 slot (key m), type 2242/2260/2280 (supports pcie 5. 0 x4 mode) m. 2_2 slots (key m), type 2242/2260/2280/22110 (supports pcie 4. 0 x4 mode) amd x670 chipset m. 2_3 slots (key m), type 2242/2260/2280 (supports pcie 4. 0 x4 mode) 6 x sata 6gb/s ports** * amd raidxpert2 technology supports both nvme raid 0/1/10 and sata raid 0/1/10. The pcie 3.0 x1 slot shares bandwidth with the sata6g_3/4 ports.

when a device is installed on the pcie 3.0 x1 slot, the sata6g_3/4 ports cannot be used.

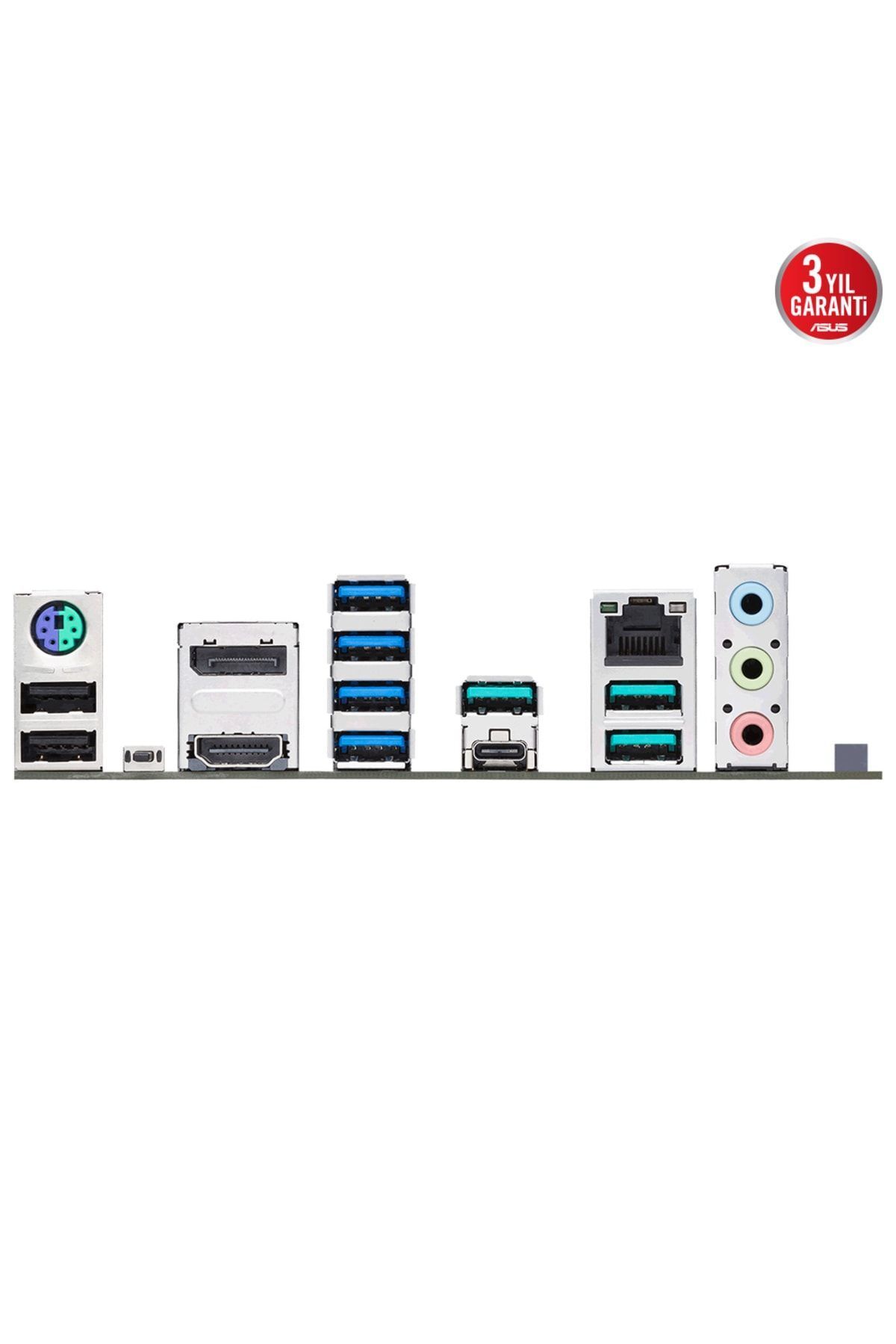

back input/output ports:1 x usb 3.2 gen 2x2 port (1 x usb type-c ® 3 x usb 3.2 gen 2 ports (3 x type-a) 4 x usb 3.2 gen 1 ports (4 x type-a) 2 x usb 2.0 ports (2 x type-a) 1 x displayport 1 x hdmi ® 1 x v-m.2 slot (key e) 1 x realtek 2.5gb ethernet port 3 x audio jacks 1 x bios flashback port ™ Button 1 x ps/2 keyboard/mouse combo port internal input/output ports: fan and cooling related 1 x 4-pin cpu fan header 1 x 4-pin cpu opt fan header 1 x 4-pin aio pump header 3 x 4-pin chassis fan headers power related 1 x 24-pin main power connector 1 x 8-pin +12v power connector 1 x 4-pin +12v power connector storage related 3 x m. 2 slots (key m) 6 x sata 6gb/s ports usb 1 x usb 3. 2 gen 1 connector (supports usb type-c ® ) 2 x usb 3. 2 gen 1 headers support additional 4 usb 3. 2 gen 1 ports 2 x usb 2. 0 headers support additional 4 usb 2. 0 ports miscellaneous 3 x addressable gen 2 headers 2 x aura rgb headers 1 x clear cmos header 1 x com port header 1 x front panel audio header (aafp) 1 x s/pdif out header 1 x spi tpm header (14-1pin) 1 x 20-5 pin system panel header 1 x thunderbolt ™ (usb4 ® ) header os support:windows ® 11, windows ® 10 64-bit form factor: atx form factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) bios: 256 mb flash rom, uefi ami bios
