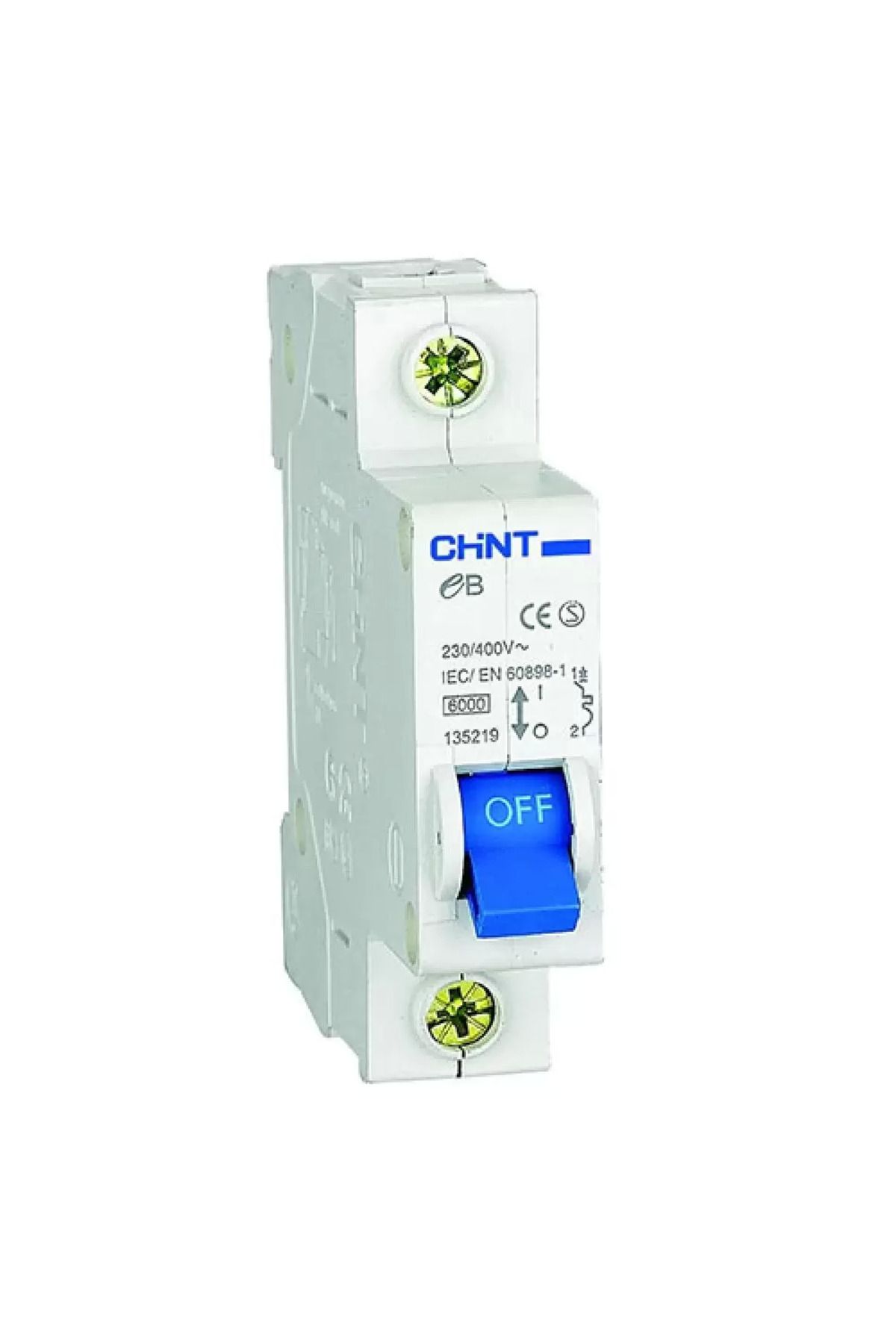

CHİNT ELECTRİC Chint Eb Series 1X25A Type C Automatic Fuse 4.5Ka 186420

Chint eb series 1x25a type c automatic fuse 4.5ka 186420 automatic fuses are used to protect the electrical installation they are connected to against overcurrent and short circuit.

they automatically open the circuit in case of excessive currents above their rated (declared) currents or during any short circuit, thanks to the thermal and magnetic protection feature they possess.

they can also be called automatic fuses, electrical fuse, v automatic, w automatic, miniature fuse. Protecting circuits against short circuit currents is much easier with chint eb series automatic fuses.

with it, protecting against overload currents of circuits, switching and ensuring insulation are other preferential functions of the chint automates.

Technical specificationrated current in25 ampsrated pulse withstanding voltage (1. 2 / 50) rated voltage ue v230/400~240/415 rated breaking capacity ka4.5 ka electrical life4000 insulation voltage ui500 protection degreeip20 number of poles1 pole mechanical life10000 proportional frequency50-60 hz
