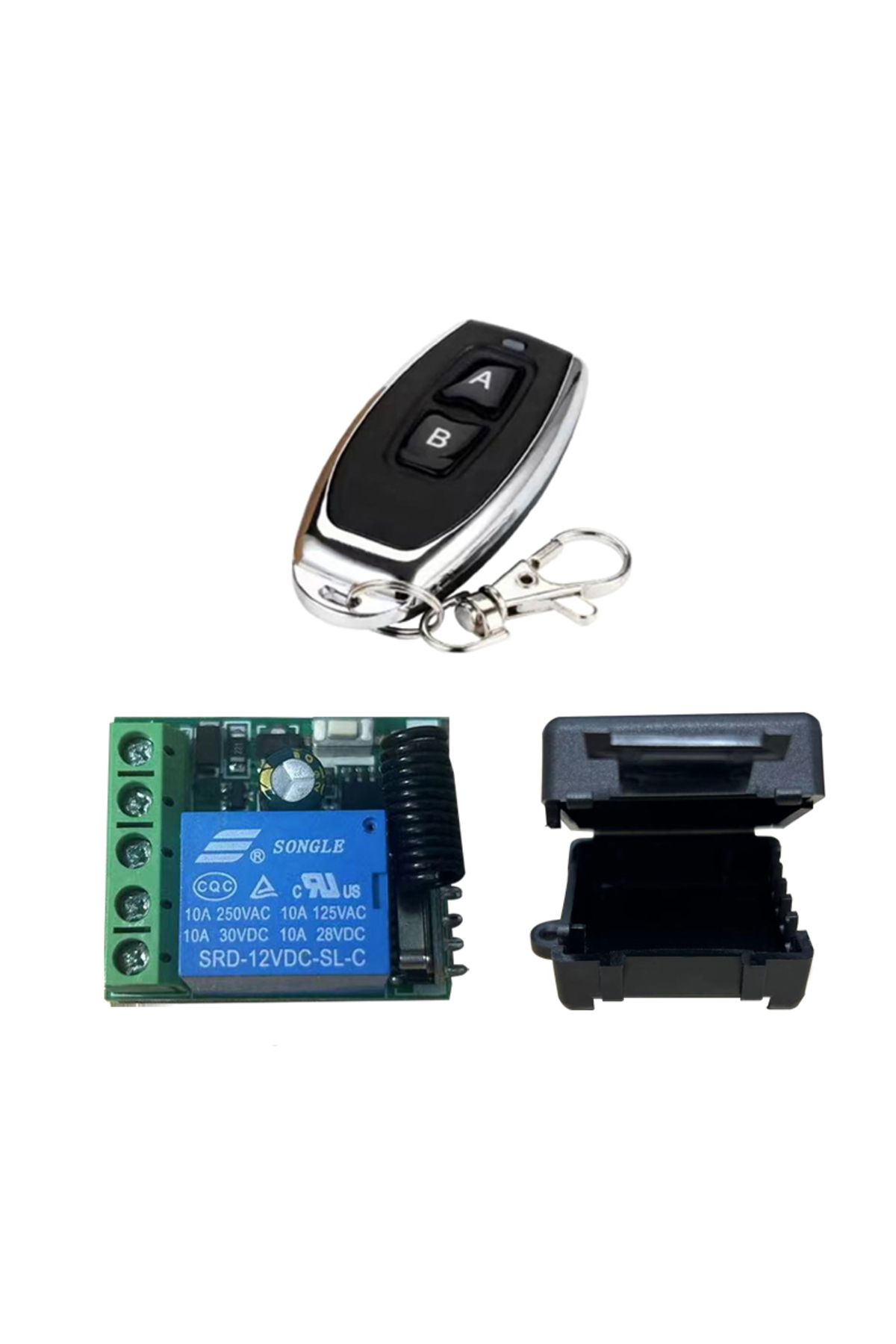

Operation introduction:
About Working Mode:
Momentary:Press the remote button, the relayconnects,release the remote button, the relaydisconnects.
Toggle: Press once the remote button, the relayconnects,press the remote button twice, the relaydisconnects.
Latching:Press the remote button A, the relayconnects,press the remote button B, the relaydisconnect.
Time Delay Mode: Press the remote control button, therelay connects; Start timing when release the remotebutton,the relay disconnect automatically after 5s or10s or 15s.
Clearing the Code:
Press the Learning Button on the receivers for 8 timesthe codes will be cleaned.After cleaning the code, all the remote control cannotwork any more.
Learning the Code:(Momentary)
Press the learning key on the receiver once time, it comes into momentary setting mode.
Wait for a moment, the LED will be off ,it comes into learning state.
Push the remote button, LED indicator on the receiverooard wil fash then come off.
After 3 seconds, the LED indicator will be on again,learning successfully.
Learning the Code:(Toggle)
Press the learning key on the receiver twice time, itcomes into toggle setting mode.
Wait for a moment, the LED will be off ,it comes intoearnina state.
Press the remote button, LED indicator on the receiverboard will flash then come off.
After 3 seconds, the LED indicator will be on again,learning successfully.
Learning the Code:( Latching)
Note: When you choose for latching mode, in order tolearn more remote control, you need to learn twodifferent button, the first time learning is for ON, the second time learning for OFF.
For example: Button A = ON, Button B = OFF
Press the learning key on the receiver triple time, it comes into latching mode
Wait for a moment, the LED indicator on the receiverboard will flash then come off.
Press the remote button A. LED flash for 5 times.
Press the remote button B.LED flash for 5 times
After 3 seconds, the LED indicator will be on again,learning successfully.
A = ON, B = OFF
Learning the Code :(Time Delay Mode)
Press the learning key on the receiver four times, thetime delay for 5 seconds.
Press the learning key on the receiver five times, thetime delay for 10 seconds.
Press the learning key on the receiver six times, thetime delay for 15 seconds.
The LED indicator will beoff . Press the remote button, LED flashes and off.After 3 seconds, the LED indicator will be on againmeans learning successfully.
