Support original US version of NES system, support some NES compatible machines.
Support NES / FC games and FC drive games.
Supports automatic flipping of FC / NES drive games.
Support instant archive and reading
Support FC / NES game gold finger.
FC / NES game archive automatic backup to SD card (no special operation required) ***
The Mapper support can be increased through software upgrade (the system loads the new Mapper file from the SD card)
Support FAT / FAT16 / FAT32 format memory card.
High-speed loading games (usually only 4 ~ 8 seconds to load each game)
.
Hardware introduction:
The main control uses the powerful Cyclone II FPGA chip
2 * 512Kbyte SRAM as PRG and CHR data carrier.
128kbyte game archive chip.
1Mb flash BIOS chip.
The matching level between the voltage transition buffer on the PPU and CPU bus is 5V NES bus and 3.3V EverDrive bus. Far less noise and power consumption than simple resistor buffering

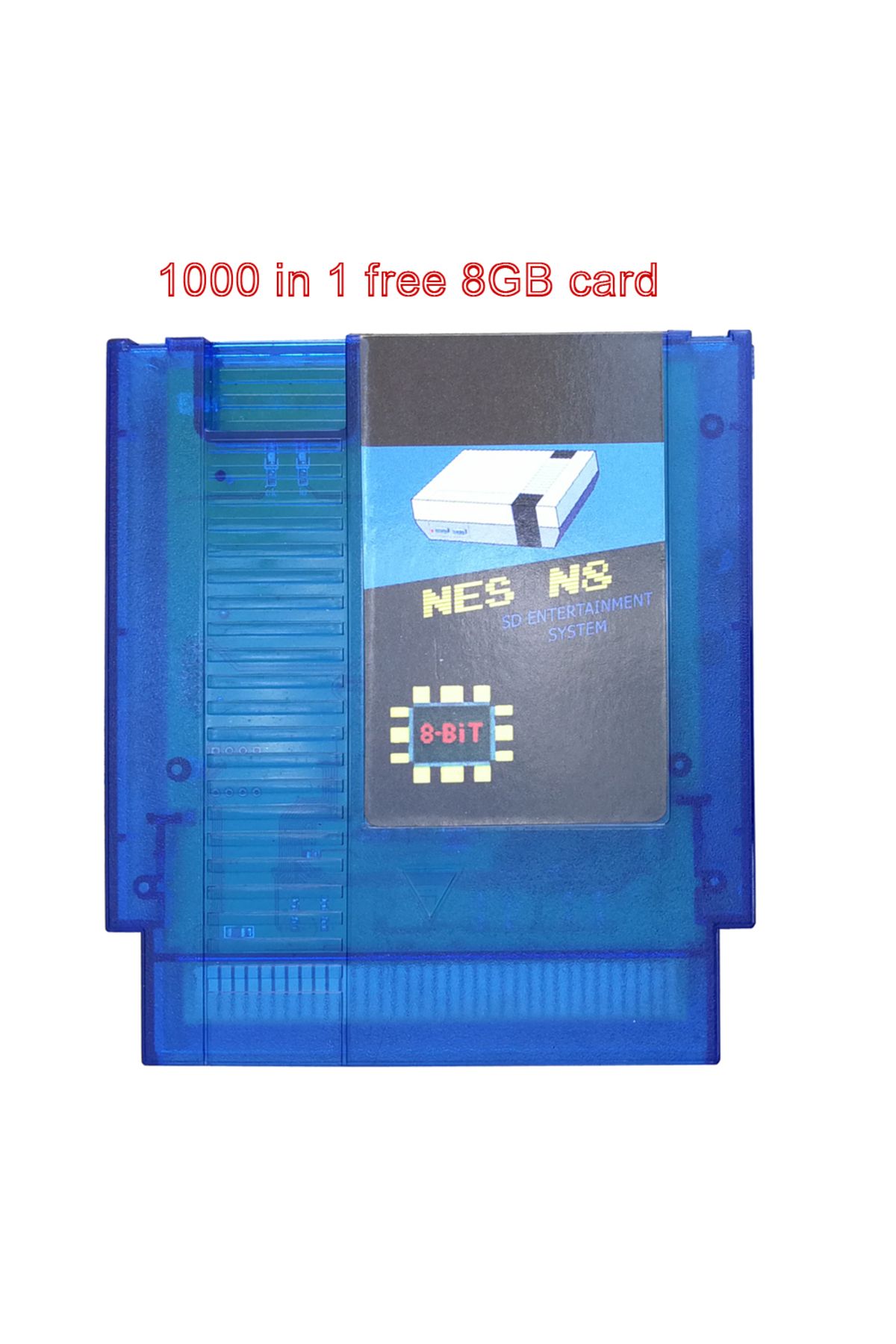

Free giveaway: mass storage game TF card.
* Clone / assembly / modified game consoles need to contact customer service to confirm compatibility.Please note that the memory card can be easily damaged if it is not operated properly. When your memory card does not work, replace the new high-speed memory card with the capacity of 1G-8 GB.Updating firmware is dangerous. It will turn into a brick if you are not careful. Please do not update the firmware.
