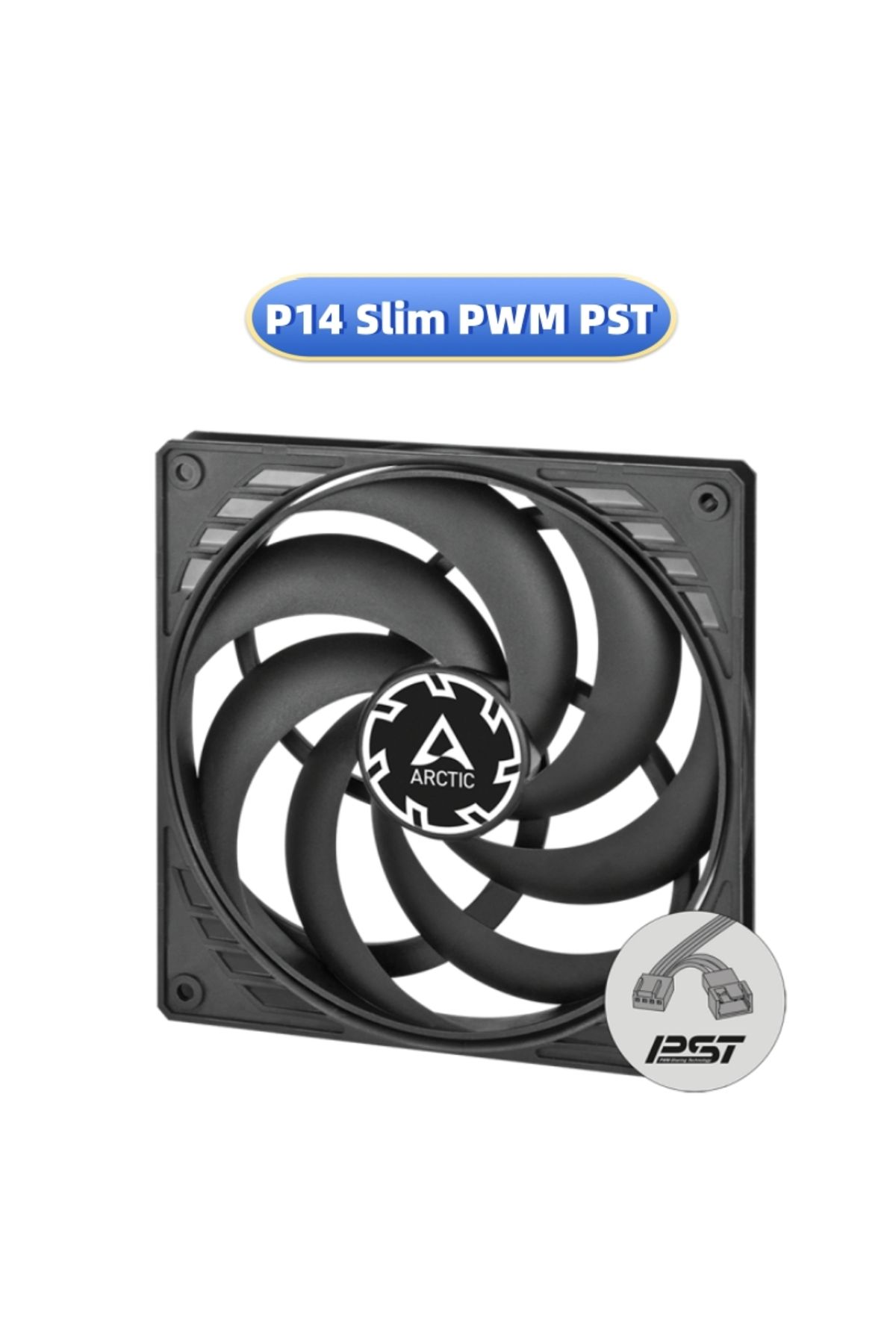

About P14 Slim PWM PST
OPTIMISED FOR STATIC PRESSURE: Through high static pressure, the fan guarantees efficient cooling, even with increased air resistance. Suitable for use on heat sinks and radiators
STRONG COOLING PERFORMANCE: The performance of the P fans has been noticeably increased through numerous improvements, including upgraded engine technology and a newly developed fan design
150 TO 1800 RPM: Thanks to the 4-pin connector, the fan speed can be controlled via PWM PST. This keeps noise to a minimum while at the same time ensuring maximum cooling performance
LOW INSTALLATION HEIGHT: The P14 Slim PWM PST has an installation height of only 16 mm, making it suitable for small form factor cases & for installations for which a 25 mm fan does not fit
TECHNICAL DATA: Fan speed: 150 1800 rpm (0 rpm <5 %), Airflow: 52.00 cfm | 88.35 m /h, Noise Level: 0.3 Sone, Static pressure: 1.55 mmH O, Pin: 4-pin
Ideal for Small Spaces
Unlike standard 140 mm case fans with a thickness of 27 mm, the P14 Slim PWM PST has a mounting depth of only 16 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included.
Optimised for High Static Pressure
Because the fan design of the P14 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow even with increased air resistance. This makes the P14 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.
Maximum Quietness, Minimum Vibration
The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.
150 to 1800 rpm Controlled via PWM PST
With a wide speed range and innovative PWM Sharing Technology (PST), the P14 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.
High-Quality Sleeve Bearing
Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.
0dB Mode Zero rpm
The speed of the P14 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.
Versatile Use
The P14 Slim PWM PST allows customisable installation in the case. It can both suck in cool air as an Intake fan and push out warm air as an Exhaust fan. The fan also offers both push and pull installation options on the radiator.
