Choice Unit Pahub V2.1 M5stack Pahub V2.1 Unit I2c Multiplexer Iot Development Kit I2c Bus 1 In 6 Expansion

Special Deals

60.2348.18AED

Payment methods

Shipping & Delivery

Delivery:

28 Jul.

Trendyol's commitments

Shopping security

Secure payment

Privacy protection

Safe delivery

Privacy protection

20 AED coupon for late delivery

Free returns

Easy and free return in 15 days.

Big Save Store

12.8K followers

Seller's store

Product information

Other Features: *Unit PaHub v2.1

How to use

Instructions for Use/Warnings: *Unit PaHub v2.1

Product features

Bundle:Unit PaHub v2.1

M5Stack PaHub v2.1 Unit I2C Multiplexer

Product Features

I2C HY2.0-4P PORTA expansion
Allows multiple-unit nesting
6 extended Grove ports
DIP switch for I2C address selection
LEGO-compatible holes

Applications

I2C expansion

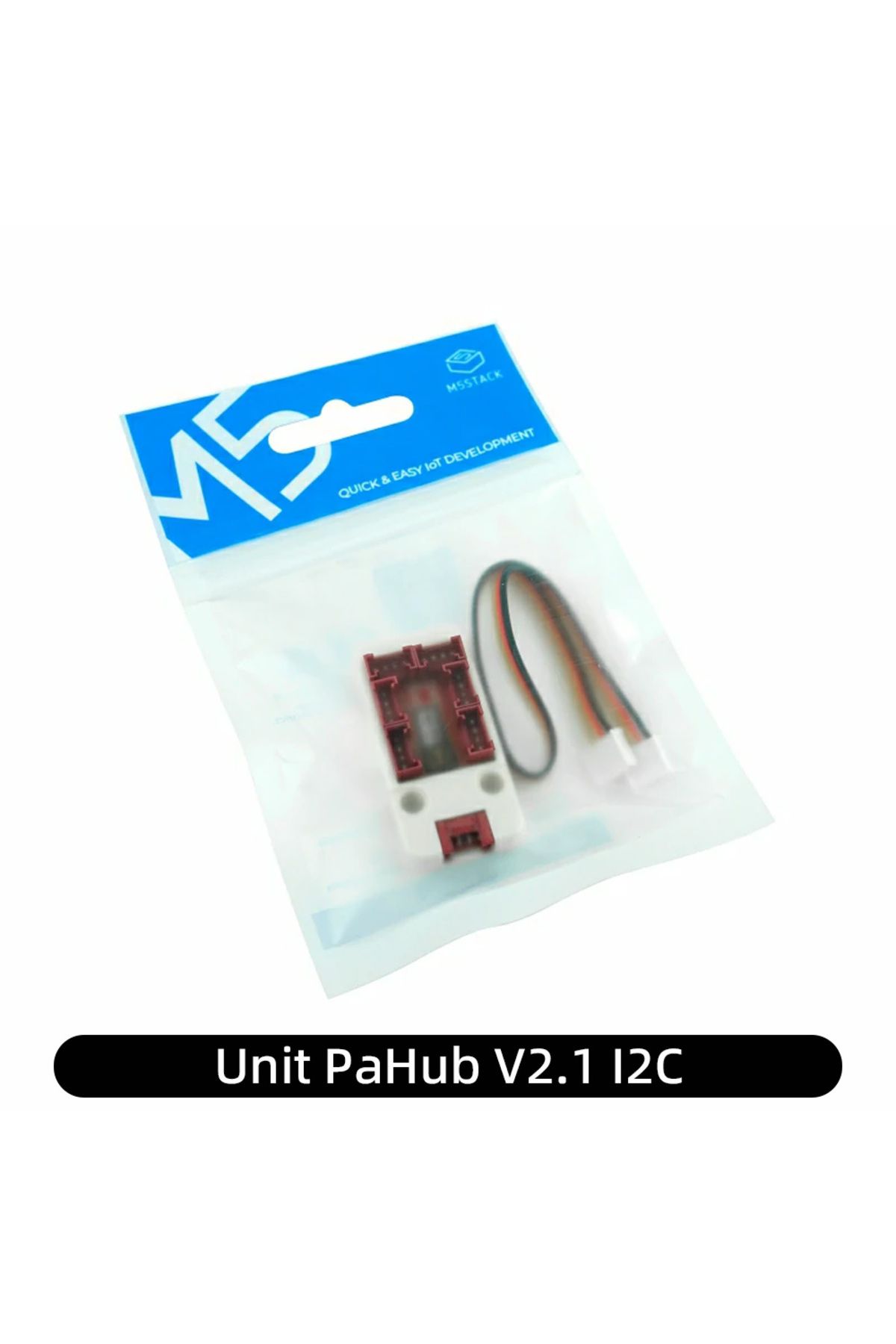

Package Includes

1x Unit PaHub v2.1

1x HY2.0-4P cable (20cm)

Specification

Specification Value

I2C Multiplexer IC: PCA9548AP

Communication: I2C:0x70~0x77 (Default: 0x70, adjustable via DIP switch)

Operating Temperature: 0-40°C

Product Dimensions: 48*24*12mm

Packaging Dimensions: 136*92*12mm

Product Weight: 7.1g

Packaging Weight: 12.9g

Product Comparison

Product details

Supports device address modification via DIP switch, allowing users to adjust the I2C address by configuring the corresponding truth table settings.

Schematics

Module Size

PinMap

Product Description

Unit PaHub v2.1 is an I2C multiplexer unit utilizing the PCA9548AP chip, capable of expanding a single I2C interface into six channels. By selecting different channels, it allows multiple devices with the same or different I2C addresses to coexist on the same I2C bus (switching via channel polling). The module features an onboard DIP switch for easy adjustment of the Unit PaHub v2.1's I2C address, supporting multiple-unit cascading to connect more I2C devices. Compared to its predecessor, it offers greater flexibility and scalability in parallel I2C device usage scenarios. This product is ideal for applications requiring simultaneous use of multiple I2C devices.
