Bundle:USB BASIC

Smart Power Switch for Desktop Computer

-------------------------------

ATTENTION:

1. "Tuya PRO Long Zigbee" "Tuya PRO Short Zigbee" must work with Tuya Zigbee Hub, NOT support Zigbee2mqtt.

2. For "Tuya PRO" and "USB PRO", battery is NOT included in package, please buy it yourself. Battery type: CR2032, 1pcs

3. This product only work with desktop computer, NOT work with laptop.

-------------------------------

Features:

1. Easy Installation

Standard PCIe port, work with most destop computer. Install to use, don't need any driver software.

2. App Remote Control

Control your computer on Tuya App anytime any where. Always know the computer status on App.

3. Wifi+Bluetooth (eWeLink Card and Tuya PRO Zigbee Card NOT support)

"Tuya MINI" "USB PRO" "Tuya PRO" Card support wifi and bluetooth connection. When wifi is disconnected, you can still control your PC on Tuya App through bluetooth connection, don't need any setup. (eWeLink Card only support wifi)

4. Voice Control

Work with Alexa Echo, Google Home Assistant, Yandex Alice, easy to control your PC with simple voice command.

5. Timer and Schedule

Set a timer to power on/off, or make a weekly schedule to power on/off the computer, automate your PC.

6. Reset And Force Reset (eWeLink Card NOT support)

Not only "Power on/off" function, it also support "Reset and Force Rest" function, avoid harm to your computer system.

7. Child Lock (only "Tuya PRO" and "USB PRO" support)

Make the PC Button out of function, never worry about sudden shutdown caused by kids or mistaken touch, avoide important date loss.

8. 433RF Remote Control (only "Tuya PRO" and "USB PRO" support)

Hard to reach the computer power button? The "Tuya PRO" card come with a 433 Remote Control, just put it on the table or anywhere you want.

9. Relay Status (only "Tuya PRO" and "USB PRO" support)

You can set the computer to power on or keep power off status, when power up again after power failure.

-------------------------------

Does this product work with my computer?

1. This product only work with Desktop PC, NOT work with laptop.

2. Following are the installation conditions for each card:

eWelink Card: "Power_SW" cable, PCIe port

Tuya Mini, Tuya PRO Card (WIFI OR Zigbee): "Power_SW" cable, "Reset_SW" cable, PCIe port

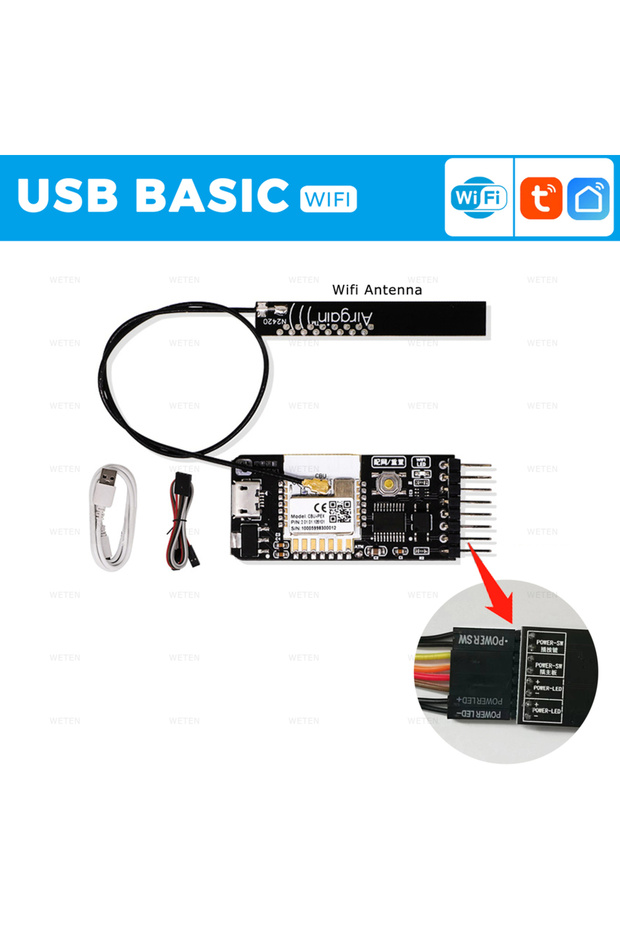

USB BASIC, USB PRO Card: "Power_SW" cable, "Power LED + " cable, "Power LED - " cable,

If you can find above conditions on the computer motherboard, normally it will be compatible. If any questions, pls contact us.

If the computer turn on automatically after it's turned off, here are possible solutions:

1. On computer, go to WINDOWS settings and "Power Options", change the option "When Press on Power button“ to "Shut Down".

2. On computer, go to WINDOWS settings and "Power Options", enable the option "turn on fast startup".
3. On computer, go to BIOS settings / Advanced / APM Configuration, set "ErP Ready" to "Disabled", set "Power on by PCI-E" to "enabled".

4. On computer, go to BIOS setting/ CPU configuration, disable the "Deep sleep" option.
5. If your computer use "Wake on Lan", please close it.

VERY IMPORTANT for USB CARD

"USB Basic" and "USB PRO" card are powered by USB cable. The USB cable can be connected with phone plug or with the USB port on the computer case. If you want to connect the USB cable with computer USB port, please make sure that the computer USB port still has power when computer is in "turne off" status. ( Some USB ports don't have power when computer is in "turn off" status ).

How to connect the 433 Remote Control with "Tuya PRO Card" and "USB PRO Card"

1. In Tuya App, open the "RF study" function in device setting of the card.

2. Short Press on the Remote Control, connection succeeded.

How to disconnect the 433 Remote Control with "Tuya PRO Card" and "USB PRO Card"

Long press the "Reset Button" on computer case, you will hear "di", "di", "di-di", "di-di-di", "di-di-di-di", release the button

When hear "di-di-di-di", then all 433 Remote Control connection is deleted.

Q&A

1. The manual power button on PC case can work or not after installing this card?
Yes, the power button on PC case and App can be used at the same time.

2. Can I use the App to control PC when I'm out for vacation or bussiness?
Yes, the app will work on 2/3/4G mobile network. You can control PC by app anywhere.

3. Can I control PC on App through bluetooth connection when wifi router is offline?
Yes, when wifi is offline, just need to open the phone bluetooth, then you will be able to control the PC on App.(eWeLink card don't support)

4. My desktop computer don't have PCIe port, what can I do?
We also provide USB version, it's for Desktop Computer without PCIe port.

5. Can it support "Voice Control"?
Yes, it support voice control through Alexa, Google Home and Alice.

6. Does it need a gateway or hub?
No, it can be connected with wifi router directly. Don't need any gateway or hub.

7. Can it work with laptop? Do you have similar product for laptop?
No, only for desktop computer. We don't have similar product for laptop for the moment.

8. Can it turn off the computer in sleep mode or in scree lock mode?

No, this smart PC power switch can't turn off computer in sleep mode or in screen lock mode. When you press the power button on the computer case, it also can't turn off the computer. It's decided by the computer system.

9. What's the battery type of 433 Remote Control? Does battery include in package?

Battery type: CR2032, 1pcs. For most countries, the batteries are included in the packag. But for some countries, the batteries are not included in the package due to shipping limits.
