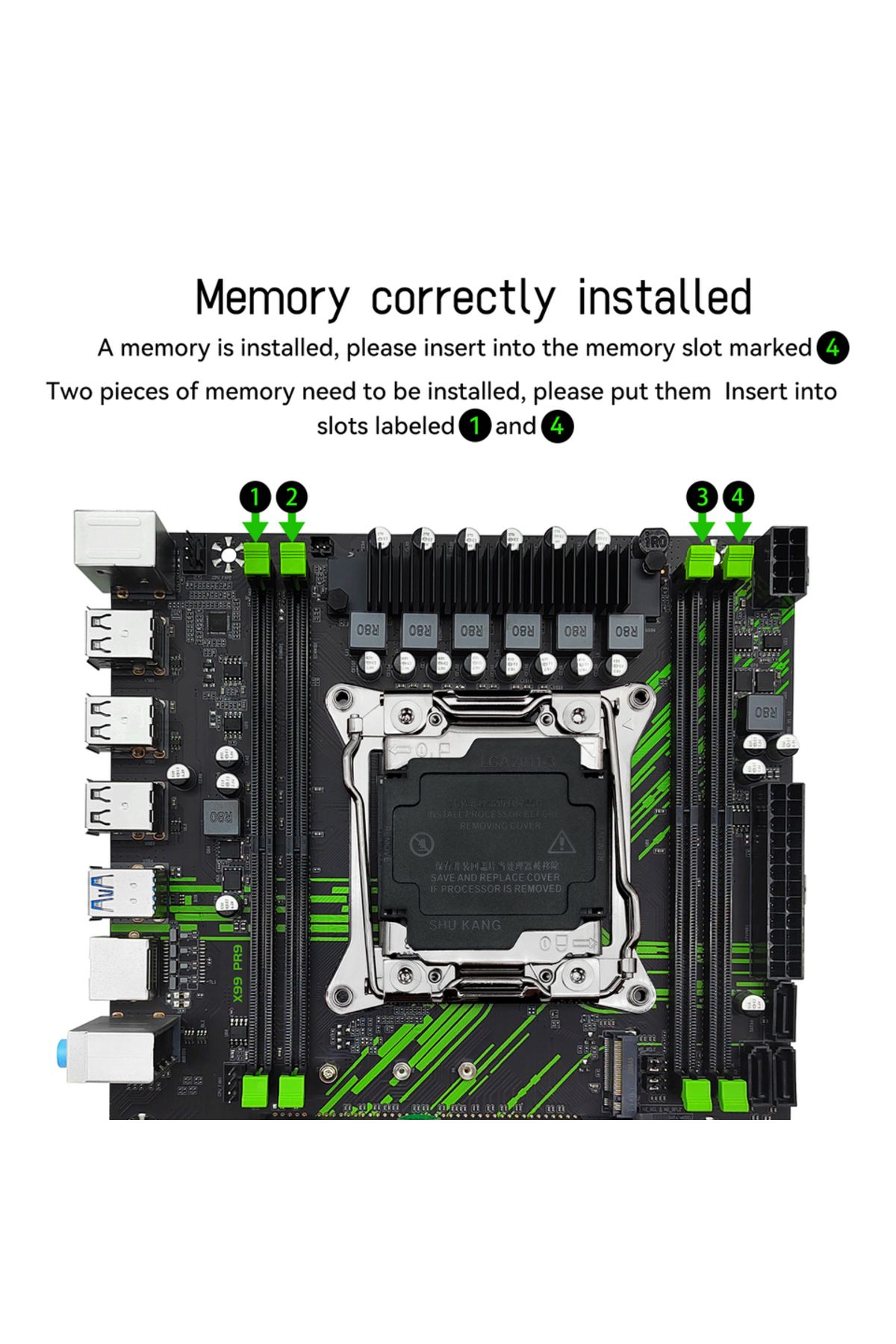

> > It should be noted that the memory slot of this motherboard is correctly installed in the fifth picture. The memory slots (#2/#3) in the middle of the motherboard cannot work independently. A single RAM needs to be installed in slot #1. Two RAM slots need to be prioritized for installation in slot #1 and slot #4."
> > Motherboard information:
Brand :MACHINIST.
Motherboard model :X99 PR9.
Processor: Supports LGA 2011-3 series
Chipset :B85/Q87/C226 Chipset.
(Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 heat sink bracket *1.
All packages are manually tested before sending. If any gifts are missing, it cannot be used as a reason for a refund. Please understand!"
> > Memory:
Technology: Dual-channel DDR4. Supports 2133/2400/2666/3000/3200 MHZ.
The maximum capacity is 128GB (32G × 4).
Memory slot :4 * 288-pin DDR4.
Note #1: Please use international brands such as Samsung, Kingston, Sandisk, and Micron. There are incompatibility issues with other brands.
>> Post I/O:
PS/2: 1 KB interface + 1 MS interface.
USB interface :6 USB2.0 ports; Two USB3.0 ports.
Ethernet: 1 Gigabit network card.
Audio :1 (Mic-in, Line-out, Line-in).
>> Others:
SATA interfaces :2 (SATA2.0), 1 (SATA3.0).
M.2:1 (nvme/sata).
PCIe: 1 PCIe 16x, 1 PCIe 1x.
Overall dimensions :215mm * 185mm.
