CLASSLIGHTS Black Push Button 19mm with Latching and Green LED, ElectroAZ

Product description

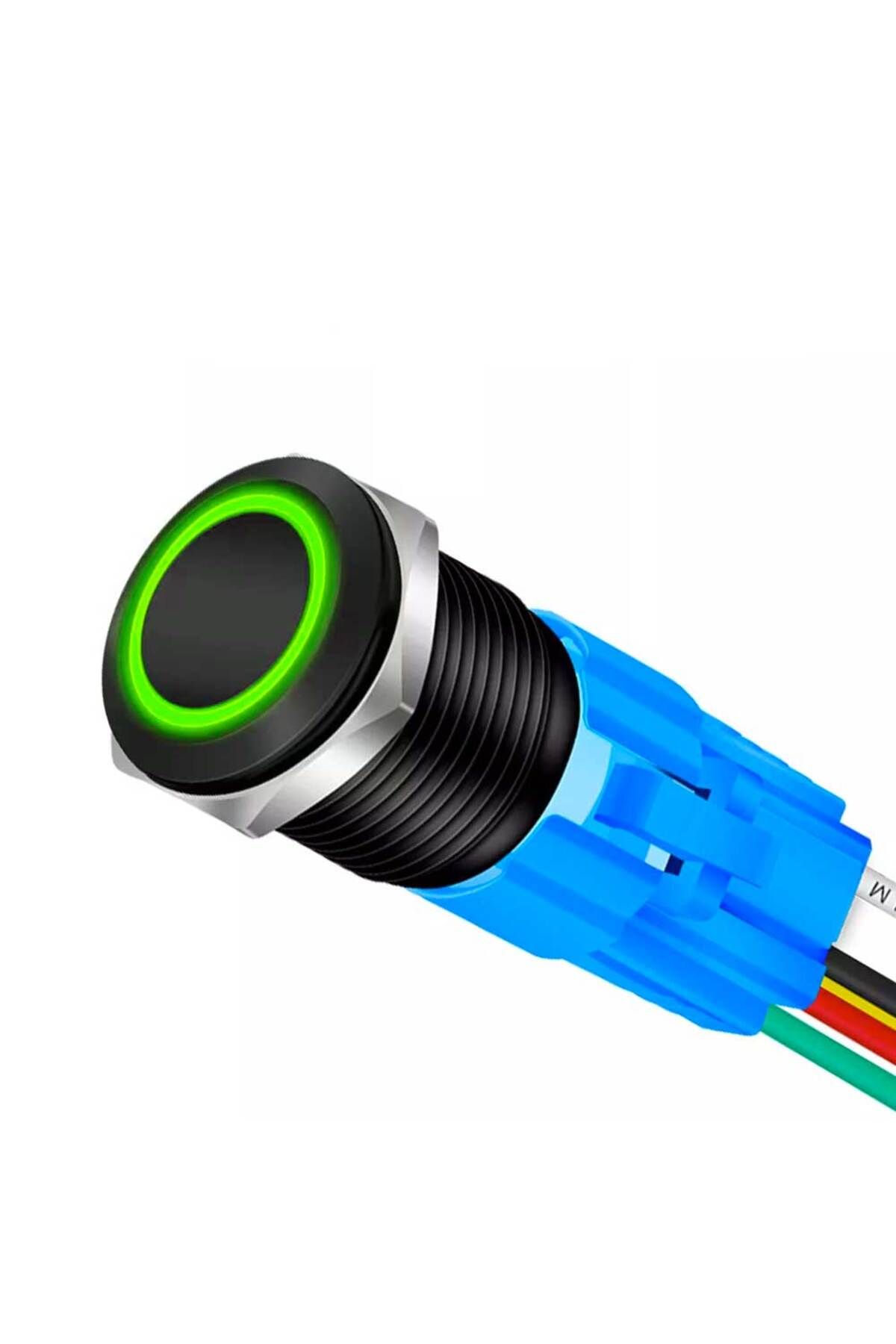

19mm Black Push Button with Latching and Green LED Push button with retention, black metallic, 19mm diameter and Green light, Vandal-proof and waterproof metal button that is powered by 12V voltage.

This push switch has 5 power connection pins and the required mounting diameter is 19mm.

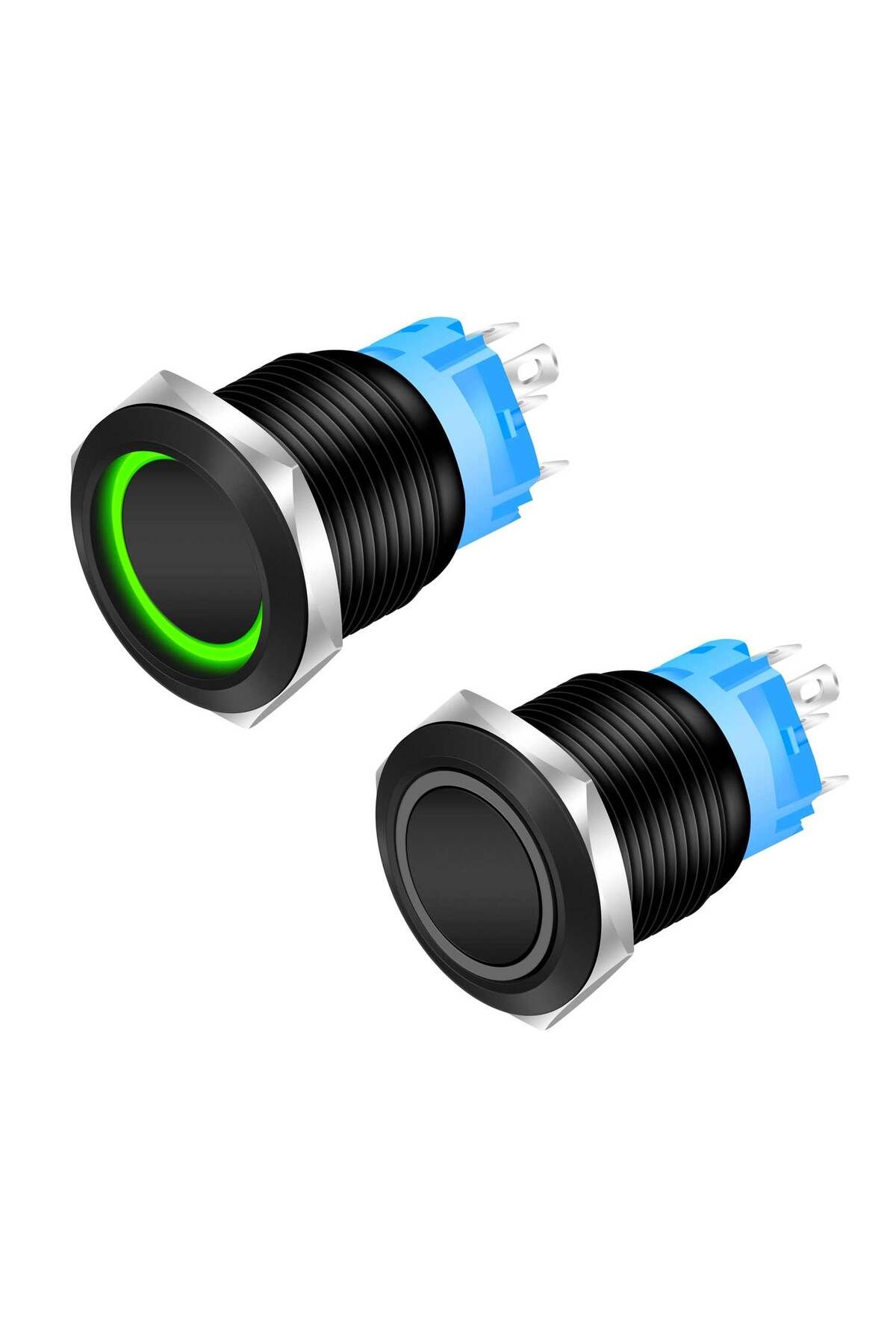

The button is made of aluminum and electrostatically painted in black and has a flat face with a GREEN LED light ring.

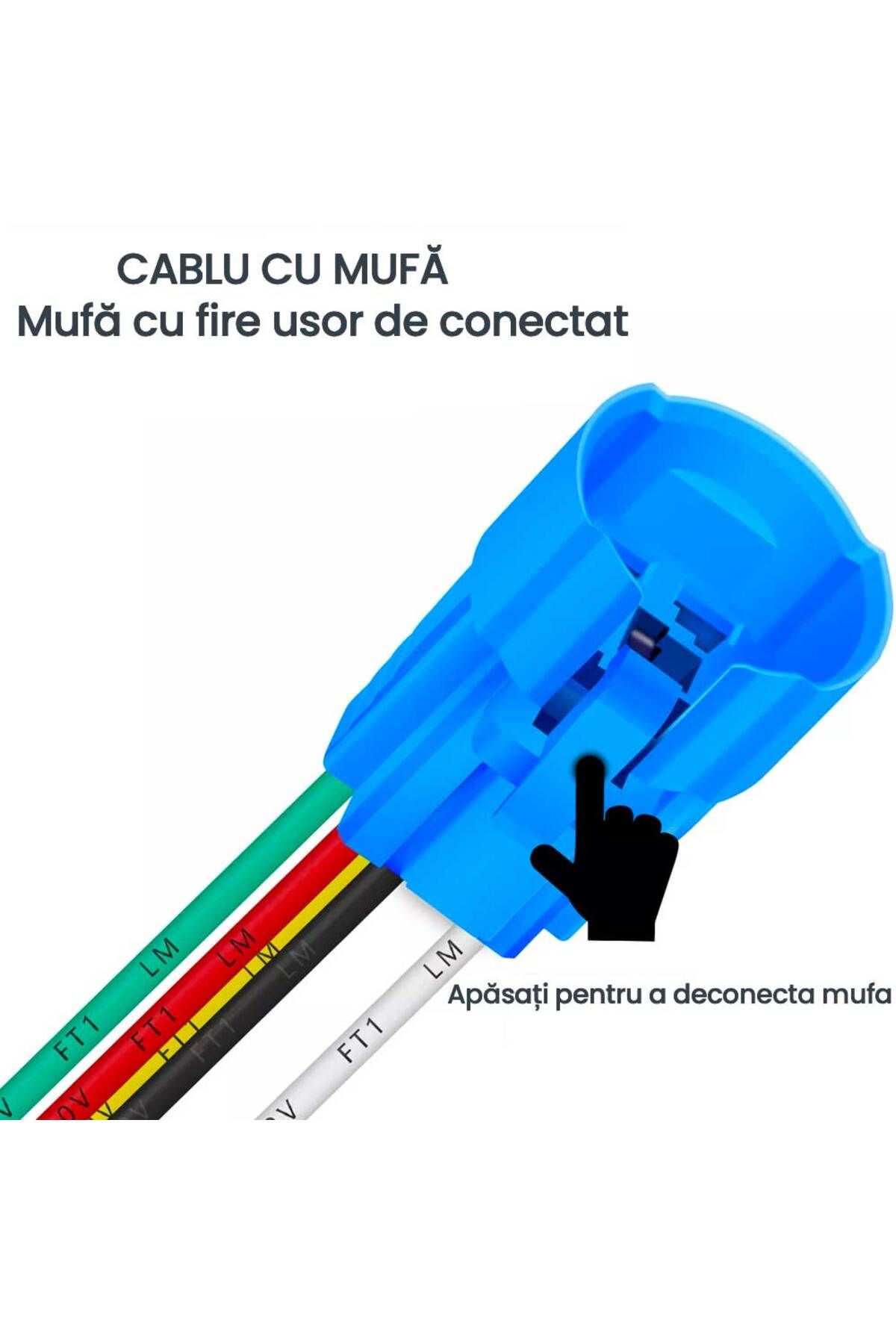

ATTENTION: The plug with wires is not included in the package, if you want it, you can purchase it separately HERE .

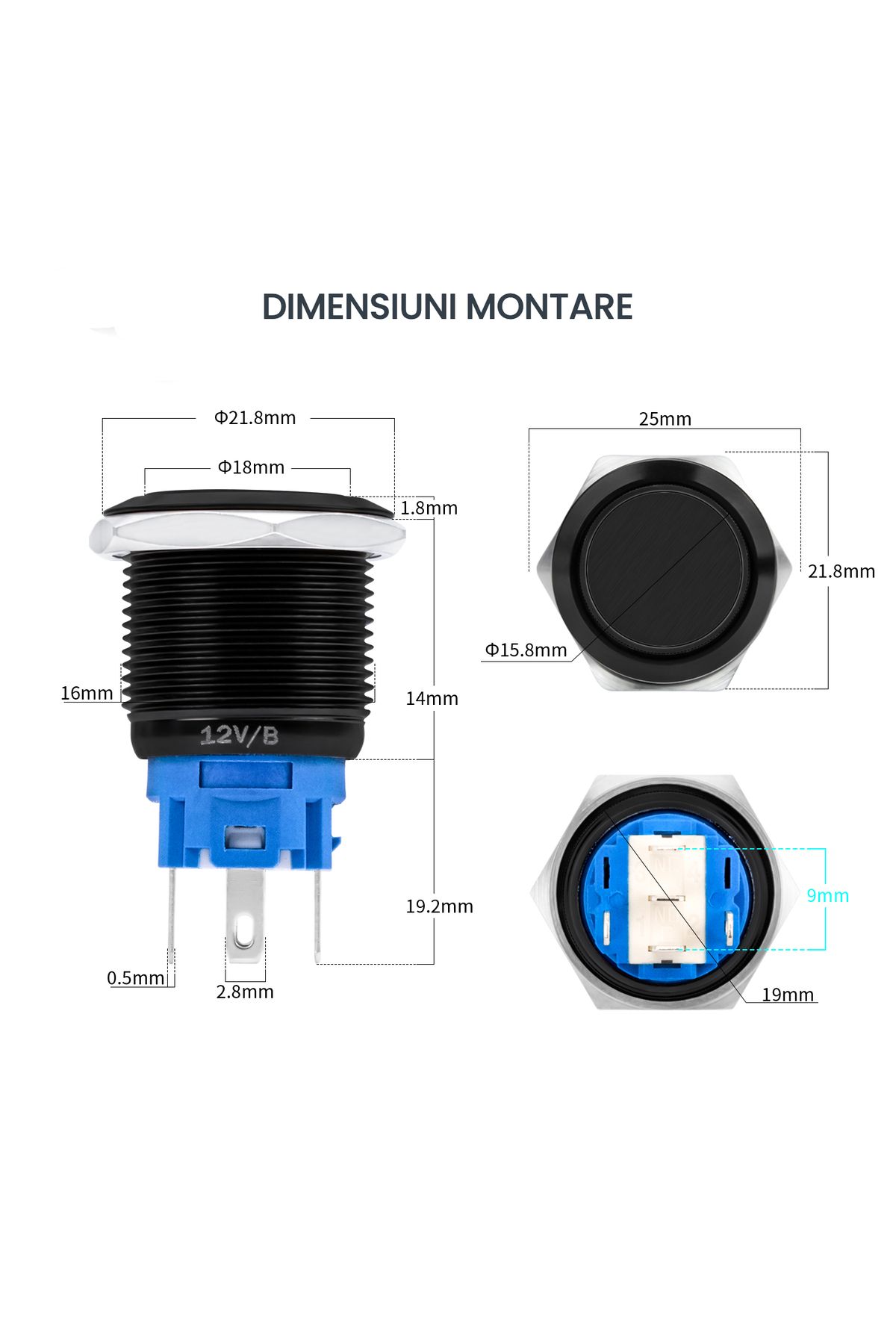

1. ASSEMBLY The Push button has a mounting size of 19 mm, M19 mm thread, with flat button, illuminated ring, 5-pin connection (2 pins for LED, 3 pins for button).

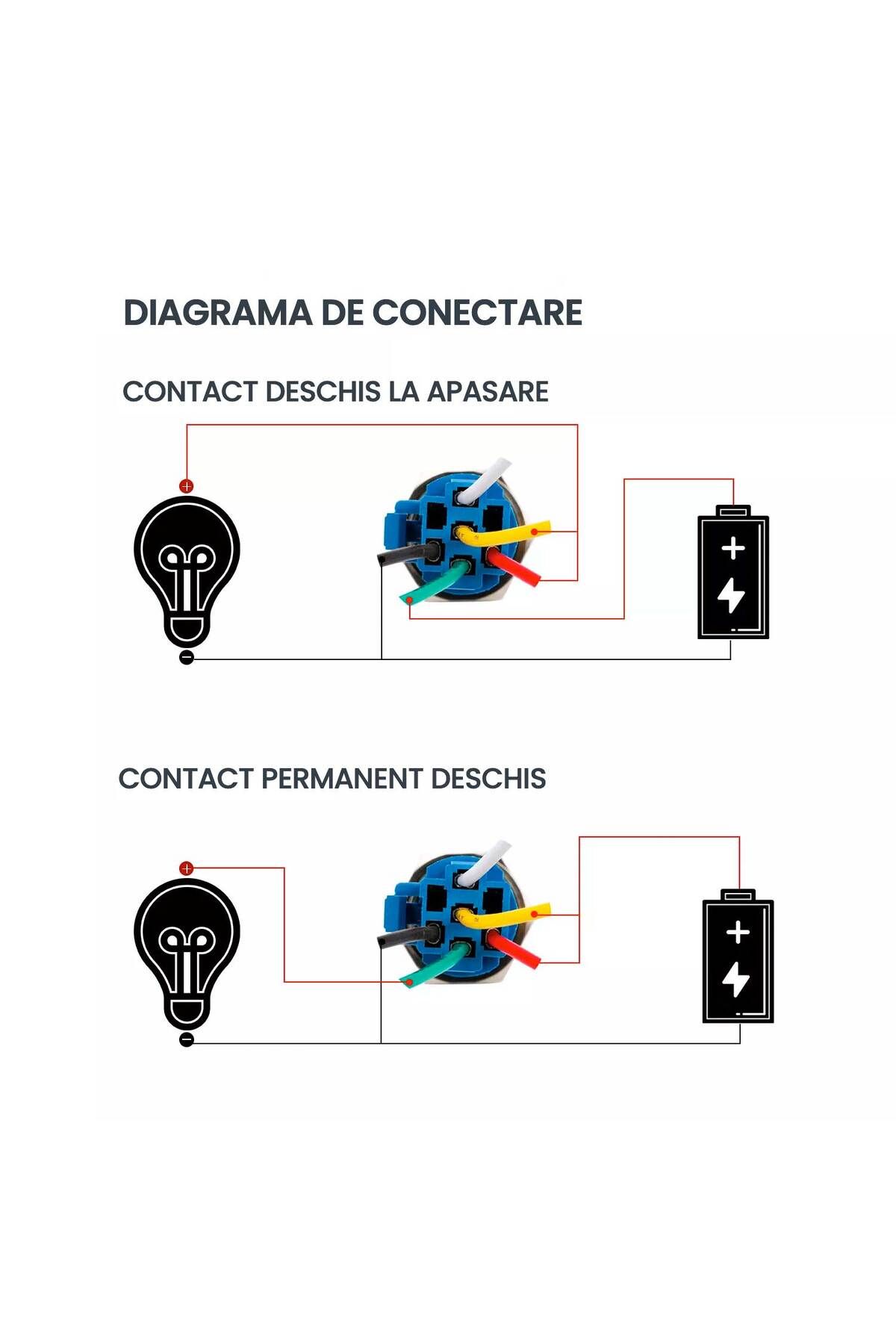

2. CONNECTION The Push Button has 5 connection pins, of which 2 pins for LED and 3 pins for Contact.

This push button has 2 types of contacts NO (normally open) or NC (normally closed).

Depending on your needs, connect the button in such a way as to obtain the desired type of contact.

3. USE Thanks to the IP65 protection class and the connection possibilities by association, namely Normally Open or Normally Closed contact, this push button covers a wide range of uses.

EX: Automation Panels, Self-Service Car Washes, Vending Machines, Professional HORECA Devices etc.

Technical Details Silver alloy contacts Supply voltage: 12V Supply current: 5A Connection terminals: 5 Pins with association: 1NO, 1NC, LED+, LED-, COM Package Contents 1x Push Button Black 19mm / Latching with Green Led
