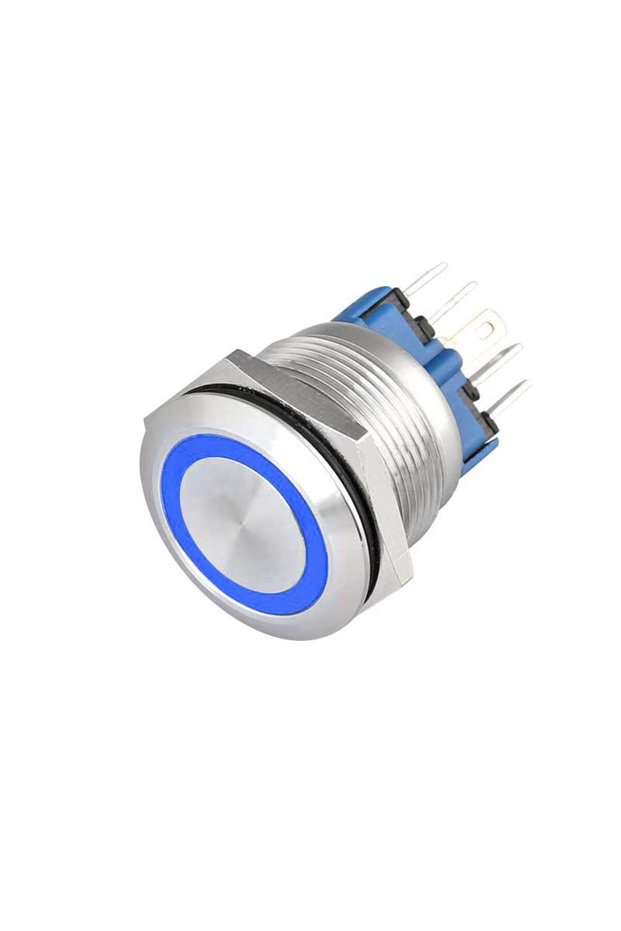

CLASSLIGHTS Push Button 22mm with Return, 12-24V, Blue LED, Plug included, ElectroAZ

Product description

Push Button 22mm / 12-24V Blue Light Connector Included Metal push button with a diameter of 22mm and Blue LED, Switch that can be used on elevator control panels and other equipment compatible with this type of push button.

Vandal-proof and waterproof metal button that is powered in the range of 9-30V .

With an extended voltage range, ranging from 9V to 30V, the button integrates perfectly into any electrical system.

Whether it is industrial or residential applications, this product easily adapts to any need, ensuring stable and reliable performance.

The most commonly used voltages are 12V and 24V (the button works perfectly at these voltages).

This push switch has 5 power connection pins.

This push switch has 5 power connection pins.

Removable nut and rubber sealing ring.

1.INSTALLATION The Push button has a mounting size of 22 mm, M22 mm thread, with a flat button, illuminated ring, 5-pin connection (2 pins for LED, 3 pins for contact).

This push button has 2 types of contacts NO (normally open) or NC (normally closed).

Depending on your needs, connect the button in such a way as to obtain the desired contact type.

2. MATERIAL The 22mm Push Button is made of Aluminu 304 and 316, giving it an IP65 protection class (moisture resistance) and an IK09 class (anti-vandalism).

The contacts of this push button are made of silver alloy and gold-plated for increased connectivity.

3.USE Thanks to the IP67 protection class and the connection possibilities by association, namely Normally Open or Normally Closed contact, this push button covers a wide range of uses.

EX: Automation Panels, Self-Service Car Washes, Vending Machines, Professional HORECA Devices etc.

Technical Details Silver alloy contacts Connection terminals: 5 Pins 1NO 1NC Protection level: IP65 / IK09 Working pressure: 500gf Operating temperature: 20 - 85 Torque size: 5-14Nm Operating cycle: 2.0mm Contact resistance: 50mOhm Max // Insulation resistance: 1000mOhm Max Mechanical life: 1,000,000 cycles Dielectric life: 200,000 cycles Package Contents 1x Push Button 22mm / 12-24V Blue Light 1 x Connector Plug
