EASTRON Single-phase energy meter SDM120D (MID)
-25%
(incl. VAT)
Shipped from: Romania
Trendyol's commitments
Easy and free return in 30 days.
Highlighted features:
EASTRON Single-phase energy meter SDM120D (MID) reviews
Product details
Product description

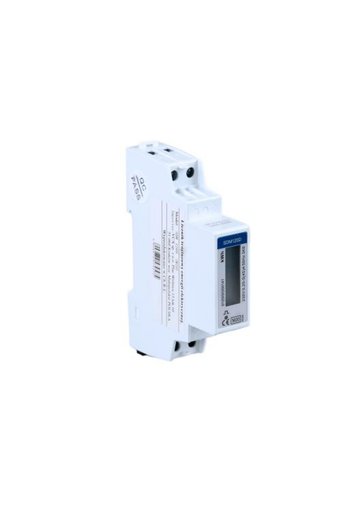

The SDM120D (MID) electricity meter is used to indicate the consumed single-phase alternating current with accuracy in class 1/B.
The meter complies with EU Directive 2004/22/EC, known as the MID Directive - Measuring Instruments Directive of 31 March 2004. The device measures the amount of active energy (kWh) using the pulse output.
Operating parameters: accuracy class 1 international standard IEC 62053-21/EN, EN50470-1/3 working temperature -20°C/+55°C storage temperature -40°C +/- 70°C reference temperature + 23 ° C +/- 2 ° C operating humidity ≤90% humidity during storage ≤95% start-up time 3 seconds protection against water and dust ingress IP51 mechanical environment M1 level II protection Technical parameters: nominal voltage 230V working voltage 176/276 V AC voltage resistance 4kV-1m impulse voltage resistance 6kV1.2µS current 5A maximum rated current 45A starting current 0.4% lb overload resistance 30 Imax - 0.01s operating frequency 50 Hz power consumption 50/60Hz pulse output Max2W/10VA display 1000imp/kWh analog LCD display maximum reading 99999.9kWh
Additional info
- EU Responsible details are here.
- Please refer to the actual product packaging or the user manual for information regarding storage conditions.
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Sold and fulfilled by .
- Barcode No: 5906874479575
