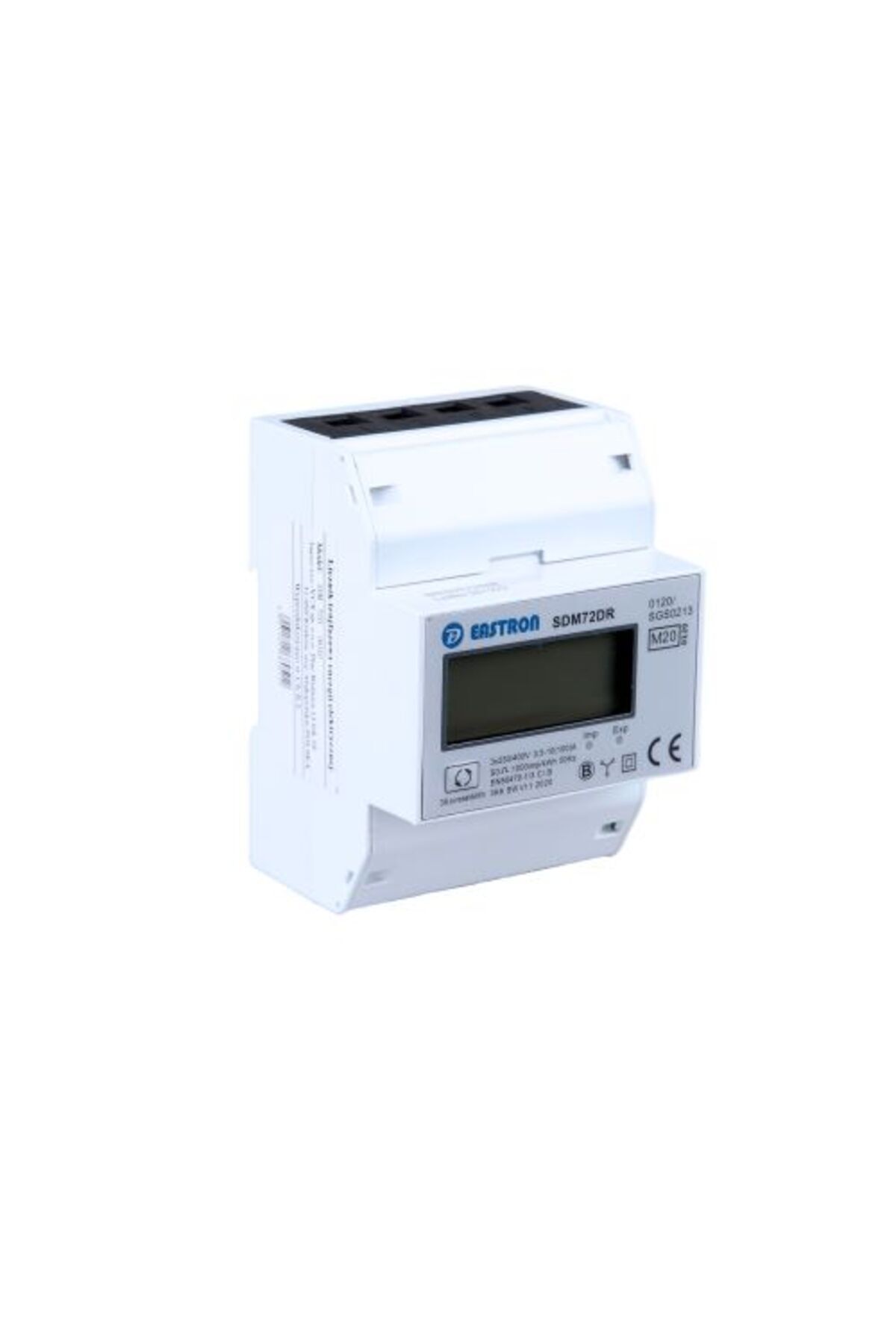

EASTRON Three-phase energy meter with reset function SDM72 DR (MID)
-25%
(incl. VAT)
Shipped from: Romania
Trendyol's commitments
Easy and free return in 30 days.
Highlighted features:
EASTRON Three-phase energy meter with reset function SDM72 DR (MID) reviews
Product details
Product description
Electric meter Model SDM72 DR - measures and indicates active energy consumption (kWh) and power (W).
The model is equipped with the option to reset the active energy consumption indication.
The meters comply with EU Directive 2004/22/EC, known as the MID Directive - Measuring Instruments Directive of March 31, 2004. The 72 series meter is equipped with a pulse output completely separate from the device circuit, generating pulses according to the amount of energy consumed, allowing the connection of a counting device.
Features: accuracy class 1 international standard for active energy measurement accuracy IEC 62053-21 / EN EN50470-1 / 3 working temperature -20°C / +55°C storage temperature -40°C / +70°C reference temperature + 23 ° C +/- 2 ° C operating humidity ≤90% humidity during storage ≤95% start-up time 10 seconds protection against water and dust ingress IP51 mechanical environment M1 level II protection Technical parameters: Rated voltage 230/400V AC (3~) Operating voltage 80% -120% Un AC voltage resistance 4kV-1m impulse voltage resistance 6kV-1.2 / 50µS base current (lb) 10A Maximum rated current 100A starting current 0.4% lb Overload resistance 30 Imax - 0.01s Operating frequency 50 Hz +/- 10% Power consumption ≤2W / 10VA / phase display 1000imp / kWh
Additional info
- EU Responsible details are here.
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Sold and fulfilled by .
- Barcode No: 5906874479599
