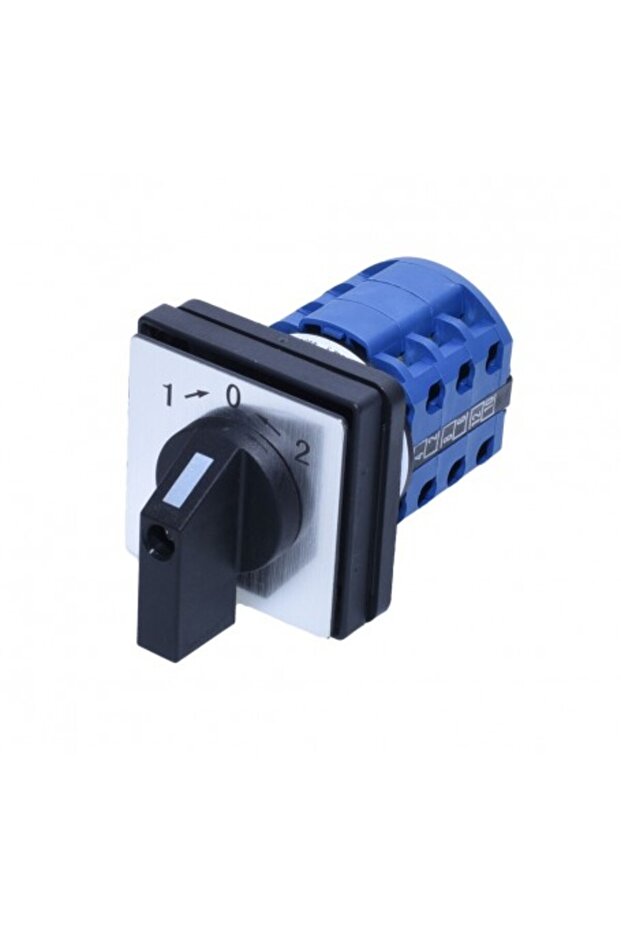

ElectroAZ 20A switch Rotary selector 1-0-2 reviews
Product details
Product description
Cam Switch 1-0-2 with Return Combination cam switch with reset function.
This switch only works when the rotary selector is turned to positions 1 or 2, then returns to the initial position 0. The switch can be used in various electrical machines such as: industrial equipment, sawmill motors, milling machines, production lines, extrusion or injection machines, electric pumps, etc.
This button can be used both in the household and in the industrial field.
It is very easy to use, by simply turning the selection knob and allows the delivery of electricity in 3 positions.
Technical Details Model: LW-26203 Contact type: 3 positions 1-0-2 Action type: rotary selector with return Nominal voltage (Ui): 440V AC Impulse voltage (Uimp): 3kW Rated thermal current (Ith): 20A Nominal current: AC-15: 440V-4A / 220V-5A
DC-13: 240V-1A / 120V-5A Terminal: Screw terminal Temperature range: -2C and +70C Protection degree: IP42 After installation Reliability: 1000000 Switching Cycles Cutting hole diameter: 43mm Dimensions: Length 60/83 x 50x50mm Material: plastic, metal Package Contents 1 x 20A Rotary Switch 1-0-2
