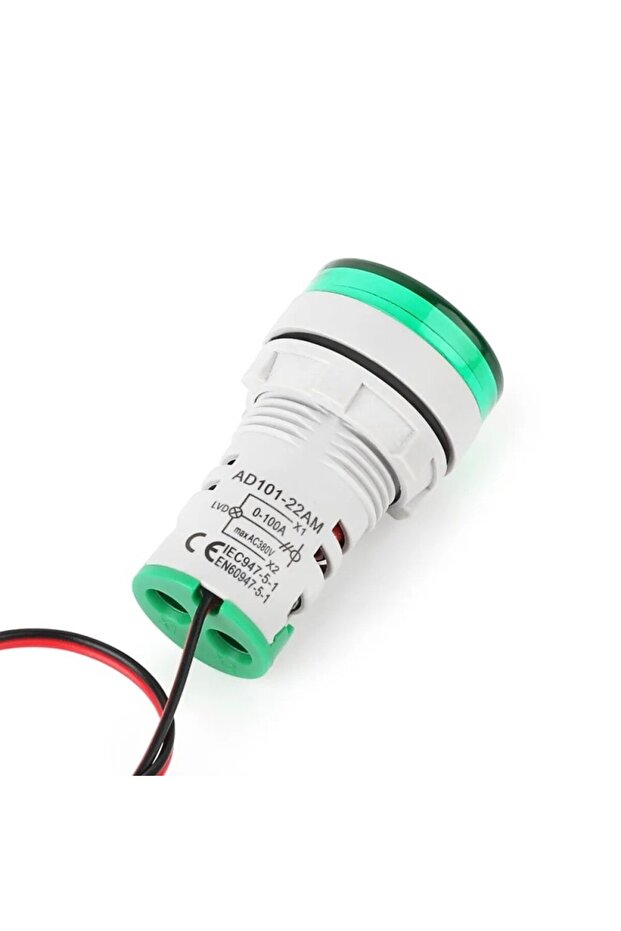

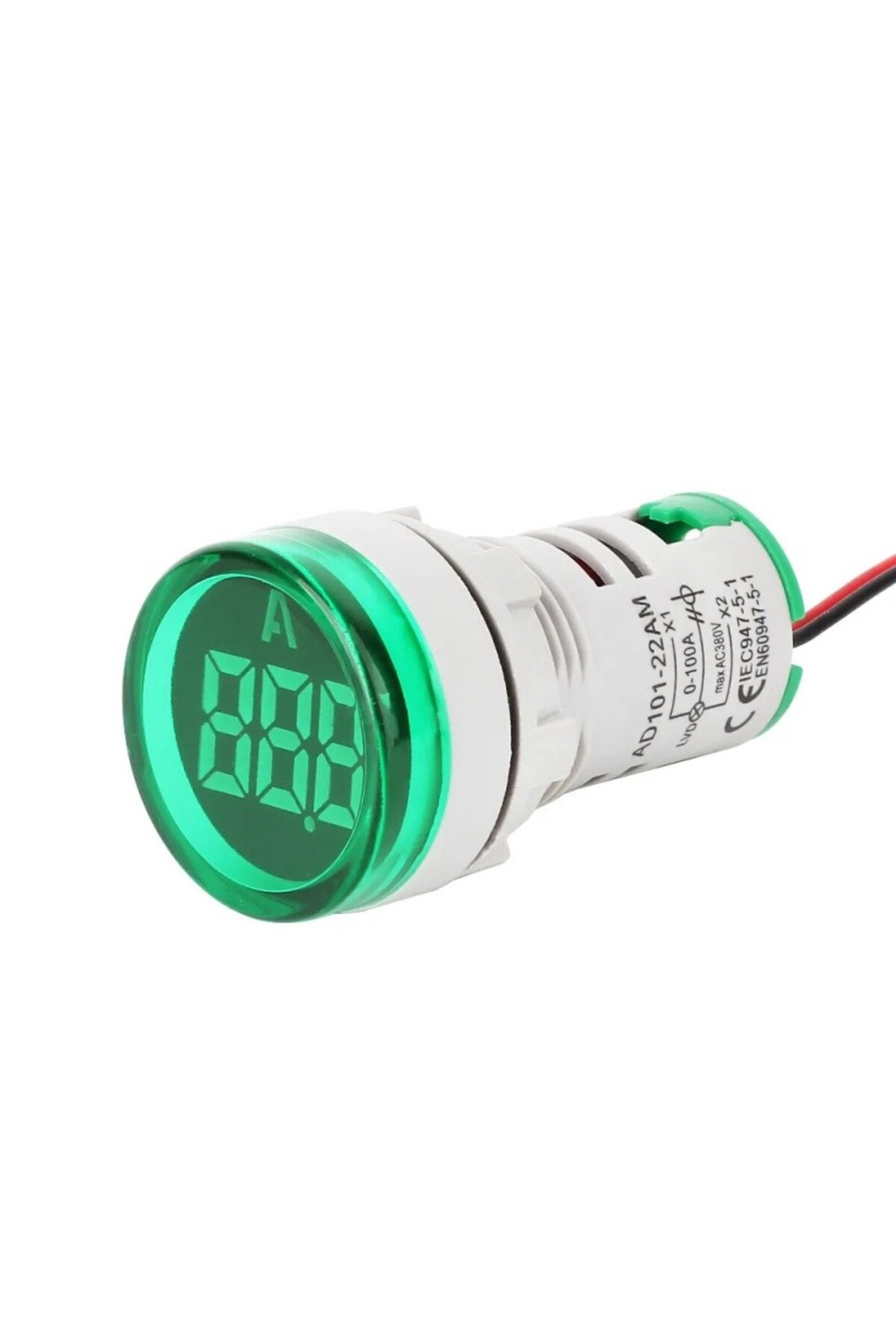

ElectroAZ Digital Panel Ammeter, 220V, Diameter 22mm, Green
-30%
(incl. VAT)
Shipped from: Romania
Trendyol's commitments
Easy and free return in 30 days.
Highlighted features:
ElectroAZ Digital Panel Ammeter, 220V, Diameter 22mm, Green reviews
Product details
Product description
Green Digital Panel Ammeter 220V / 22mm Built-in Digital Ammeter for electronic/electrical devices with the function of measuring electric current, i.
e.
Amperage.
LCD screen with current display function.

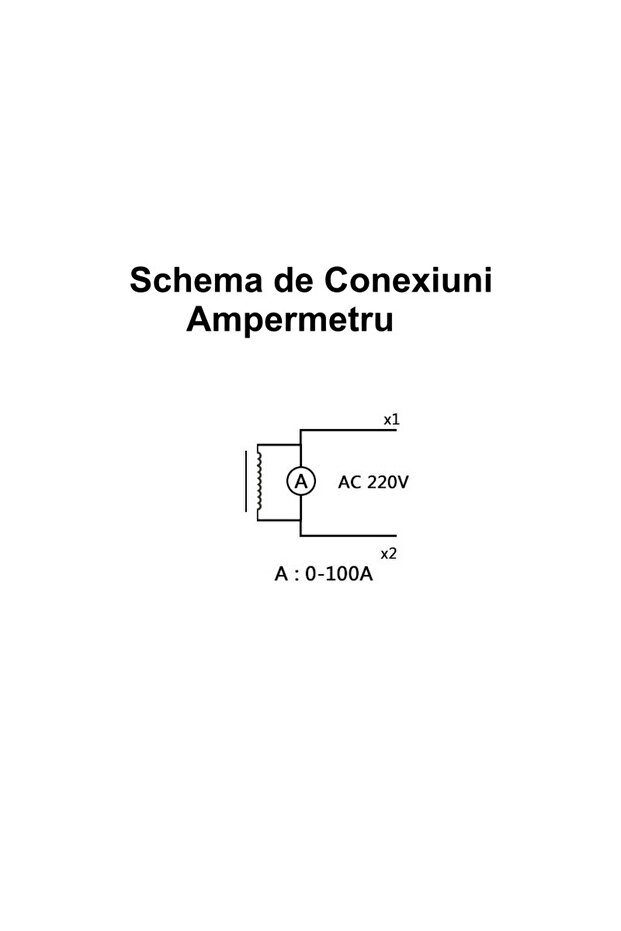

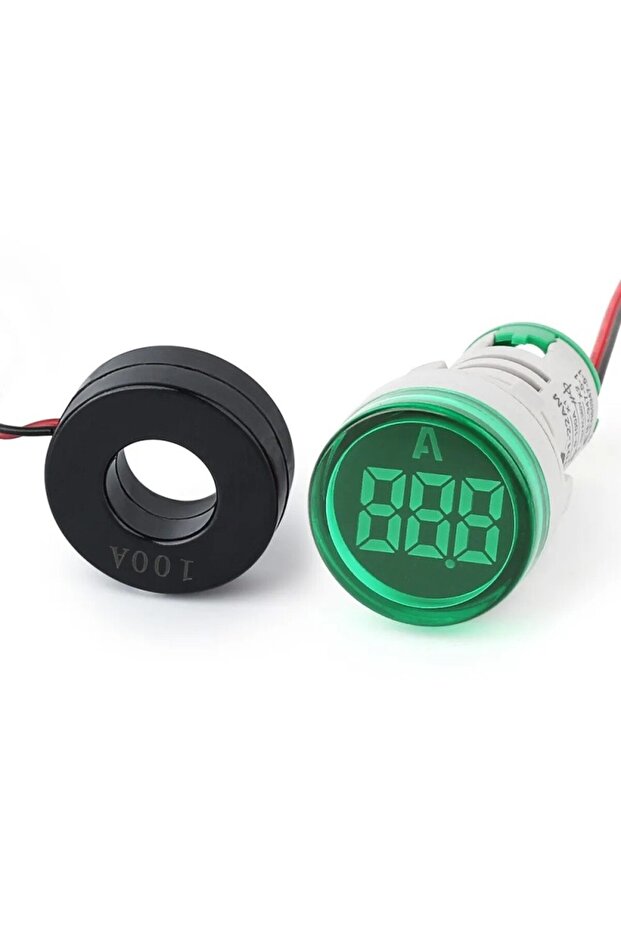

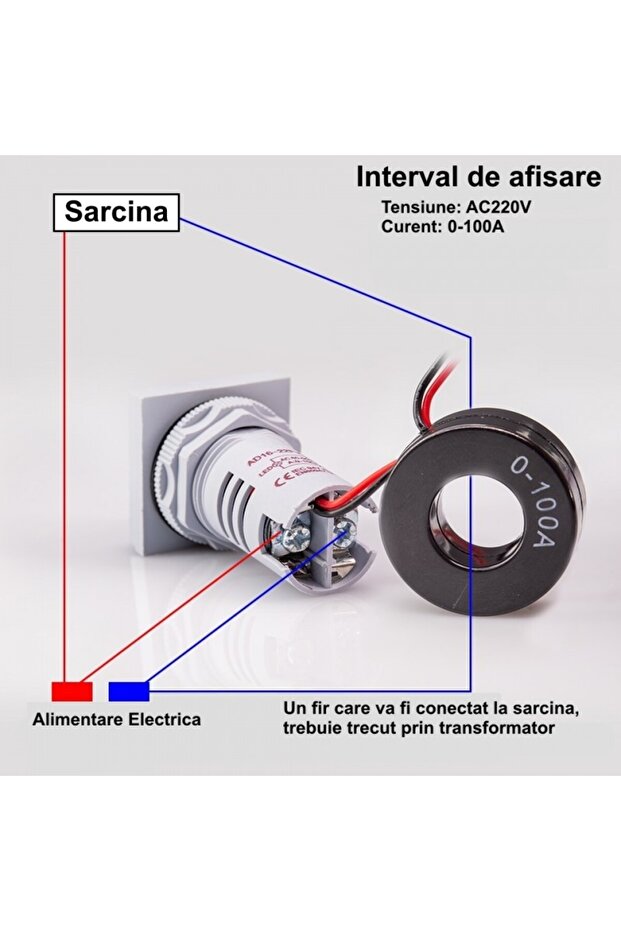

In order to collect indication data, a wire coming from the power supply must pass through the transformer before reaching the load.
Technical details: Lighting source: LED Lamp color: V: Green Voltage: 220V 0-100A Nominal temperature: T90 Continuous working time: Typically over 30,000 hours.
Diameter: 22mm Environment temperature: -25 + 55 Working at vibration frequencies 2-80Hz, acceleration at 0.7g Relative air humidity: 98% Protection degree: IP65 head Working frequency voltage: 2.5kV (AC validity), 1min Leakage index: CT1100 Frequency: AC 50-60Hz Careful! Do not use near excessive heat sources, open flames or direct water.
Do not connect to a voltage/current other than that indicated.
To measure the amperage of a device, it must be under load.
Package contents: 1 x Panel Digital Ammeter 220V/ 22MM
