Product description

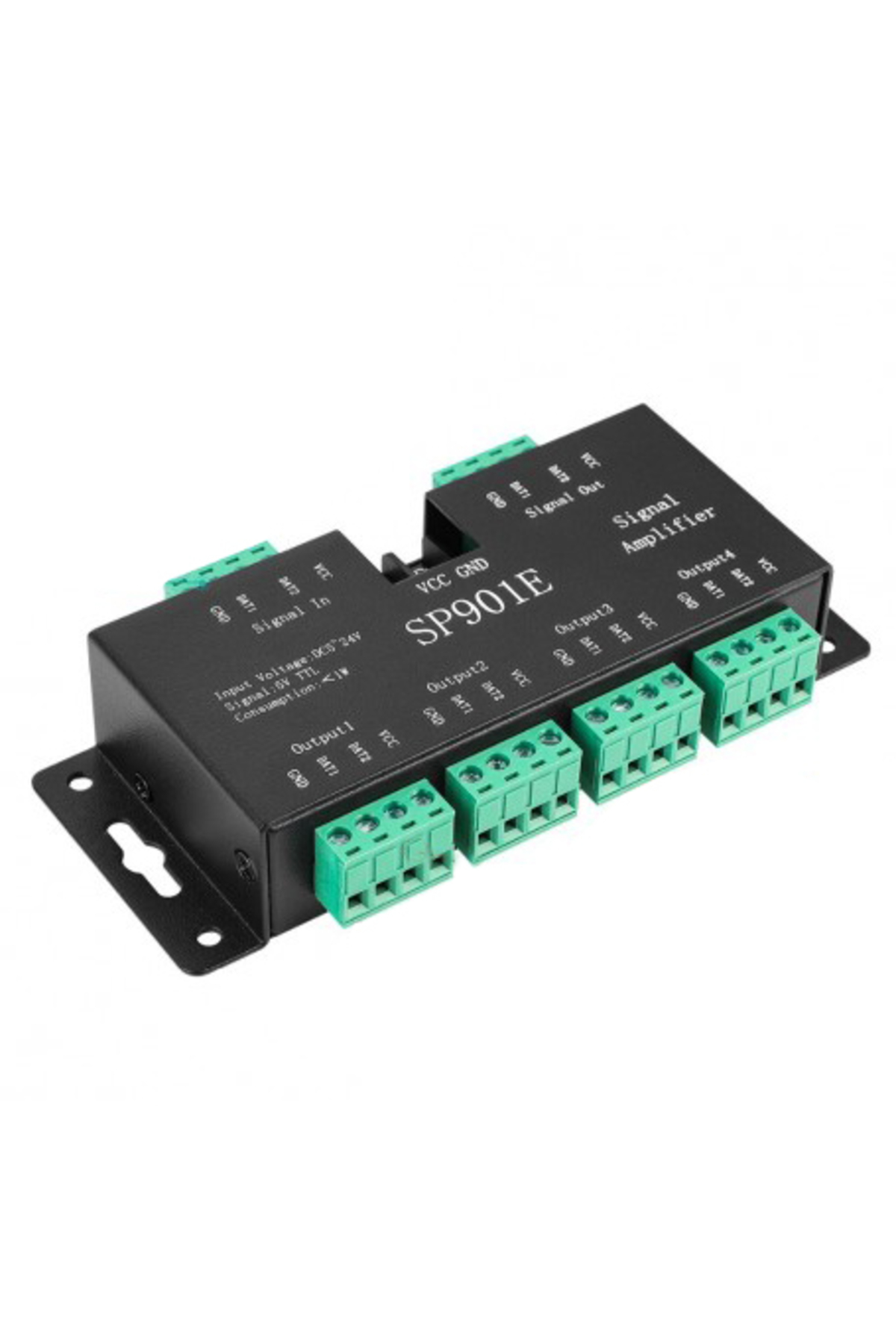

LED Pixel Digital Amplifier SP901E TTL SPI signal amplifier for PIXEL DIGITAL Magic LED strip, which can be used for 4 LED strips connected simultaneously.
The amplifier has a light signal input and an output for a second amplifier, connected to it.
The output for a second amplifier can be used as an output for another Pixel Digital LED strip if needed.
This SP901E TTL SPI signal amplifier is compatible with all dual signal types.
It receives the signal and can output 4 or 8 signal channels simultaneously.
Each channel can control the same amount of LED pixels as the main controller.
It can output 8 channels for addressable LED strip with a single data wire, such as: WS2811, WS2812B, SK6812, SK6812-RGBW, SM16703 and can power 4 channels of addressable strip with data and clock wires such as: WS2813, WS2815,WS2801, APA1822. With this switch, you can also control LED strips powered at 5V DC: WS2812, WS2813, but also strips powered at 12V DC: WS2811, WS2815, 1903, 6803. All can be powered at the same time if the required voltage is the same for each (CS8812, AL2815, WS2801, APA102, SK9822, UCS1903, LPD6803, LPD8806, APA102).
Multiple signal amplifiers can be connected to synchronize together.
The device is used for lighting projects that can also work with music controllers: K1000C, SP105E, SP108E, SP107E, CSY08, CSY07, Raspberry Pi, Arduino x2. This amplifier can be used at voltages between DC 5V-24V, but it cannot regulate the voltage.
This means that the voltage at which it is powered will also be the output voltage.
The amplifier is compact, and can be used in small spaces and places.
The high-quality material from which it is made gives it great resistance over a long period of time.
Attention! When using multiple LED strips, check and calculate the voltage and current required for them.
For long-term use, make sure that it is powered with a current about 30% higher than required.
DO NOT cover the amplifier during use and DO NOT place the amplifier in a humid environment or near heat sources.

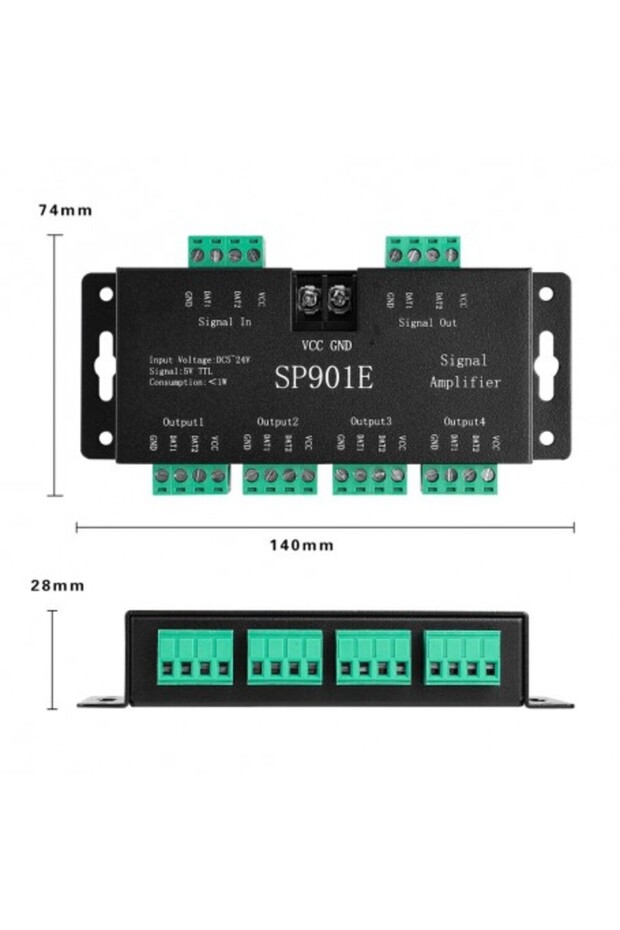

Technical Details Model: SP901E Compatibility: Pixel Digital Magic LED strip Connection: 4 bands can be connected Standby power consumption: 1W Input voltage: DC 5V-12V-24V Size: 140 x 74 x 28mm Material: metal Package Contents 1 x SP901E Digital Pixel LED Amplifier
