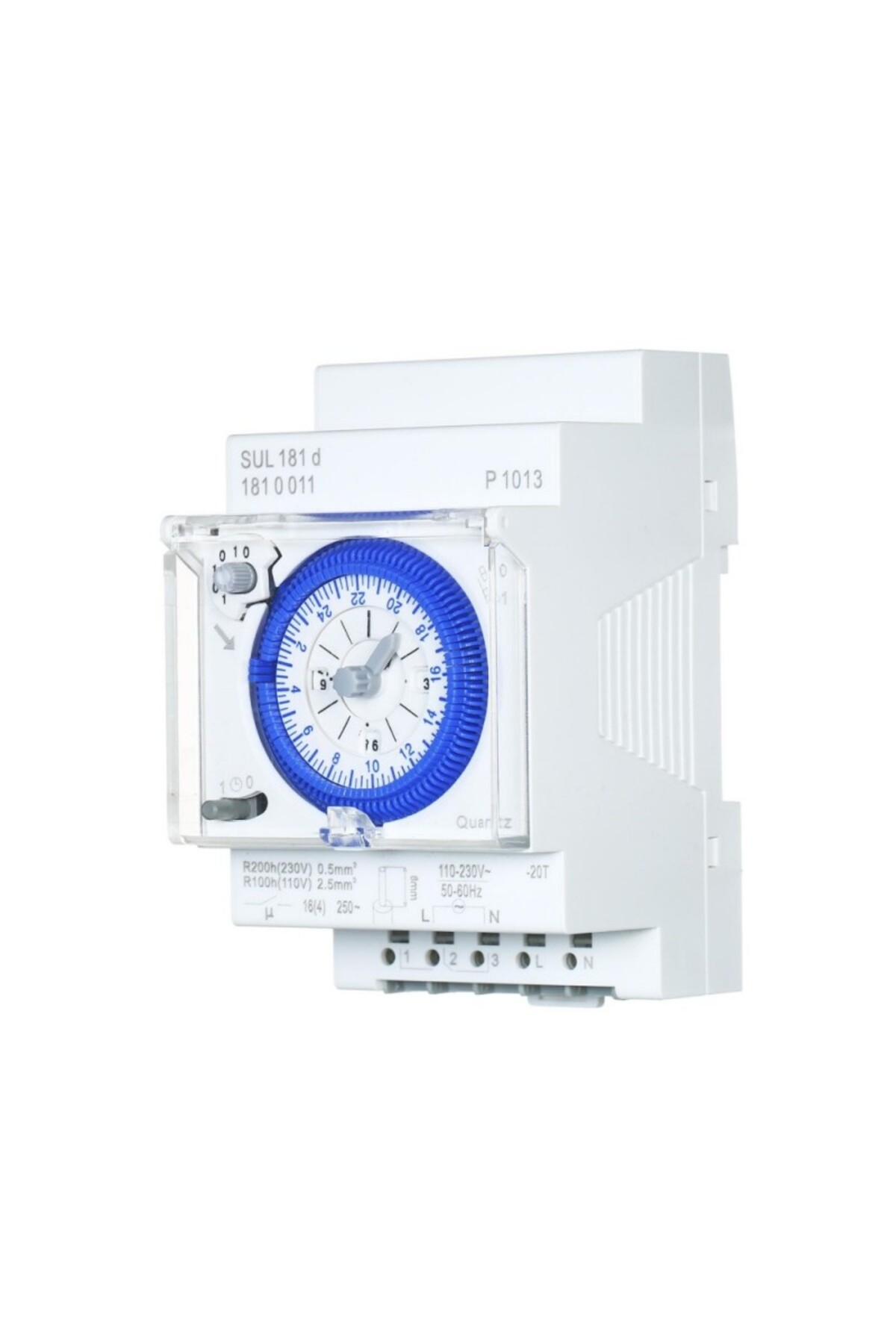

ElectroAZ Mechanical Panel Timer, Timer Clock, Rail Mount, SUL-181-D

Product description

Mechanical Panel Timer, SUL-181-D Mechanical timer clock with panel rail mounting, used in a wide range of applications.

This mechanical timer that can be programmed to turn on or off the power supply to various machinery, appliances, irrigation systems, lighting systems, automatic gates, fans, street lamps, panels advertising, water heaters, dispensers, etc.

It can also be used for office equipment such as printers, copiers, laptops, PCs, etc.

Very intuitive and easy to program.

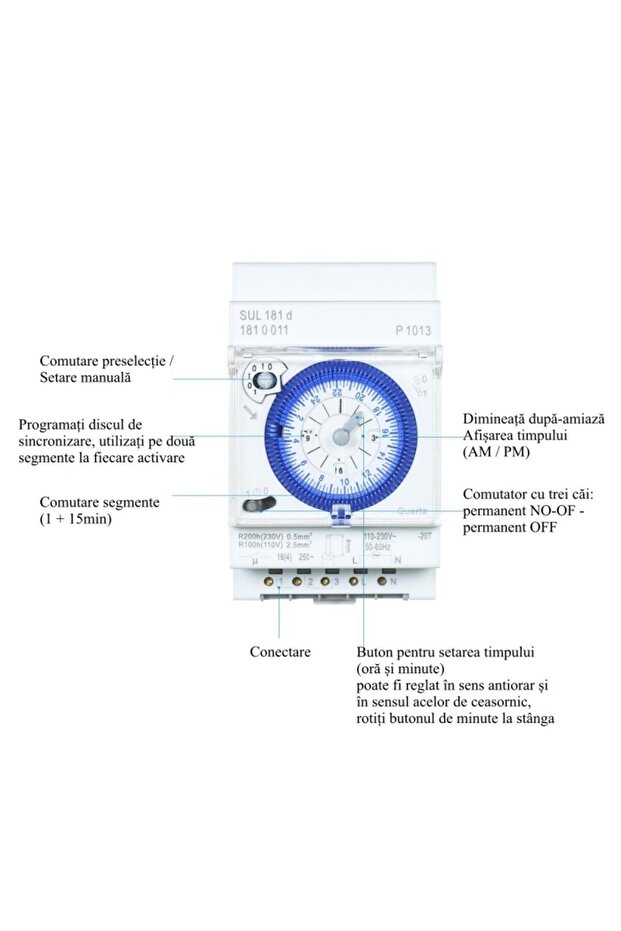

Turn the timer clockwise, then select the period or periods of time in which you want the circuit to open or close, then press all the segments that are in the selected time period.

24-hour timer, with the button (On - Off - Auto) you can turn off the timer when it is not needed.

One segment to be pressed represents a time value of 15 min.

Supports 96 programming actions in one day.

This programmer will help save electricity, water, etc.

and thus save money and the environment.

surrounding.

Anti-jamming system for electrical and electronic devices.

Transparent waterproof and dustproof cover.

CODE-MH1210W Technical Details Working voltage: 110 - 230V AC R200h - 230V R100h - 110V Frequency: 50/60Hz Power consumption: Max 1A Switching capacity: 16A, 250V Incandescent lamp load: max 1100W Fluorescent lamp: 2 x 40W Total setting time: 24H Minimum setting time: 15 min Switch: ON-AUTO-OFF Inserted conductor size: 0.5 - 2.5 mm2 Inserted conductor length: max 8mm Installation method: on DIN rail Size: 90 x 65 x 54 mm Package Contents 1 x Mechanical Panel Timer, SUL-181-D
