Product description

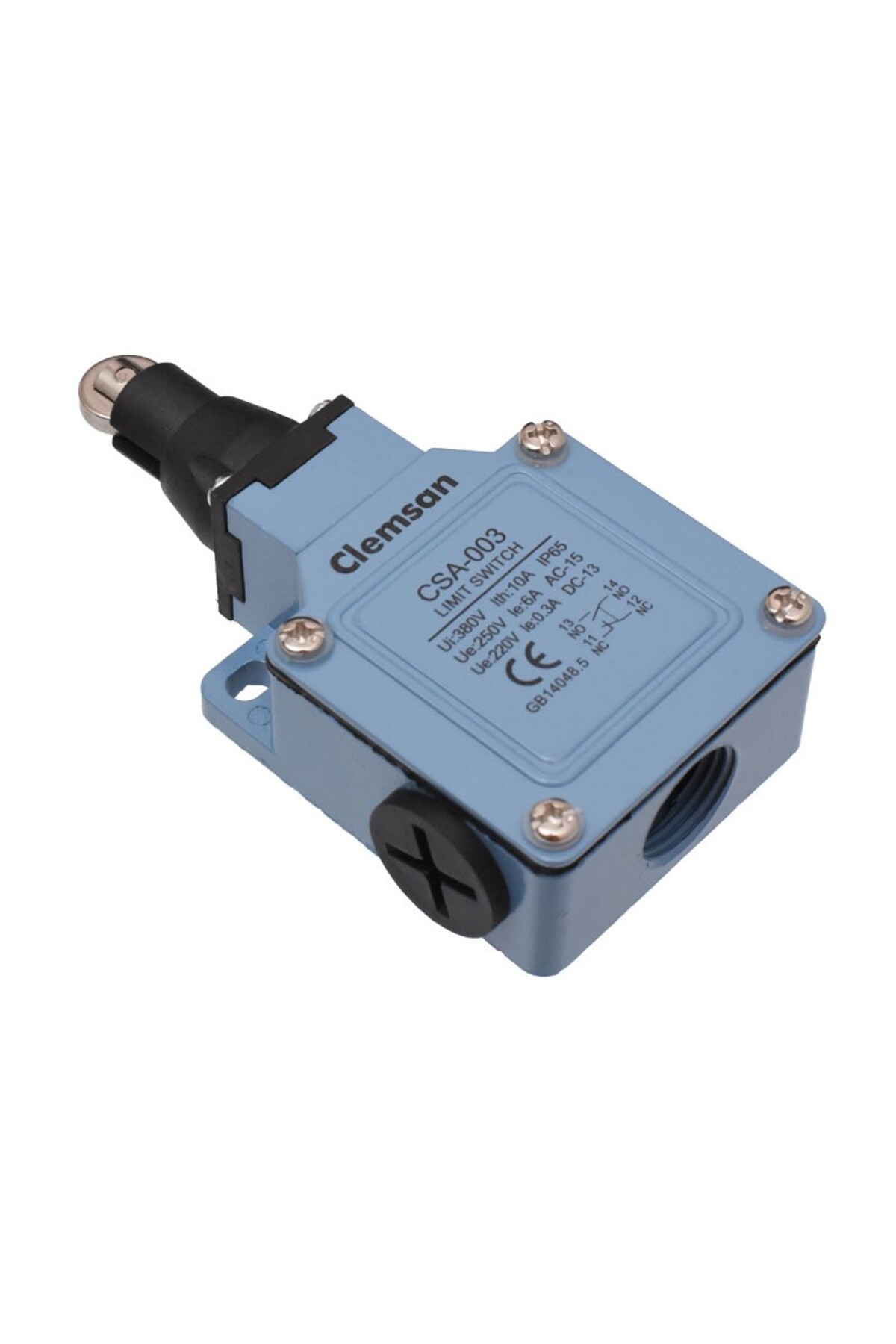

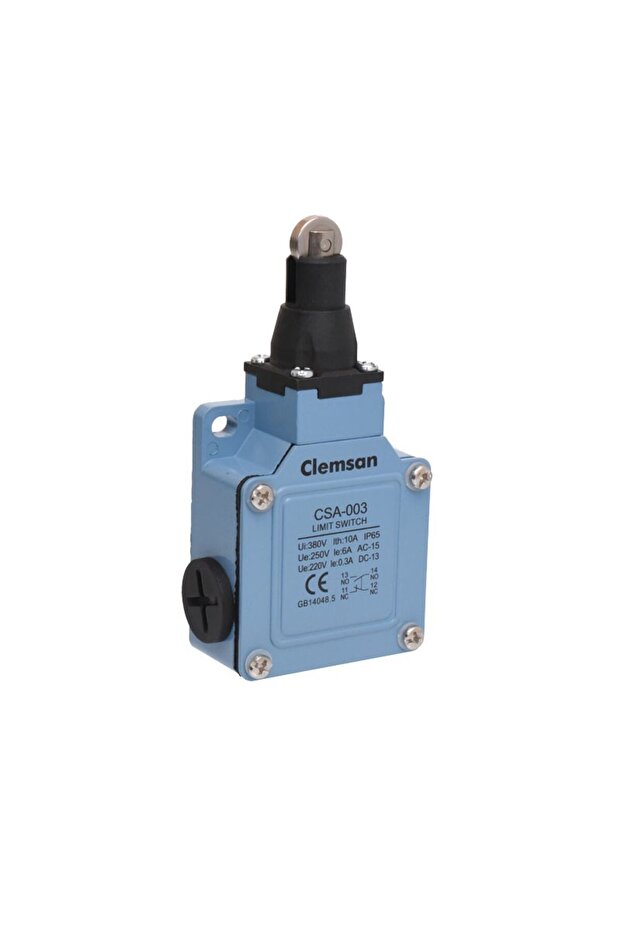

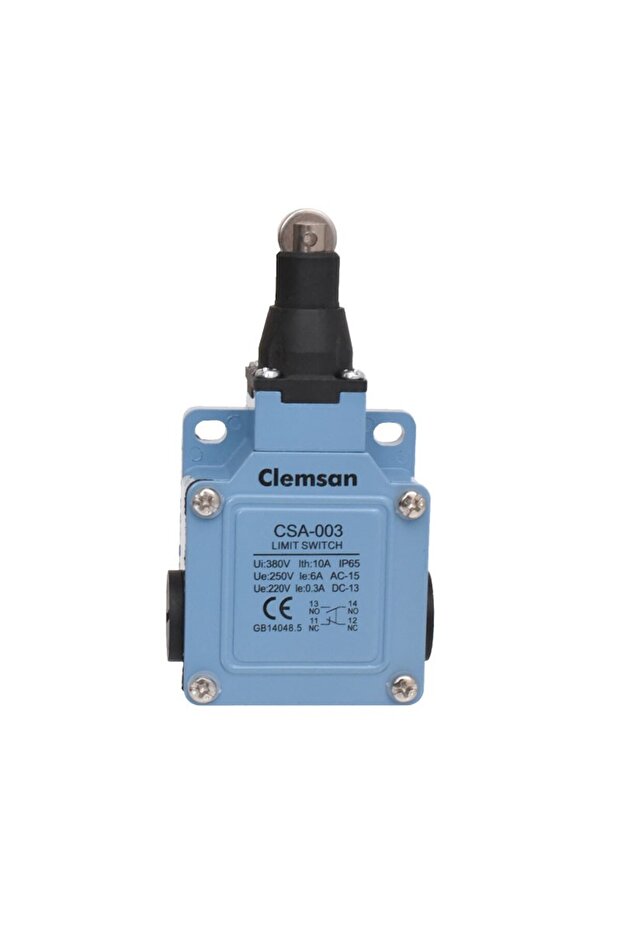

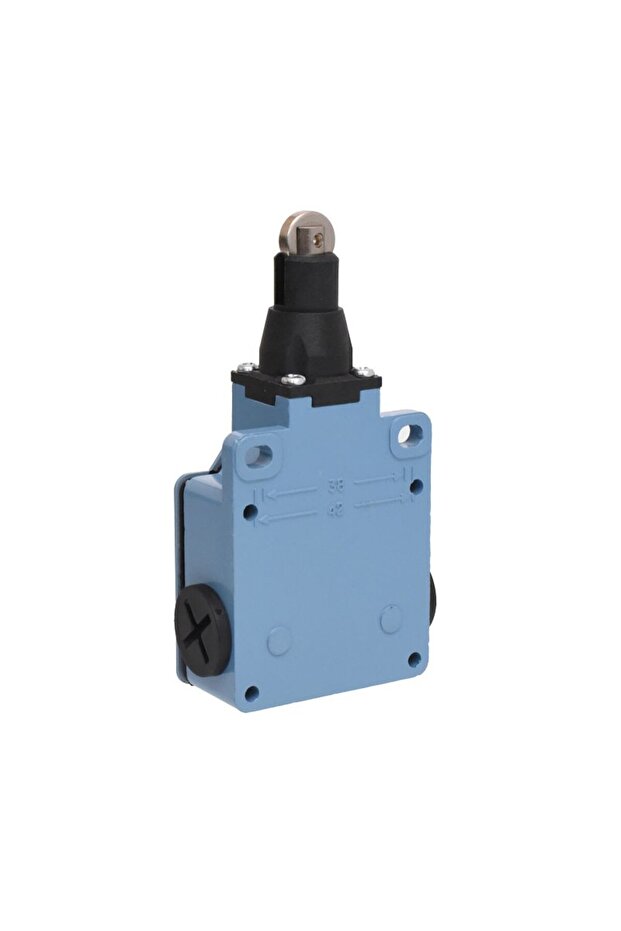

Roller Stroke Limiter CSA-003 Limit switch with metal roller and push-button contact, used for machinery industrial, production machines, opening-closing automation, gates and garage doors household or industrial.
The CSA-003 limiter is made of a metal casing and has two mounting holes.
Specifications: Rated voltage: 250V Rated current: 10A active load, 4A inductive load Actuation force: Max 800g Release force: Min 400g Trigger position: +-10% - 2.0mm Movement differential: 1.2hm Dielectric strength: 1000V AC Insulation resistance: 100m / 500VDC Contact resistance: max 25m initial value Electrical wear resistance with active load: 500,000 operations Mechanical wear resistance: 10,000,000 operations Operating speed: 5mm/s to 0.5m/s Protection degree: IP65 Maximum ambient temperature: 30C According to standards: EN50041, EN50047, IEC 337-1, VDE 0660 Operating temperature: -5C +65C Ambient operating humidity: 95RH Max Shock resistance: Mechanical durability - 1000m.
s min.
/ Failure: 300m/s 2 min Cable connection, PG11 plug adapter Size: 105.5*58*25mm Package contents: 1 * Push Button Stroke Limiter CSA-003
