ElectroAZ Switch with Cam 1-0-2, 20A/4KW reviews
Product details
Product description

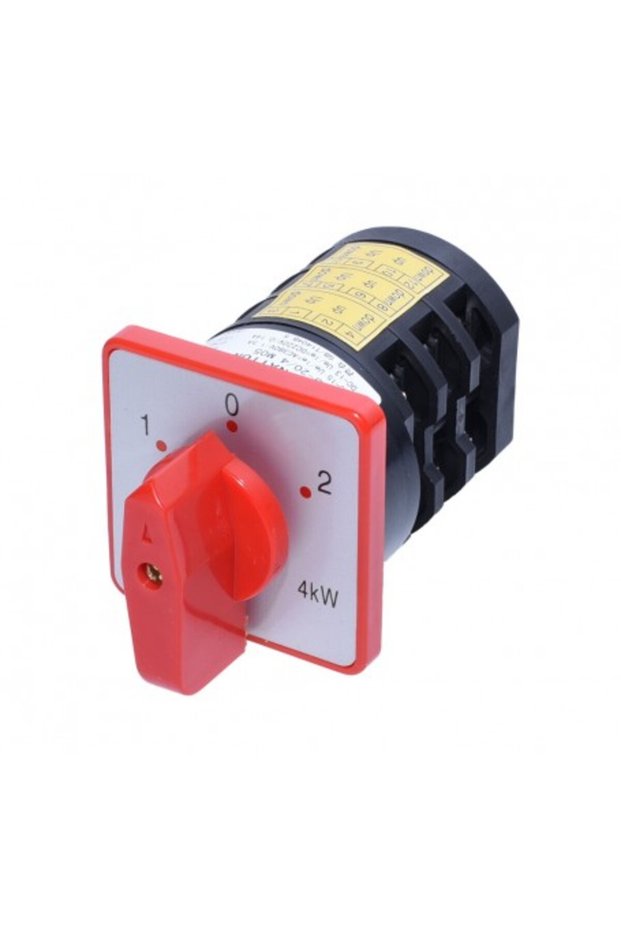

Cam Switch 1-0-2 20A / 4KW with Red Combination cam switch with reset function.
This switch only works when the rotary selector is in position 1 or 2. The switch can be used in various electrical machines such as: industrial equipment, sawmill motors, milling machines, production lines, extrusion or injection machines, electric pumps, etc.
This button can be used both in the household and in the industrial field.
It is very easy to use, by simply turning the selection knob and allows the delivery of electricity in 3 positions.
Technical Details Model: HZ5D-204-M05 Contact type: 3 positions 1-0-2 Action type: rotary selector Nominal voltage (Ui): 660V Impulse voltage (Uimp): 4kW Rated thermal current (Ith): 20A Rated current: AC-15: 380V-1.5A / DC-13: 220V-0.14A Terminal: Screw terminal Temperature range: -2C and +70C Protection degree: IP42 after installation Reliability: 1000000 Switching Cycles Cutting hole diameter: 51mm Dimensions: length 70/95 x 60 x 60mm Material: plastic, metal Package Contents 1 x Cam Switch 1-0-2, 20A/4KW
Additional info
- EU Responsible details are here.
- Please refer to the actual product packaging or the user manual for information regarding storage conditions.
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Sold and fulfilled by .
- Barcode No: 0781499725482
