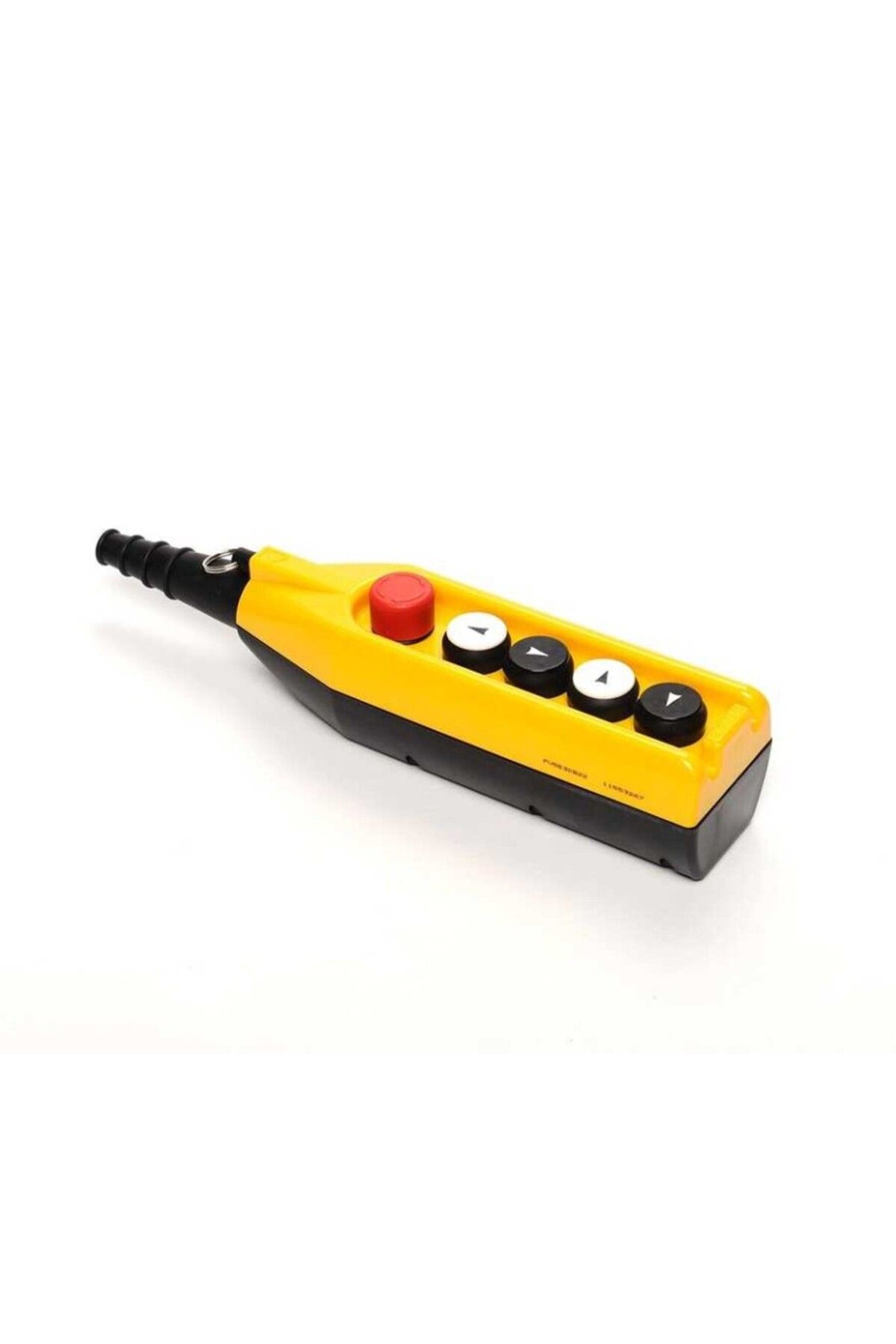

EMAS PV5E30B22 PV Series - 5-Piece Single Speed, 1NC Emergency Stop Crane Control Box

Product crane control box type 5 contact 1nc contact current (ie) 4a (250v ac) usage category ac15 mechanical life (min quantity) 1,000,000 electrical life (min quantity) 100,000 operation frequency (on/off/hour) mech.

900 elk. 900 insulation voltage (ui) 300 v impact resistance voltage (uimp) 2.5 kv dielectric strength (body-contact) 2.500v ac dielectric strength (contact-contact) 1.500v ac insulation resistance 10 m? (500 v dc) operating temperature -15 / + 80 ° C pollution degree 3 protection class ip65 contact material agni cable connection section 1.5-2.5 mm2 crimping force 1.5nm short circuit breaking capacity (ics) 1ka series pv series speed single speed 1.eye emergency stop
