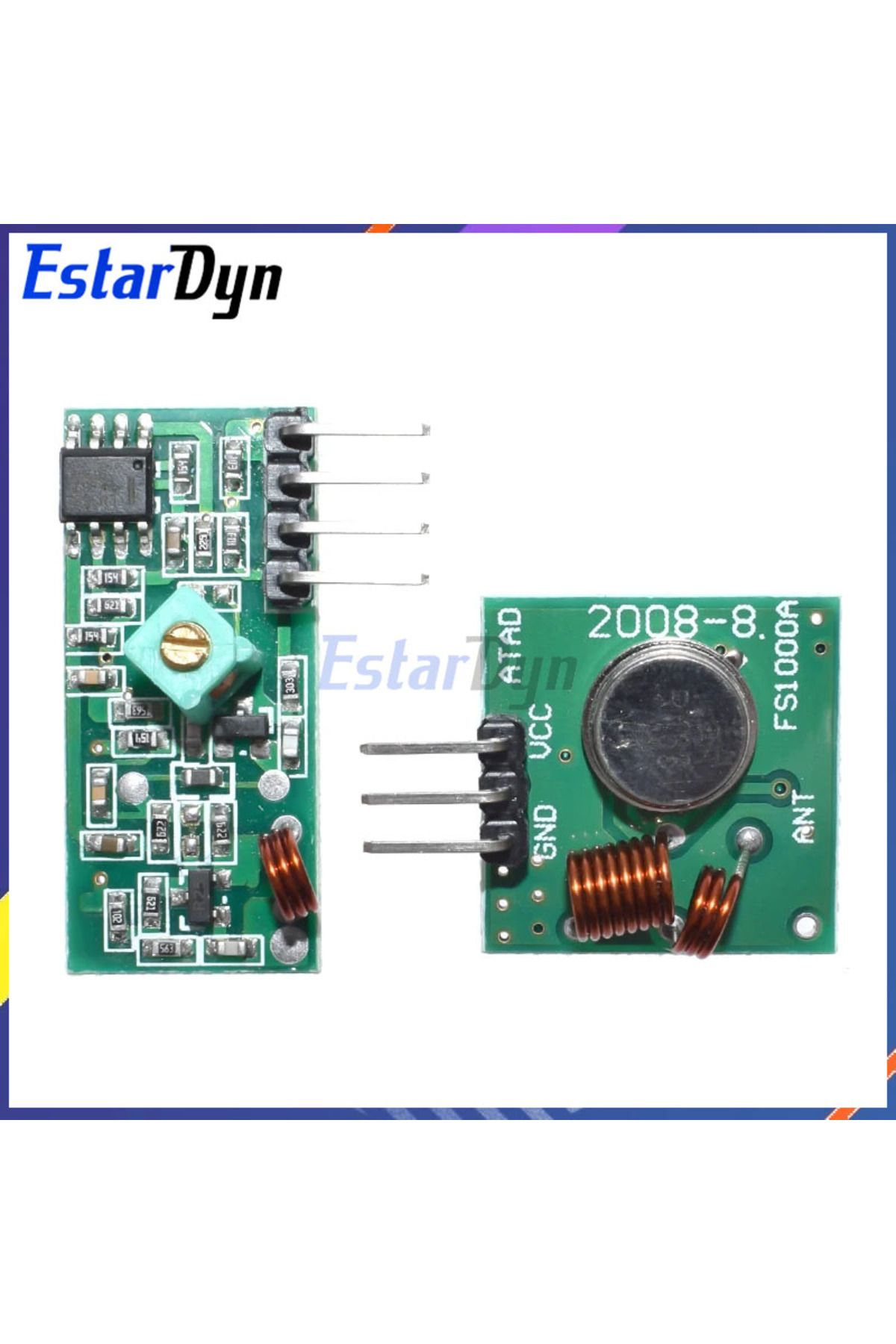

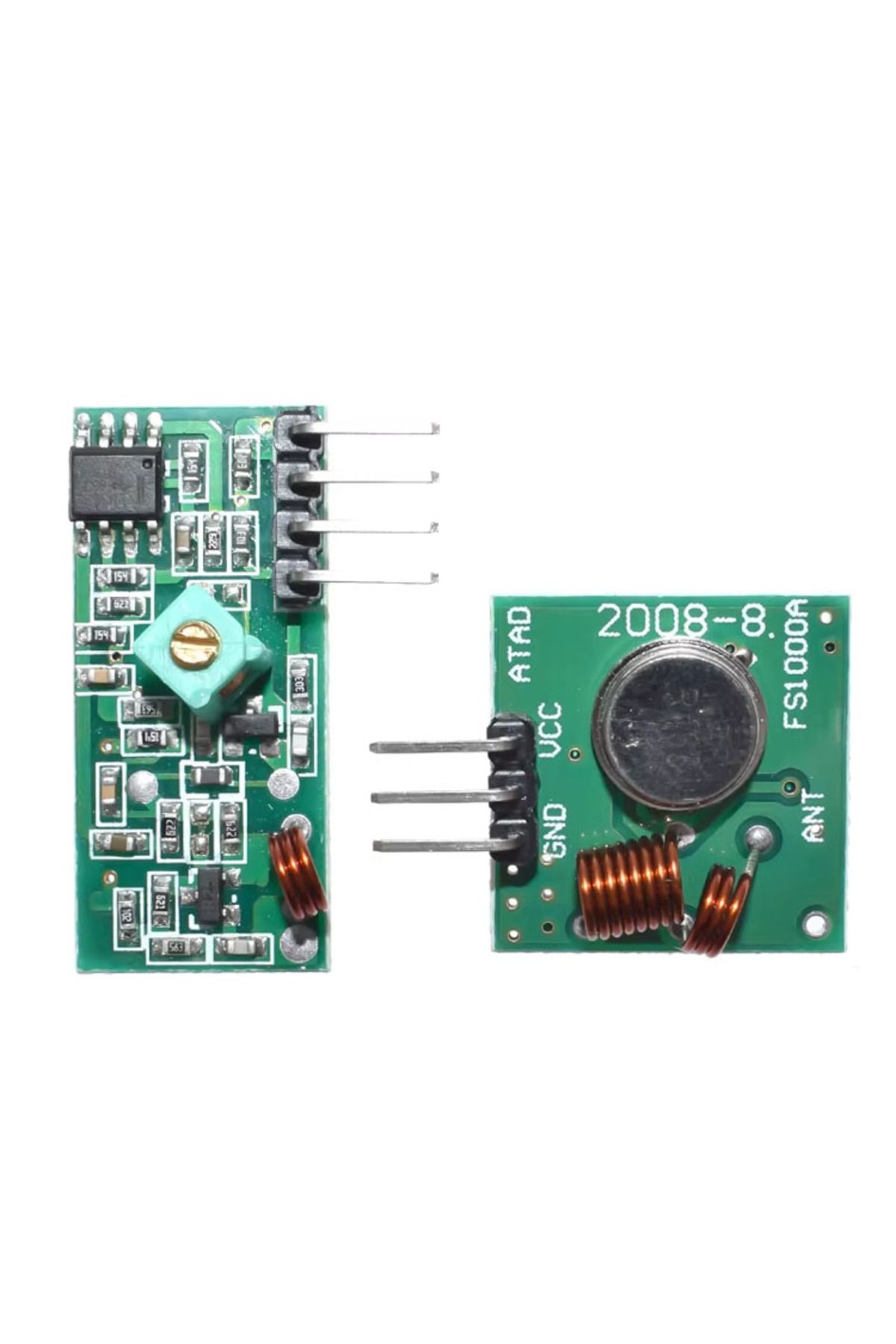

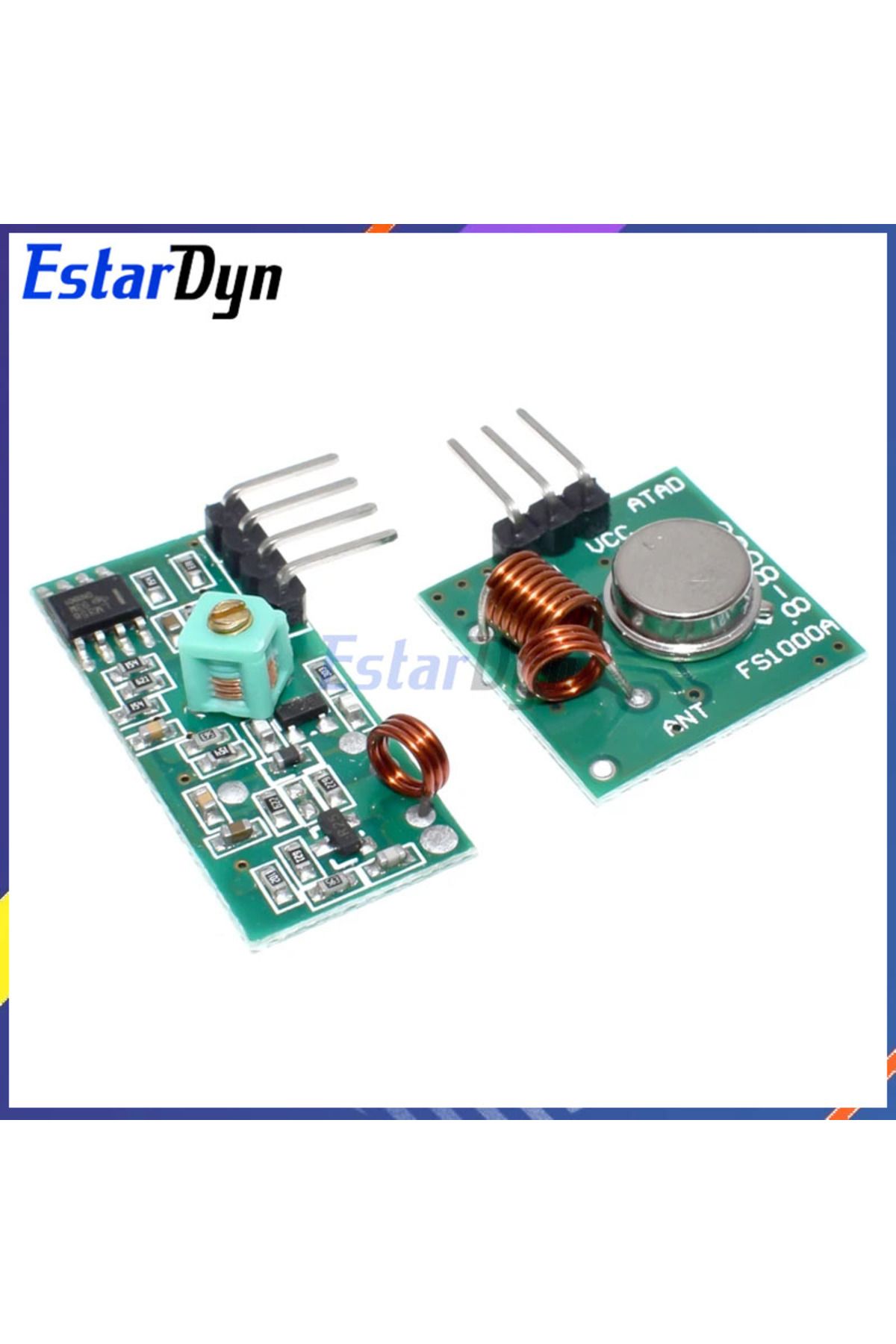

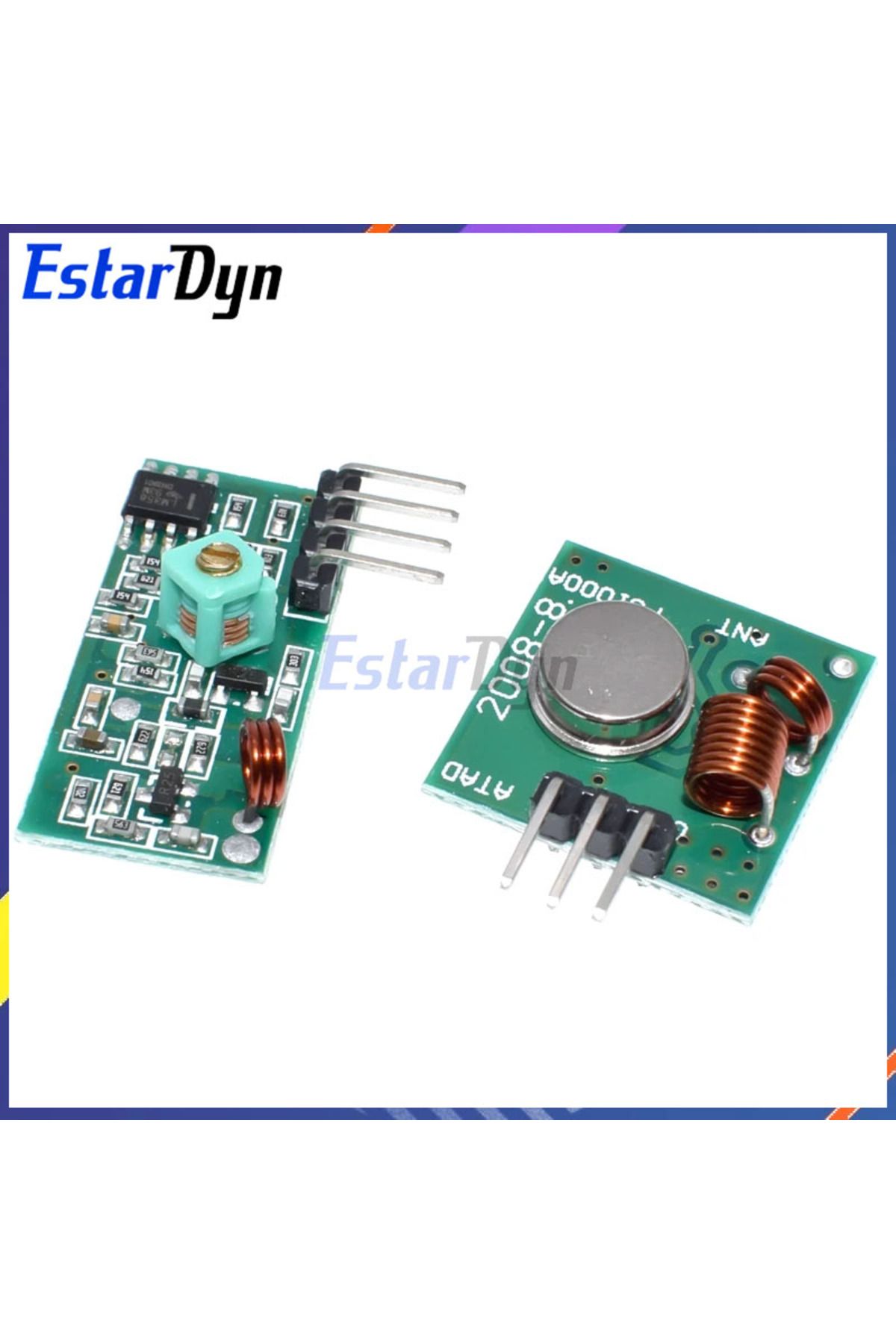

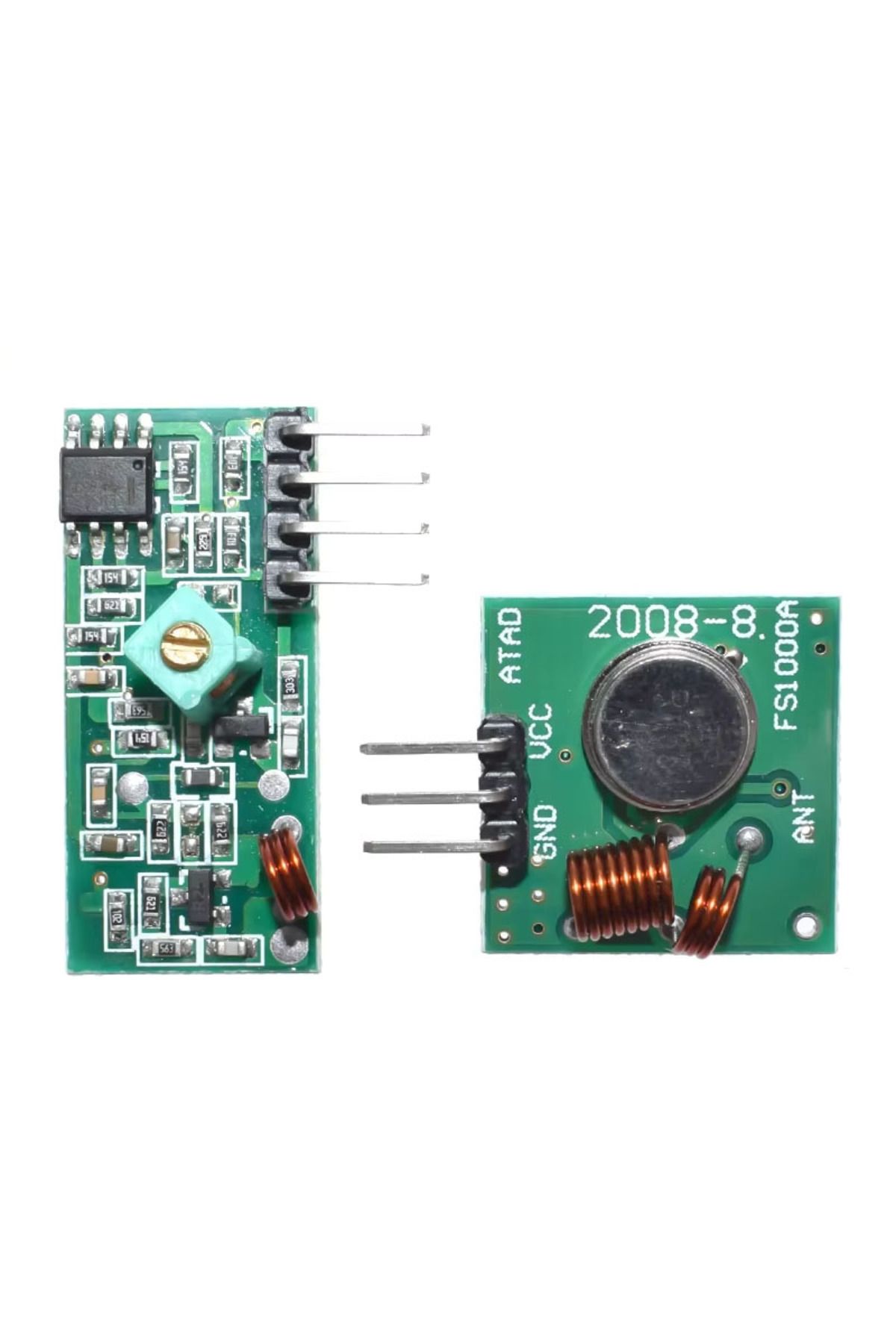

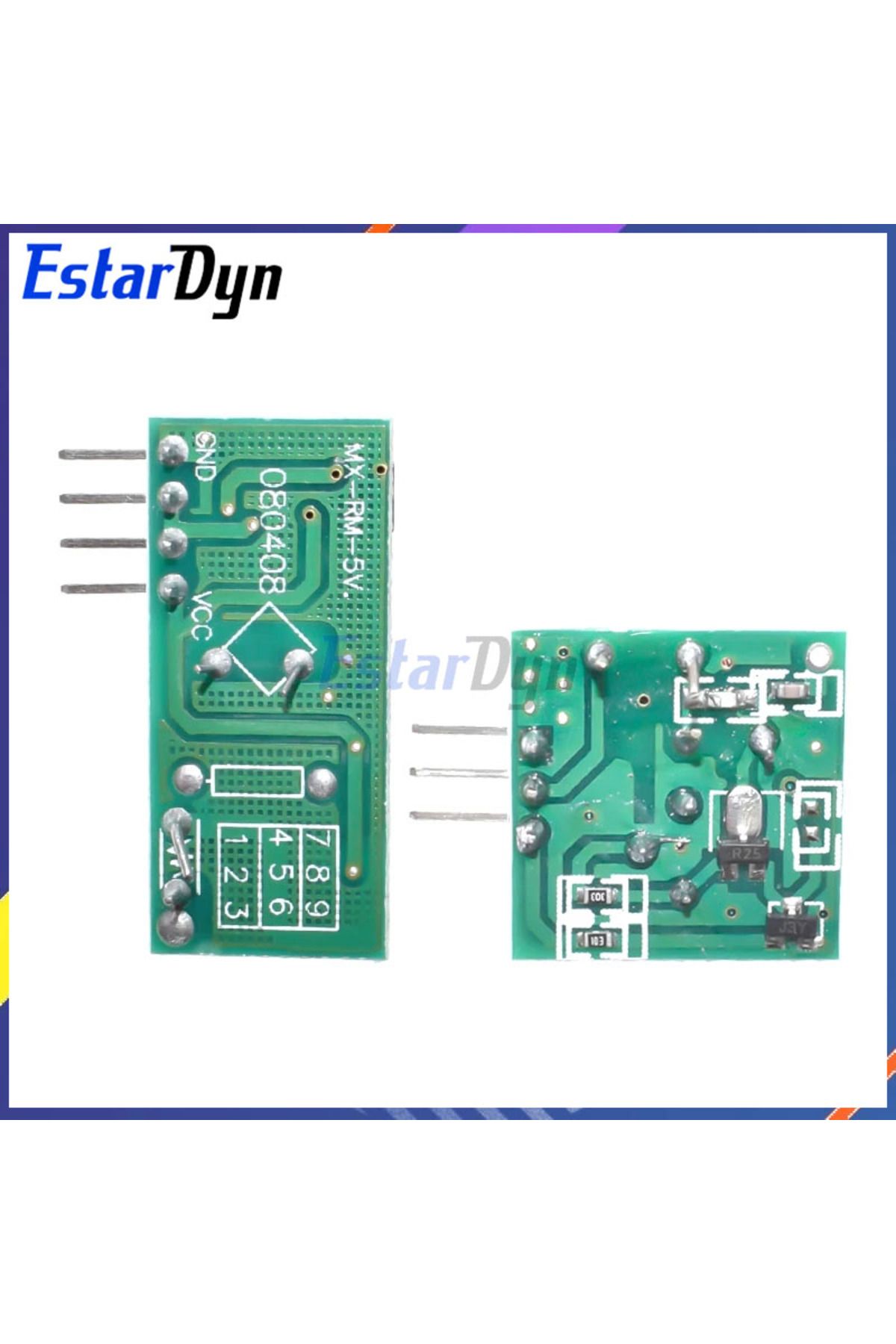

Estardyn Ask 433mhz Rf Wireless Transmitter Module And Receiver Kit 5v Dc For Arduino Raspberry P...

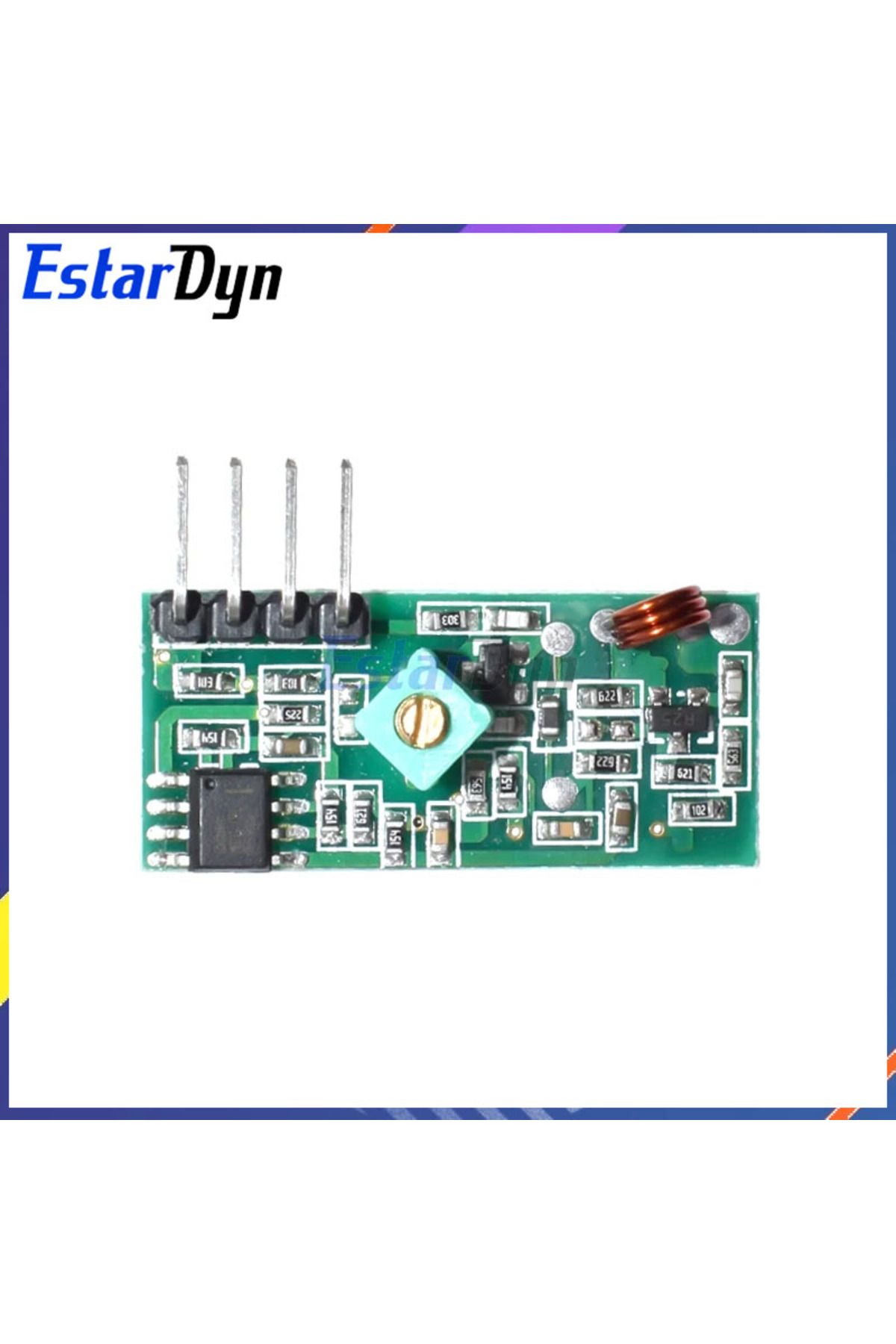

Receiver
- Model:MX-05V

- Voltage:DC5V

- Current:4MA

- Frequency:433.92MHZ
- Sensitivity:-105DB
- Antenna:32CM single core wire,heliciform shaped

- Size:30*14*7mm

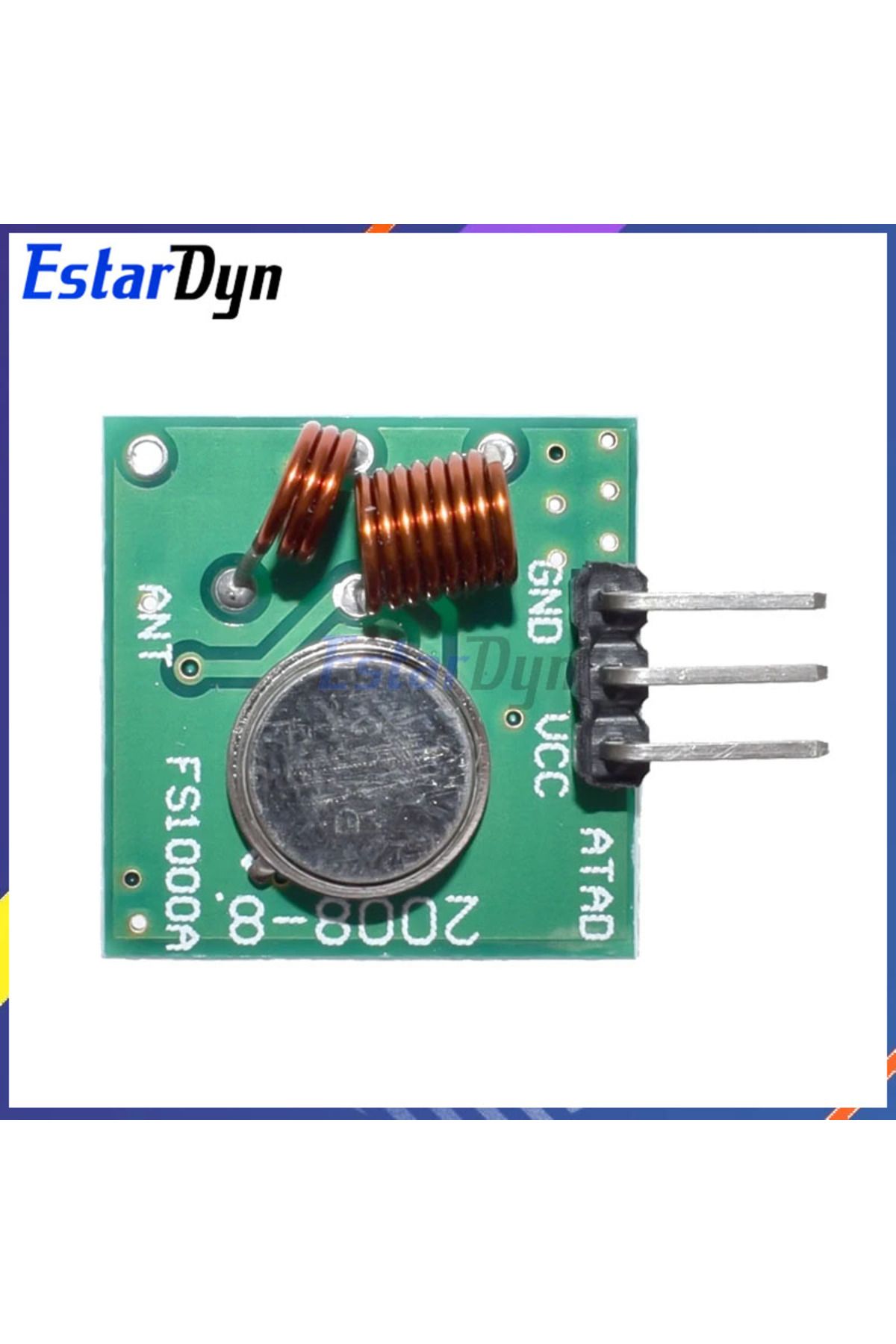

Transmitter:
- Model:MX-FS-03V

- Transmitter distance:20-200Meters(influenced the voltage)

- Voltage:3.5-12V
- Size:19*19mm

- Working mode:AM

- Transmitter speed:4KB/S

- Transmitter power:10mW
- Frequency:433M
- Attenna:25cm Single core wire or mutil-core wire
- Pin arrangement: left-right(DATA;VCC;GND)

Applications:
- Remote controller,receive modulr,car bugular alarm,Rolling door,window,remote control LED, Amplifer and so on.

Note:
- VCC Voltage should be comply with working voltage
- Antenna is very important for working voltage,and the length of the antenna is 17cm
- the placement of the antenna is also critical for the performance of receiver, unbend the antenna when you install it , and avoid shilder and high voltage
