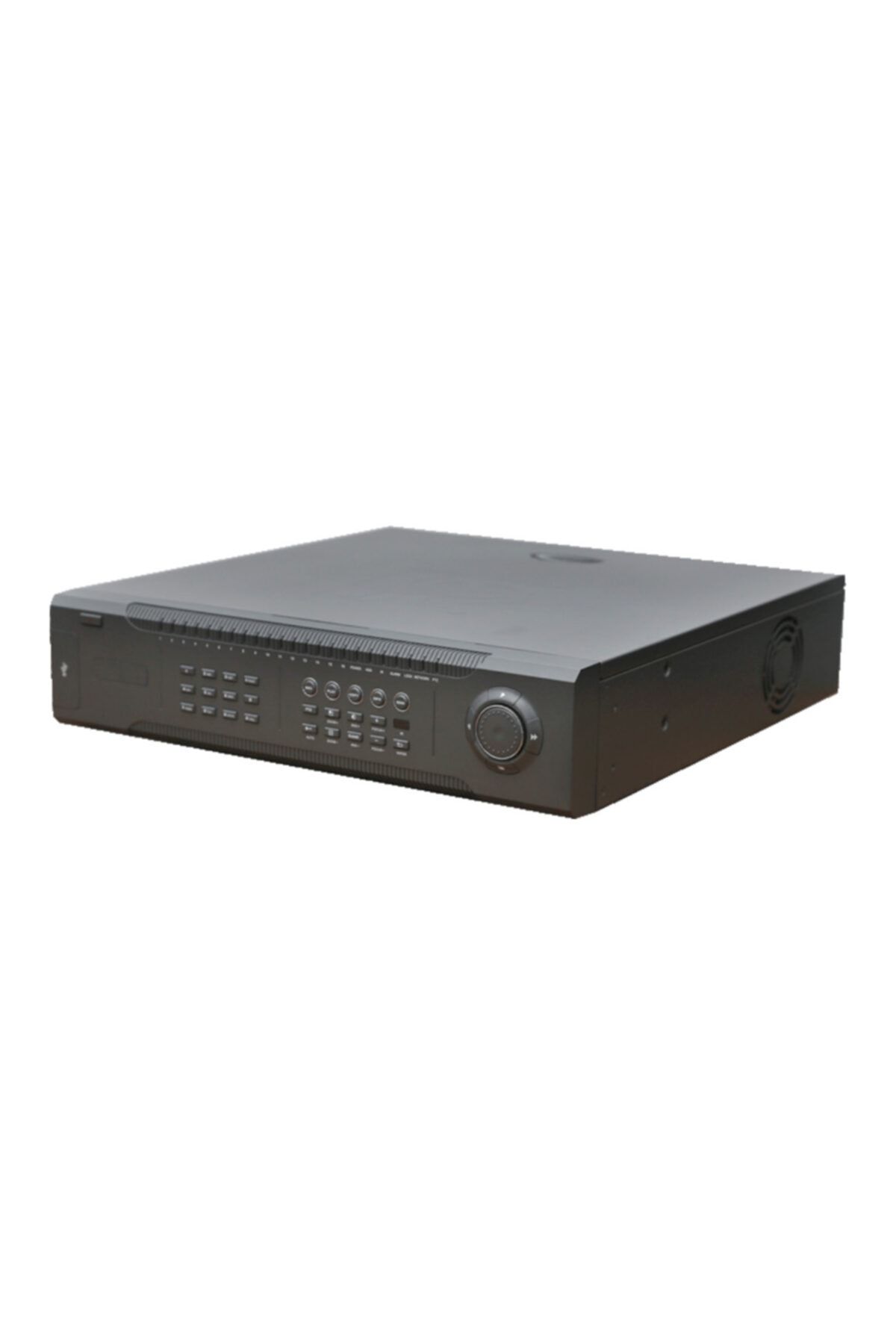

Product detailsOperating system embedded linux (embedded) functionalities pentaplex video input / output 8 inputs / 8 loop outputs / 8 matrix outputs (optional) hdmi output 1920*1080 / 1280*720 / 1440*900 / 1280*1024 / 1024*768 picture quality adjustable with 6 options for each channel audio input / output 8 inputs 1 output audio recording g 711 format, 16kbps monitor output 1 hdmi, 1 vga, 2 composite alarm input/output 8 inputs
4 output communication ports rs 232c, rs 422, 100/1000 ethernet, usb 2 0 enclosure / housing 2 u industrial type (electrostatic coating) power 110 220vac, 6 3a, 50~60hz compression h
264 format data size (bit rate) 32 kbps~2mbps (max 8mbps), user can set live view resolution 4ci/d1 (pal: 704*576, ntsc: 704*480) live view speed real time / real time d1 200fps. 720*576 (pal) 25fps / 704*480 (ntsc) 30fps half d1 200fps 720*288 (pal) 25fps / 704*240 (ntsc) 30fps cif 200fps 352*288 (pal) 25fps / 352*240 (ntsc) 30fps recording mode continuous, alarm, motion, scheduled, motion detection sensitivity adjustable zone determination recording quality low, medium, high, super, very good recording search date & time, fast recording search, event, recording search status of received backups next to backup files hb player convantor and monitoring software simultaneously playback speed from backup recording multi-function playback dual stream yes backup 4 x usb 2. 0, 1xsata, 2 x 1 gigabit lan external backup external hdd, dvd
Rw, flash memory hdd status 8 internal hdd 1 piece e Sata 10 external hdd 1 x e Sata total 32 tr data archiving ethernet, remote access, raid unit, ftp, server, ie dts (daylight saving time) automatic / manual / on/off network connection type rj 45 / ethernet network lan (local network), wan (wide area), internet network transmission speed 1 ch 25 fps / separate selection for each channel alarm transmission e. Mail sending / voice warning / full screen ddns support yes event memory alarm, motion, video signal loss, system, power loss, hdd error, connected users control
