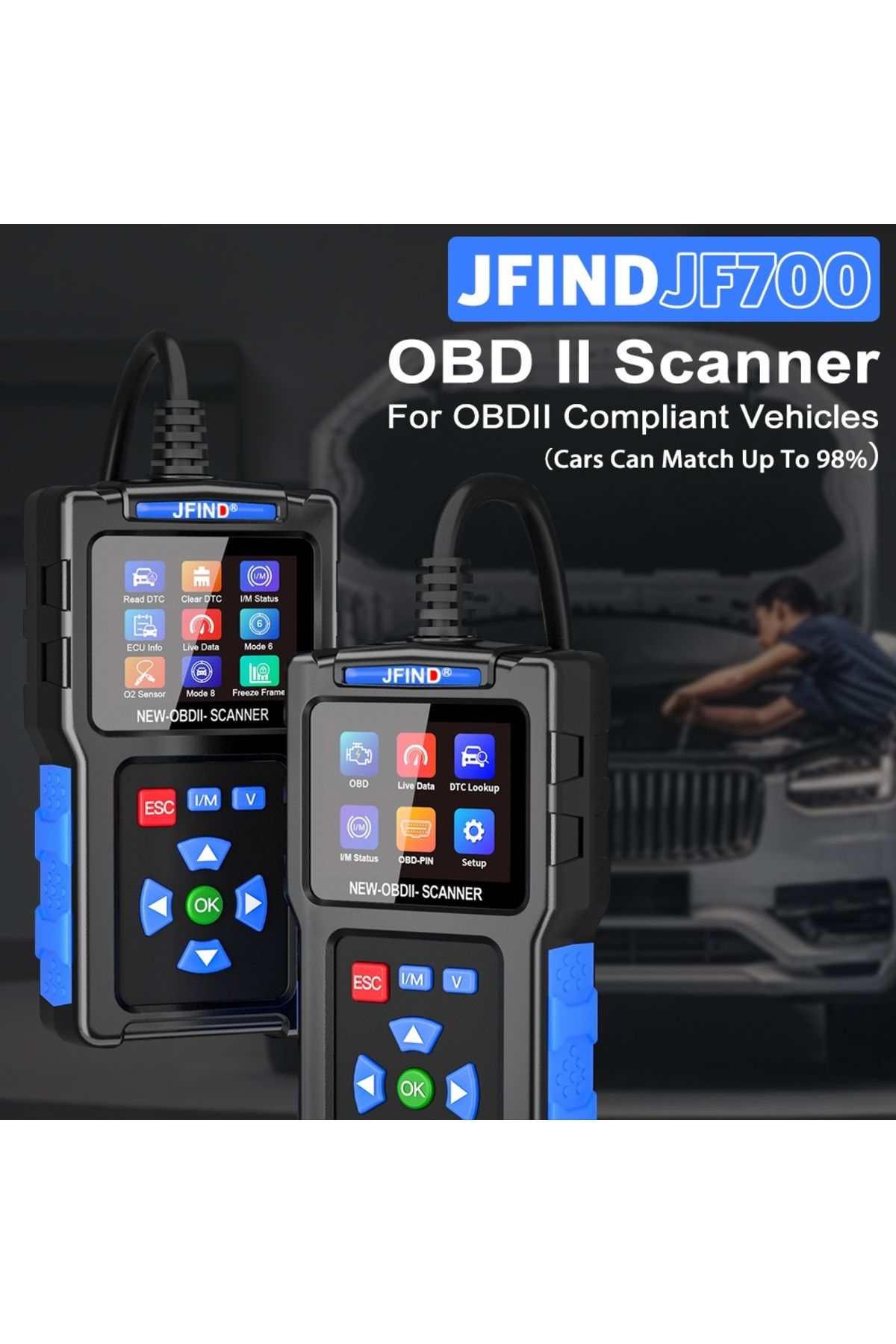

JFIND JF700 Universal OBD2 Scanner, Engine Trouble Code Reader, CAN Diagnostic Tool for All OBDII

Product description

Jfind jf700 universal obdii scanner jfind jf700 is a multifunctional obdii scanner designed to quickly and efficiently diagnose engine issues, erase fault codes, and display real-time data streams from your vehicle.

it supports all obdii protocols and is compatible with most of the cars produced from 1996 to now.

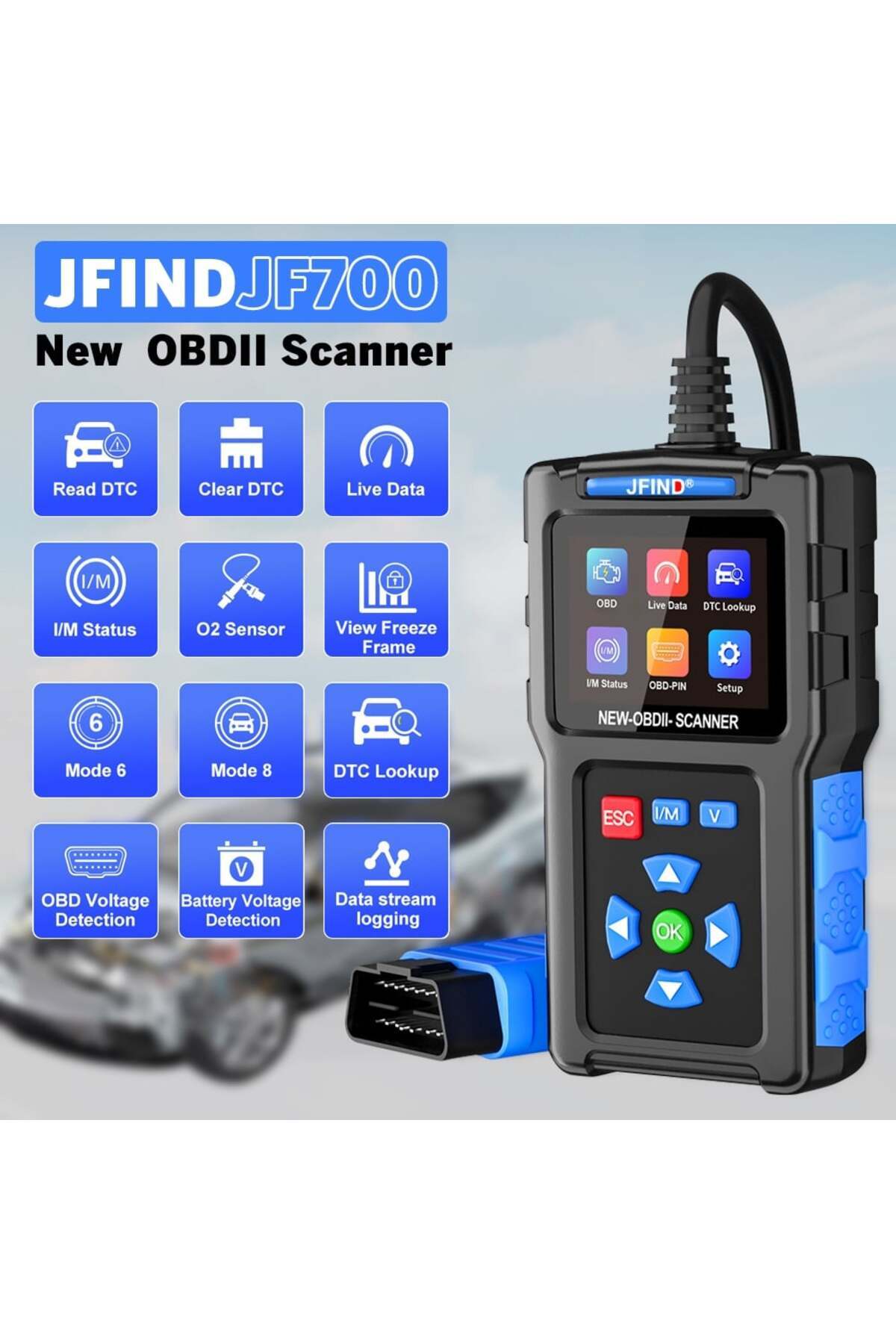

Basic functions: read and clear fault codes (dtc): ability to read and clear fault codes (dtc) to help identify and resolve engine issues quickly.

Real-time data: view real-time information about vehicle performance, such as engine rpm, battery voltage, o2 sensor status, and more.

Obd voltage detection: monitors the voltage at the obd pins for quick detection of vehicle electrical problems.

Advanced features: support for mode 6, mode 8, freeze frame display, and full engine diagnostics.

Wide compatibility: supports up to 98% of obdii compliant vehicles worldwide.

technical specifications:supports obdii protocols: including can, iso9141, kwp2000 and others.

screen: high-definition color lcd.

Connection: easy connection via obdii port.

Additional functions: dtc lookup, battery voltage detection, data stream recording.

User manual i.

introductionthe jfind jf700 scanner is a professional automotive diagnostic tool that allows you to quickly and easily access your vehicle's data through the obdii port.

It is compatible with most vehicles manufactured after 1996 and can be used to read and clear fault codes, monitor real-time data, and check overall engine health.

Ii.

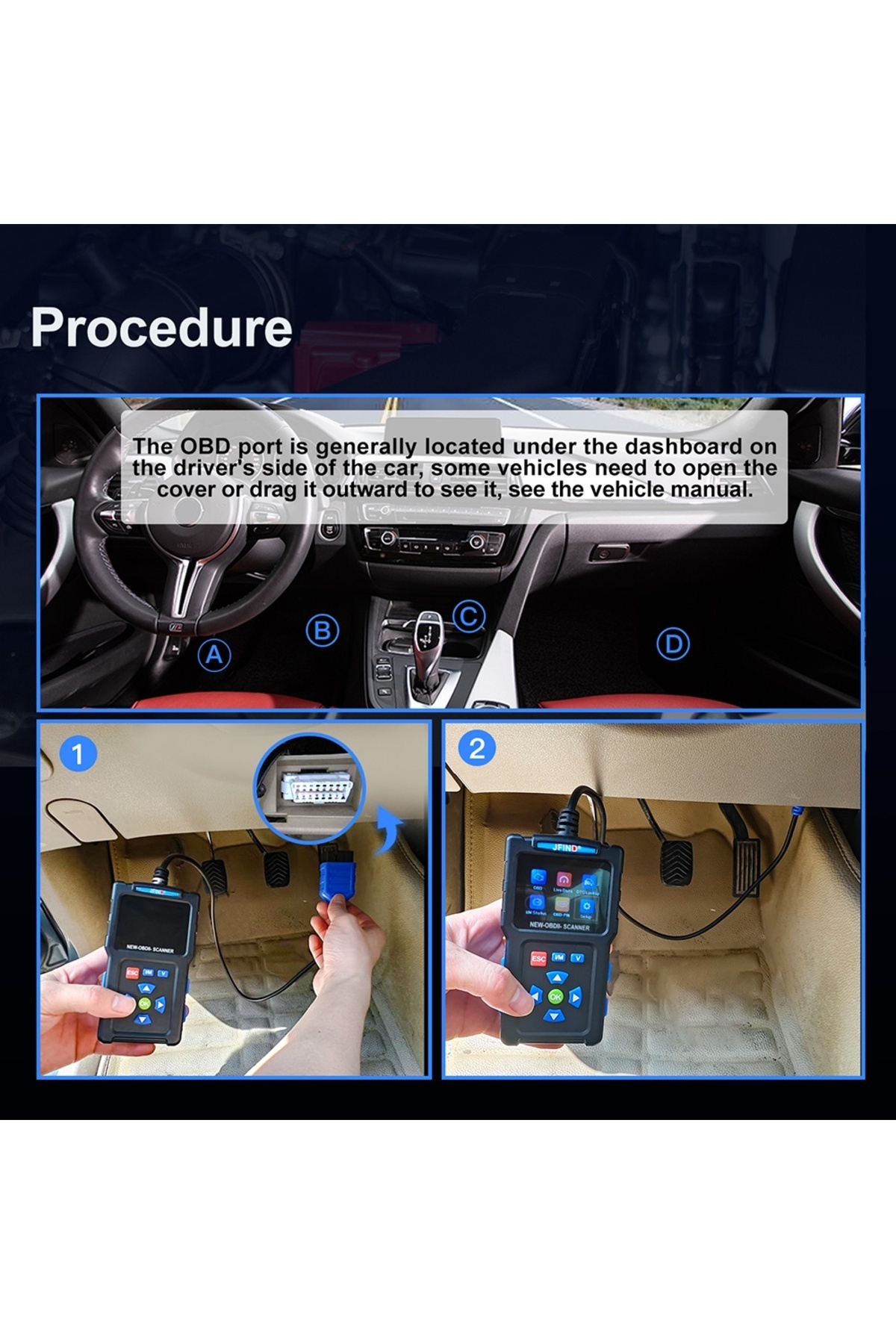

using stepsconnect the scanner: find the obdii port of your car, usually under the dashboard, on the driver\\\'s side.

Connect the jfind jf700 scanner to the obdii port.

start the vehicles engine.

Scanner operation: read fault codes (dtc): select the &quot

read dtc&quot

option to view the fault codes stored in the vehicle's ecu.

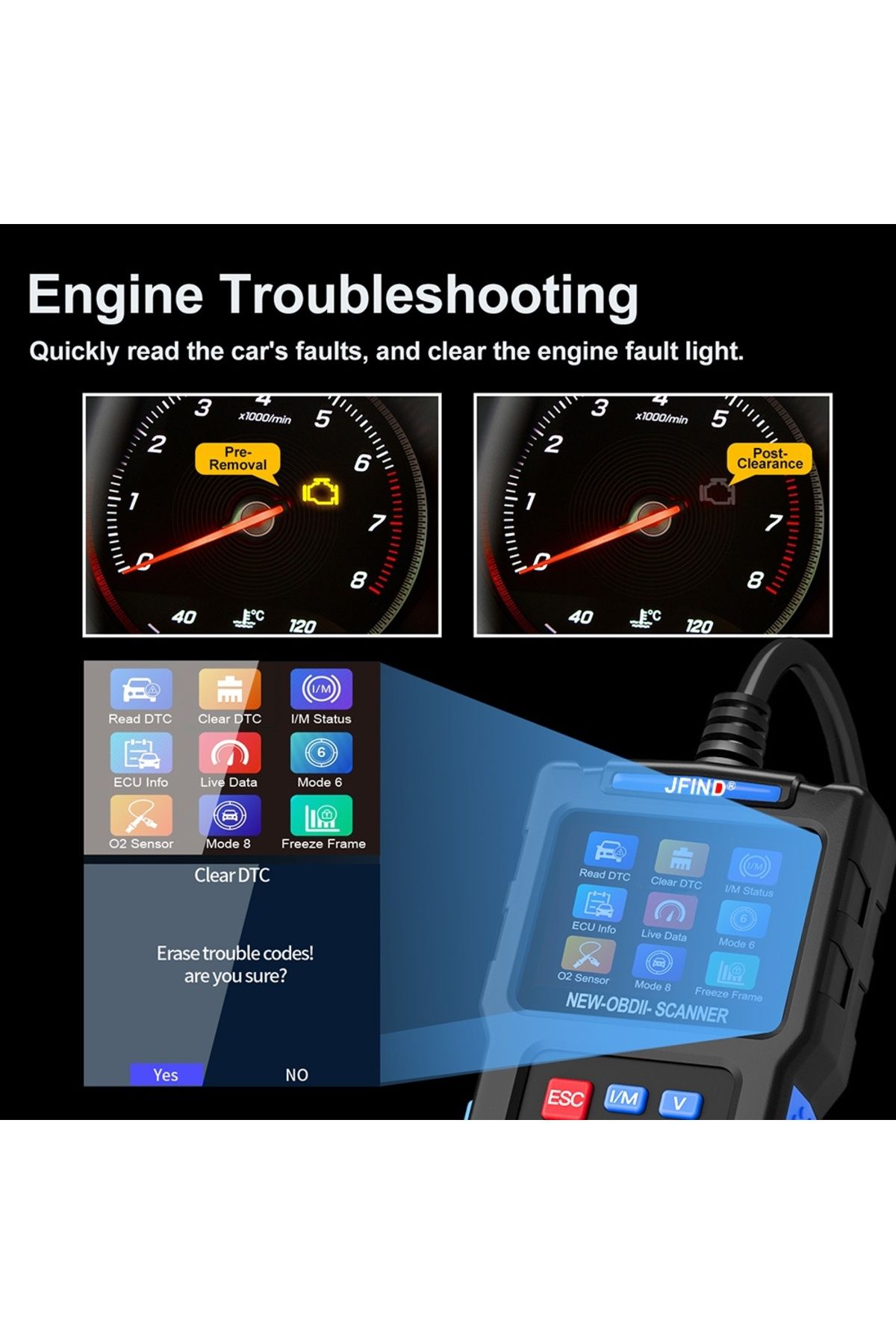

Clear dtcs: select &quot

clear dtcs&quot

to clear the diagnostic trouble codes and reset the check engine light.

Real-time data monitoring: select &quot

live data&quot

to view real-time information such as coolant temperature, engine rpm, and more.

Dtc search: if you encounter a fault code, you can use the &quot

dtc search&quot

feature to learn more about it.

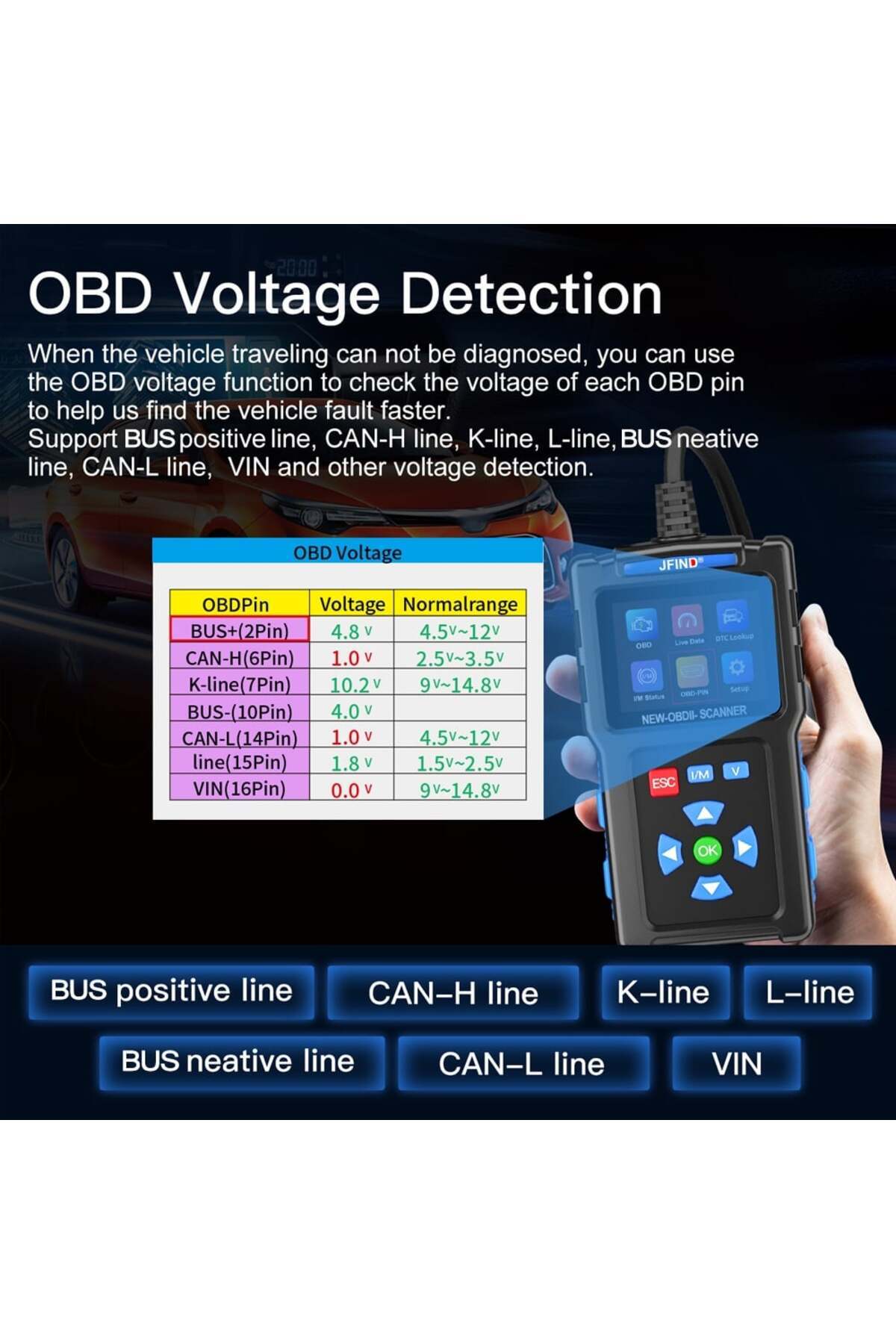

Enhanced features: obd voltage detection: checks the voltage of each obd pin for electrical faults.

Data stream record: the record function allows you to save vehicle performance data for further analysis.

Iii.

care &amp

storage keep the scanner in a dry place and away from excessive heat.

clean the screen and case with a soft dry cloth.

iv.

Support and 2 year : the product is covered by a 2-year against all kinds of manufacturing defects.

In case of a malfunction, please contact the distributor with your order number or invoice.

technical support: contact our technical support team with any questions or troubleshooting.

you will get help within 24 hours.
