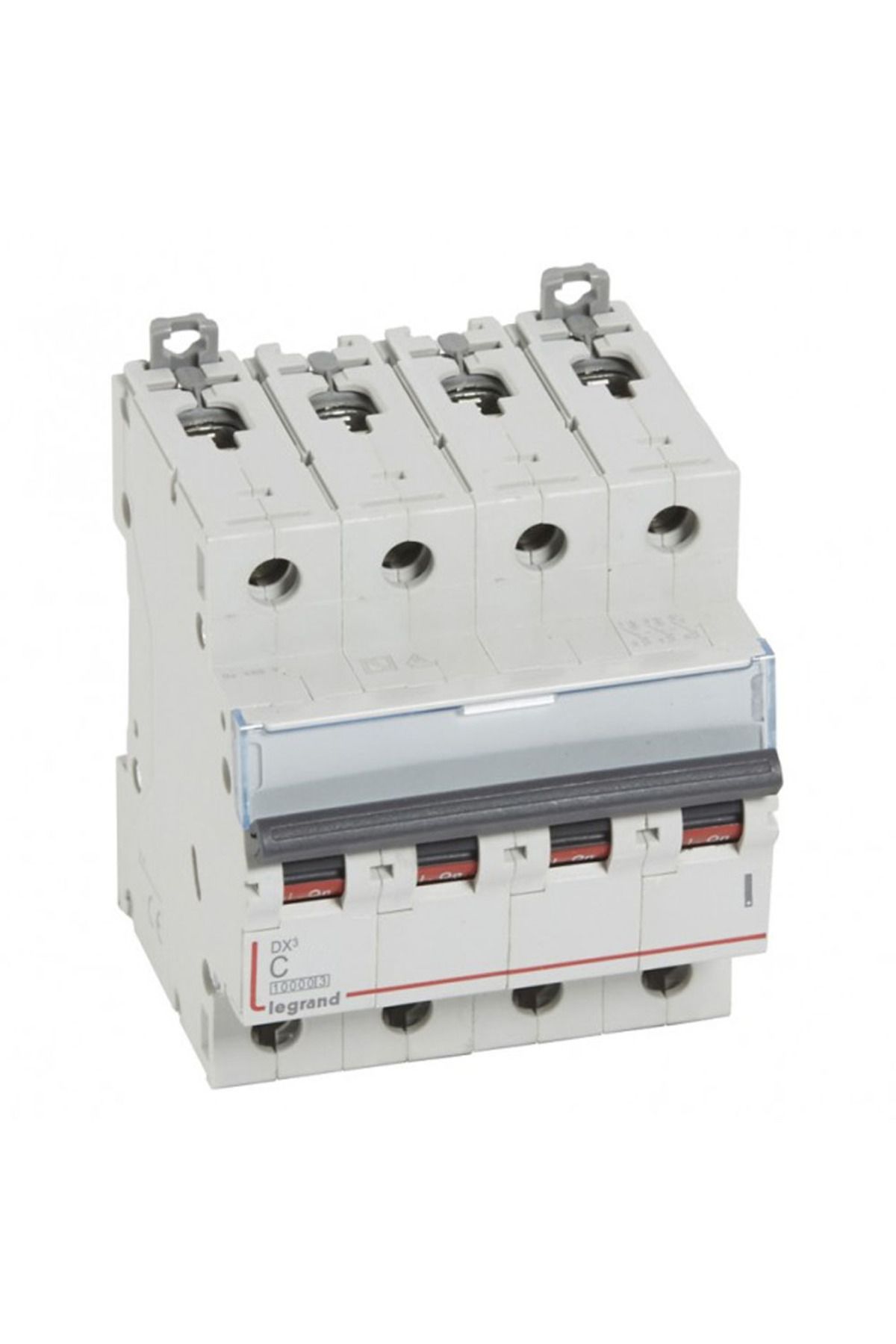

Legrand 4x16a C Type Automatic Fuse 10ka409336

Small current breaker, also known as automatic fuse, is a kind of switchgear material switch manufactured to protect any circuit from high circuit current and short circuit current.

when the current through the electrical circuit exceeds a certain level or in any short-circuit arc condition, it uses the automatic fuse feature and immediately shuts down and disconnects the electrical connection. Legrand automatic fuses protect the electrical circuit they are connected to against excessive current and short circuits.

they allow the circuit to be easily switched on and off. Ts 5018 has three different types, b, c, and d, according to iec 60898/en standards.

during the short circuit, they trip without delay, b types 3 to 5 times the rated current, c types 5 to 10 times, d types 10 to 20 times.

2, 3, 4-pole automatic fuses, in case of a fault occurring in any phase, disconnect the devices they are connected to thanks to their mechanism.

type b: used in household lighting, socket and control circuits type c/d: transformer, inductive loads such as a large number of fluorescent lamps.

device that trips the circuit in case of any fault is activated by lifting the lever up. The arm independent opening pattern will re-open as long as the fault continues.

product specificationsamper (a): 16pole: 4type: c typekilo amper (ka): 10 ka
