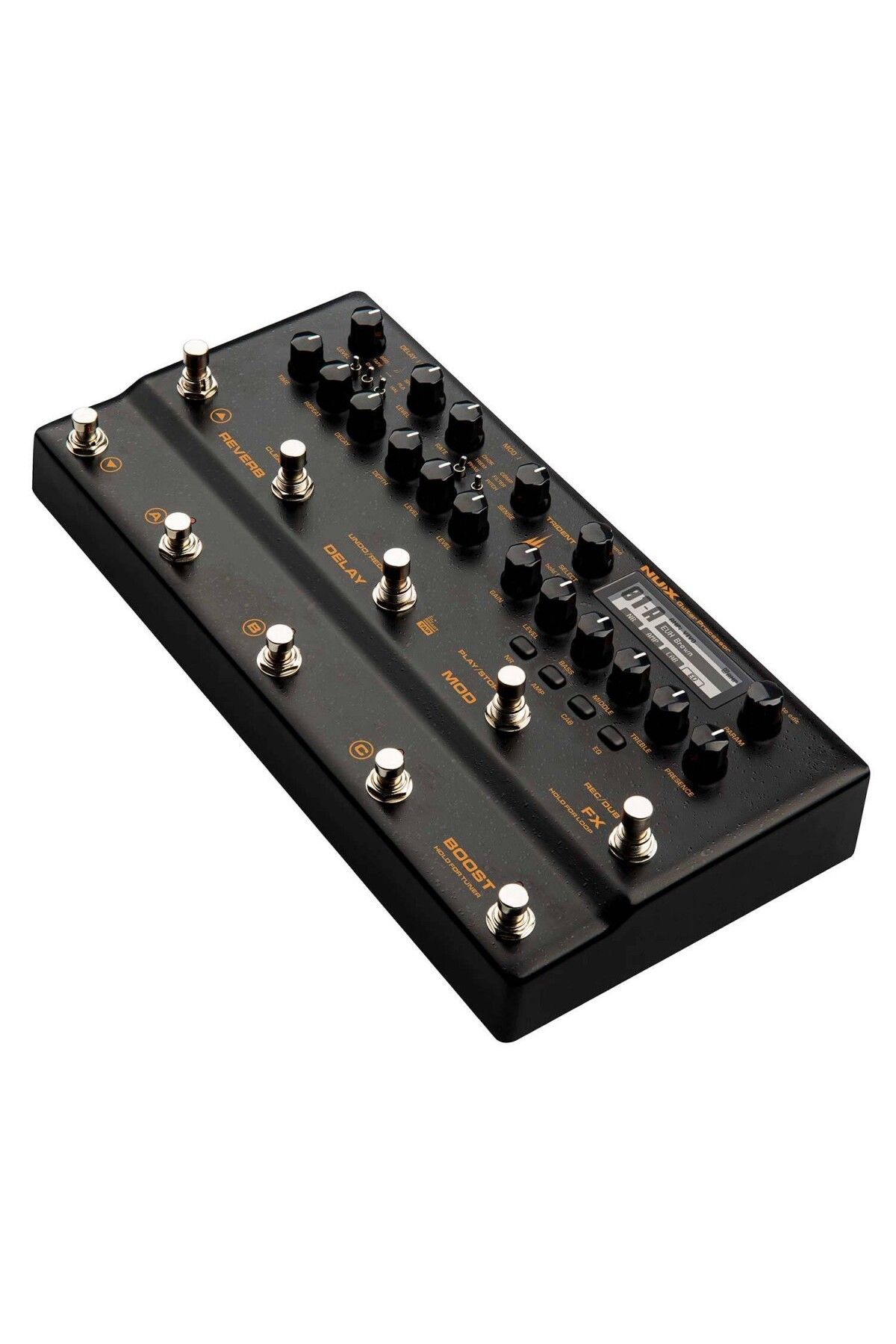

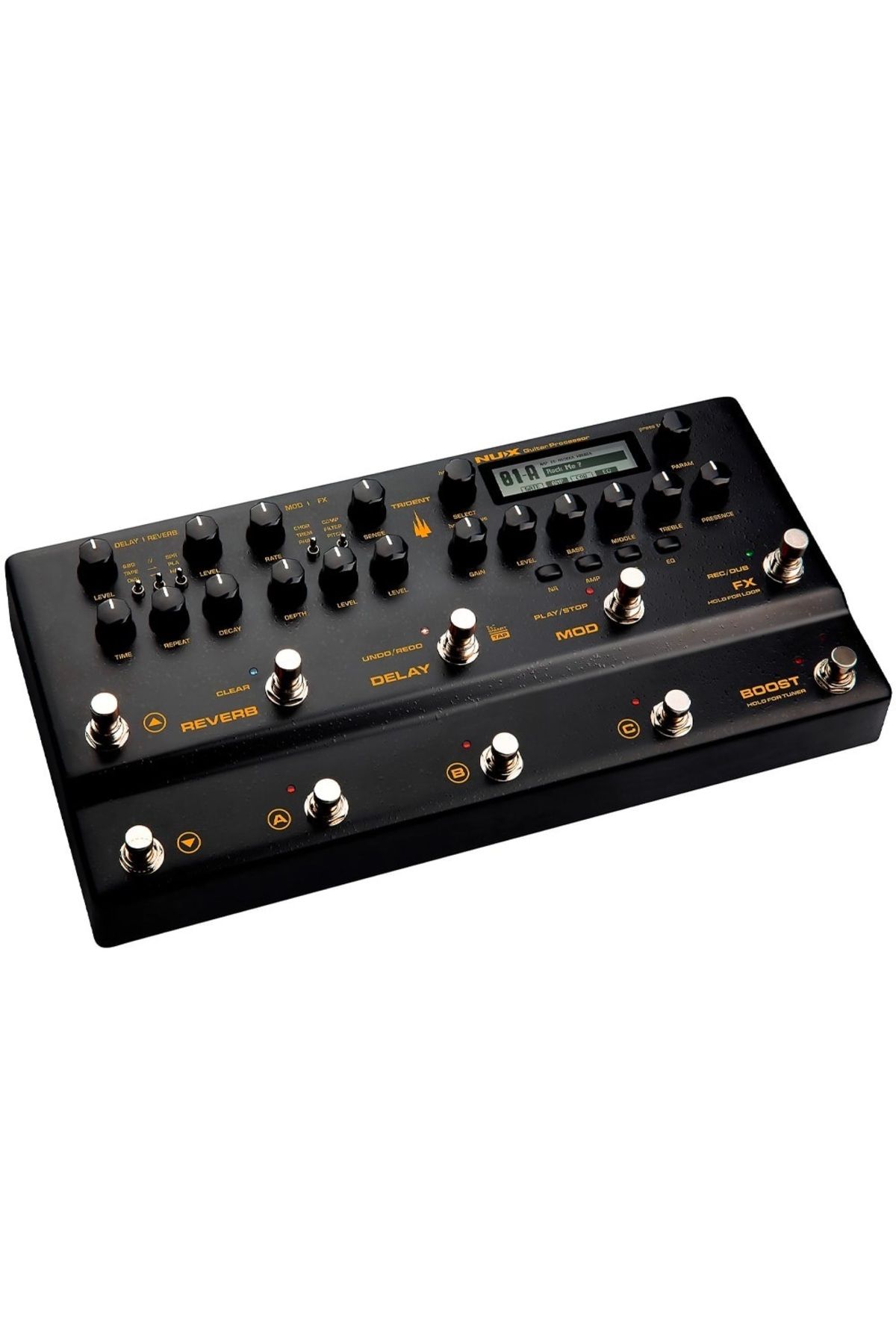

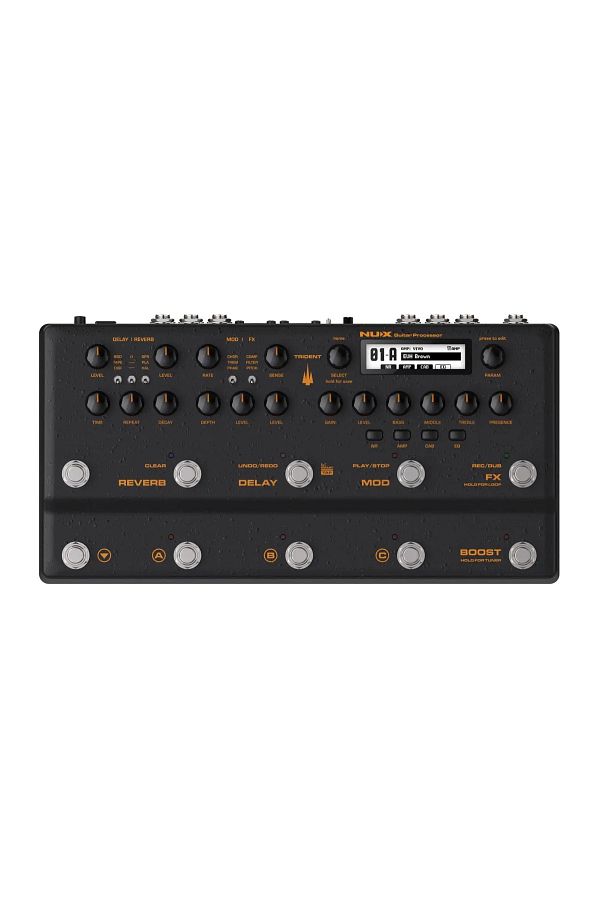

Nux Trident Guitar Effect Processor

Nux trident guitar effect processor nostalgia and nuance tones.

meet the trident!perfect for live applications, the trident offers a plethora of i/o options.

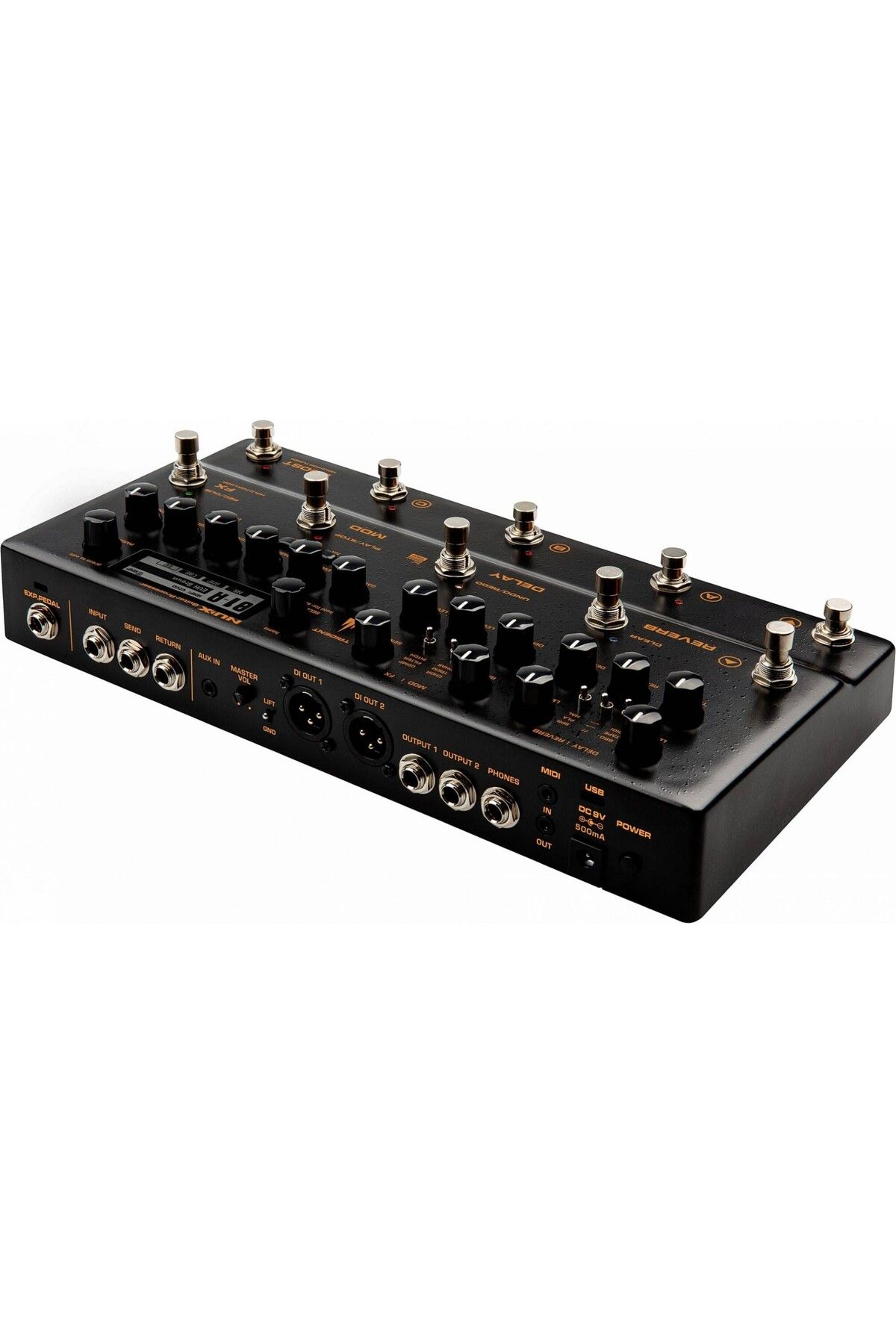

send/return effect loop for external effects, 2 balanced xlr outputs to pa system, phones output for monitoring, exp.

pedal input to add an expression pedal, master vol pot and midi in / out.

built like a tank! Trident uses one-piece die-cast aluminum chassis, built for solid, durable and vivid performance.

premium amp modelingtrident includes our newly updated iconic tsac-4k amp modeling (white box physical modeling algorithm).

tsac-4k amp modeling algorithm is twice as complex as previous versions.

this led us to design a new hardware platform with 2 dsps, one handling all the effects and the other the amp modeling algorithm.

in addition, trident uses premium a/d and d/a converters and analog circuits to achieve a clear sound with low noise levels.

this premium amp modeling algorithm comes fully loaded with features and functions.

just like their real counterparts, the included 27 amp features high/low inputs and the option to input in 4 different combinations.

most popular cabin simulations.

trident is a powerful ir loader and contains 27 cabins ir at 1024 sample resolution.

fine-tune your cabinet tone with 4 microphones (3 positions each) to adjust ir low cut / high cut / level.

finally, expand your ir library with 3rd party irs and 32 additional slots. Trident ™ Editing software will automatically convert the ir format on your pc or mac.

a powerful studio device!trident is also a powerful studio device and an excellent usb-c sound card for guitar.

trident editor to edit patches and set usb routing ™ You can download the from the product page.

record your trident tracks to your favorite daw, or use it as a re-amp device to give new life to previously recorded vocal tracks.

attention!! To bring you the best usb streaming dynamic range, trident does not control the volume of the computer.

when using trident as a usb sound card, remember to adjust your computer volume from “minimum” to desired volume.

usb port: firmware updates, usb audio recording, or trident ™ Connect the usb cable to your computer for editing software editing.

note: connect the usb cable to the computer and press and hold the up & reverb foot buttons to turn on trident, then you can enter dfu (device firmware update) mode to perform a firmware update.

for more details, please visit the product page to check the firmware update guide and ensure you have the latest firmware and trident ™ Download editing software.1/8” midi in / out jack: connect an external midi device here with the 1/8” to 5-pin midi adapters in the product box.

note: do not connect a sound device here.

doing so will cause malfunctions.

master vol pot: master vol potentiometer adjusts the overall output level.1/4" send/return : connect external pedals to the send/return .

send impedance: 1k ω.

return impedance: 100k ω.
