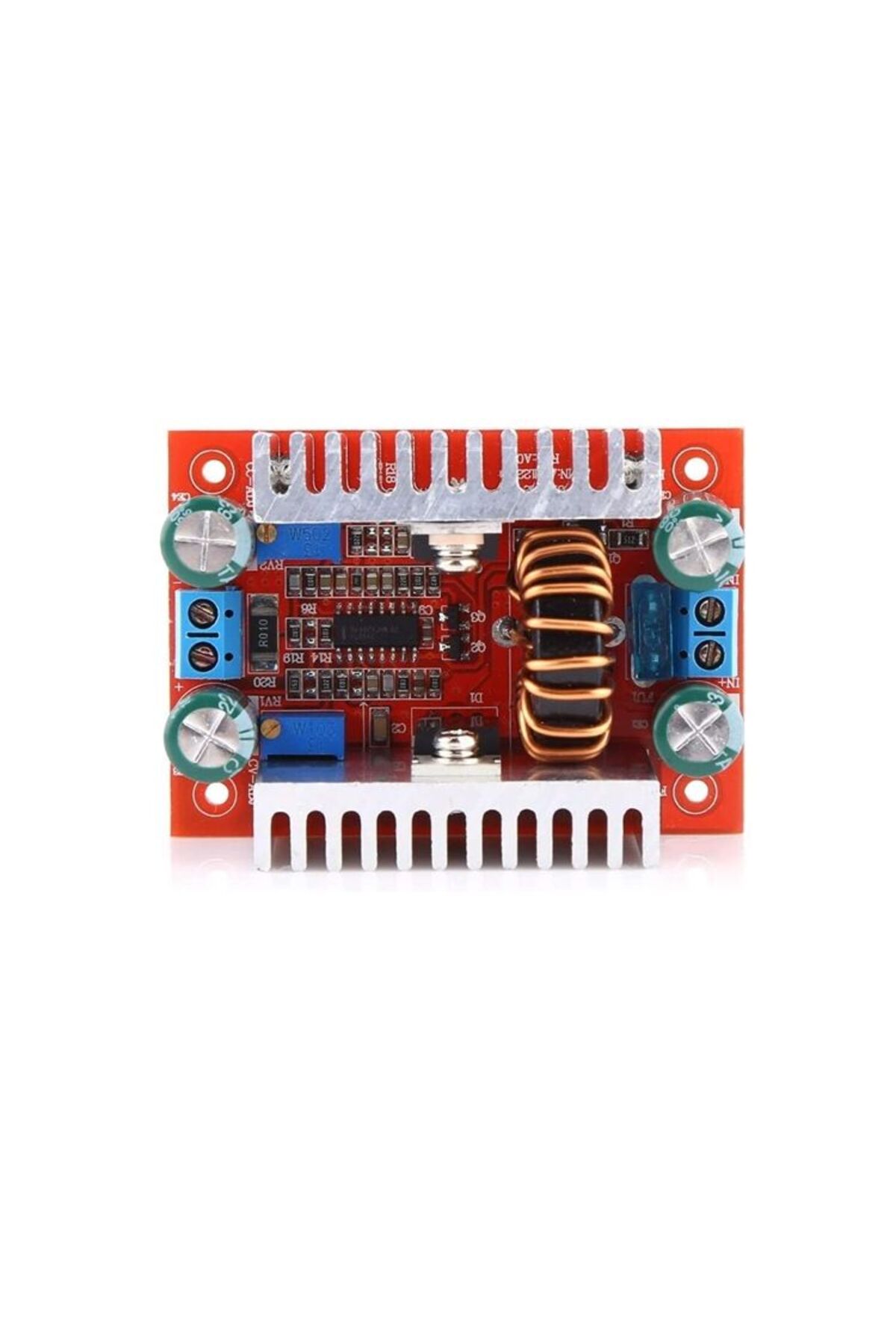

OEM 15 A adjustable boost voltage source

Product description

Input voltage: 5V - 40V

Output voltage: 1.2V - 35V

Input voltage must be higher than output voltage by at least 1V

Output current: 0.2A -9A (for maximum current you need to improve heat dissipation)

Maximum output power: 150W

Efficiency: up to 95%

Ripple: 50mV (measured at 24V -> 12V, 5A)

Leakage current: 20mA (measured at 24V -> 12V)

Adjustable output current and voltage.

Dimensions: 65 x 47 x 23.5 mm.
