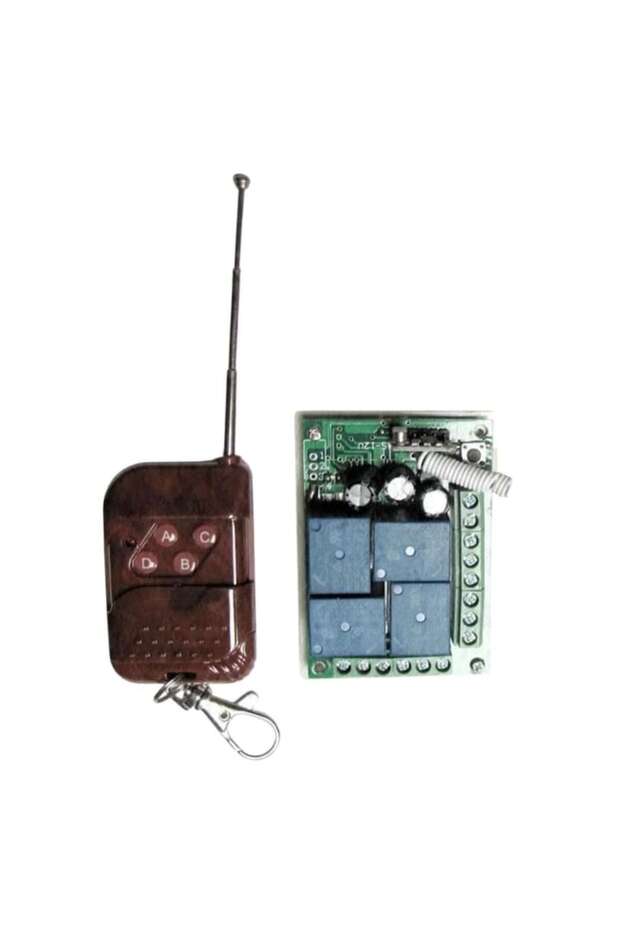

OEM 4-channel remote control + receiver for automations
-40%
(incl. VAT)
Shipped from: Romania
Trendyol's commitments
Easy and free return in 30 days.
Highlighted features:
OEM 4-channel remote control + receiver for automations reviews
Product details
Product description
Operating voltage: DC12V.
Operating current: 30mA.
Operating frequency: 315 / 433MHz.
Transmission distance: 200m.
Configured without self-holding.
Configuration is done as follows: 1) Without self-holding – press and hold the mode button until the LED lights up, then flashes once and turns off (approx.
9-10 seconds), after which press again for 2-3 seconds until the LED remains lit and activate a button on the remote control.
2) With self-holding – press and hold the mode button until the LED lights up, then flashes twice and turns off (13-14 seconds), after which press again for 2-3 seconds until the LED remains lit and activate a button on the remote control.
3) With keyboard-type self-holding (when one relay is activated, the others are turned off) – press and hold the mode button until the LED lights up, then flashes three times and turns off (17-18 seconds), after which press again for 2-3 seconds until the LED remains lit and activate a button on the remote control.
Additional info
- EU Responsible details are here.
- Please refer to the actual product packaging or the user manual for information regarding storage conditions.
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Sold and fulfilled by .
- Barcode No: PMP1D1UB240HFXG796
