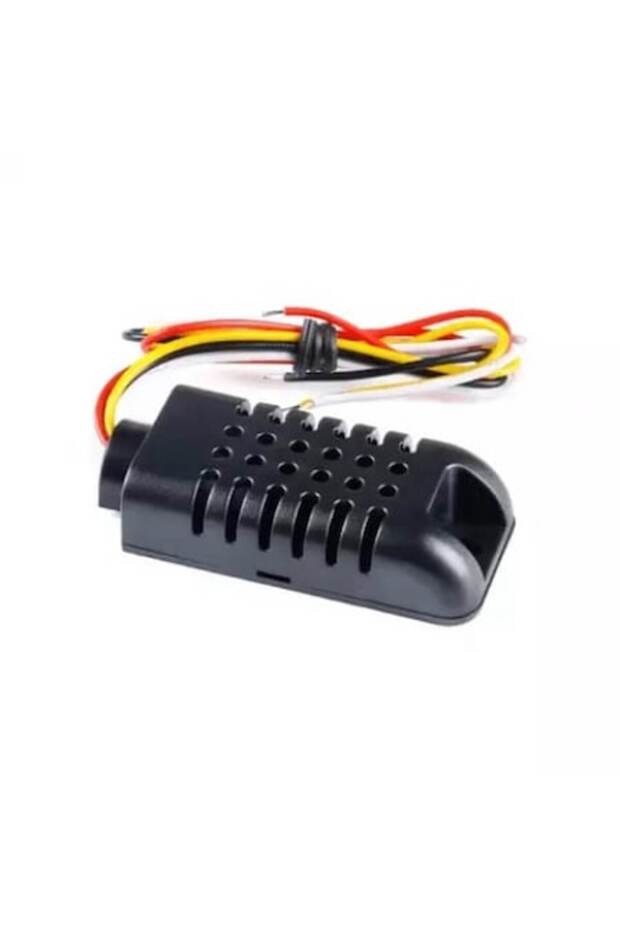

OEM AM2301A Temperature and Humidity Sensor
(incl. VAT)
Shipped from: Romania
Trendyol's commitments
Easy and free return in 30 days.
Highlighted features:
OEM AM2301A Temperature and Humidity Sensor features
Seller information
OEM AM2301A Temperature and Humidity Sensor reviews
Product details
Product description
The AM2301A module is designed to ensure high reliability and stability.
For measurements, the module uses a capacitive sensor, managed by an 8-bit microcontroller.
The module communicates on a single bus, has low power consumption, and ensures good communication with a connection cable that can reach a length of 20m.
High precision, low consumption, reliability, and high stability recommend the module for both hobby applications and professionals.
Technical characteristics include: Supply voltage 3.3V - 5.2V, for maximum performance 5V is recommended
Average current consumption 300 µA (500 µA during measurement, 50 µA in standby)
Temperature measurements between -40°C and +80°C
Humidity measurements between 0%RH and 99.9%RH
Resolution 0.1 for both temperature and humidity
Accuracy +_ 3 RH +_0.3 ºC
Interval between measurements 2s.
