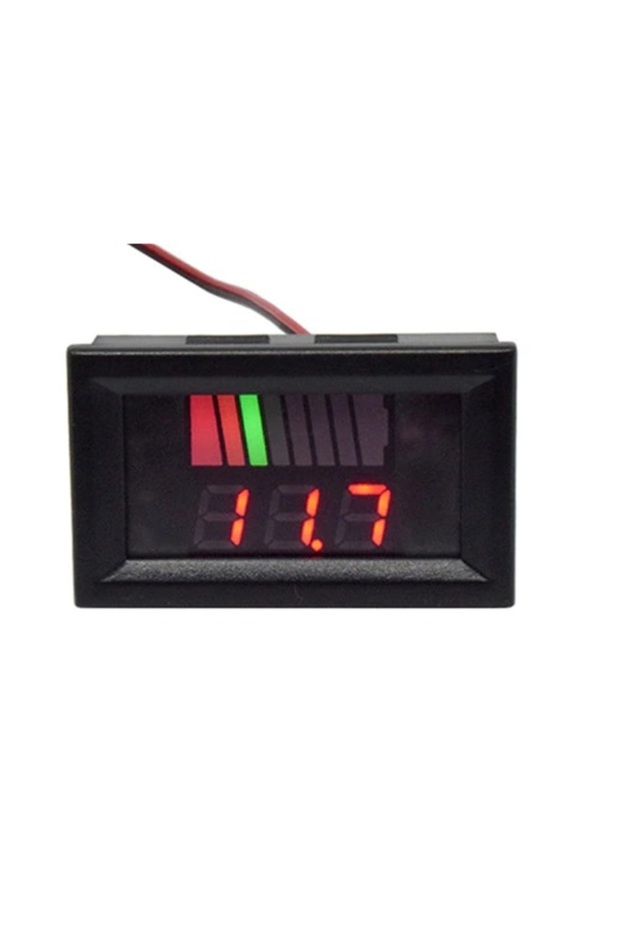

OEM Digital voltmeter 12-72V, red display, reviews
Product details
Product description
The module can be configured by entering the settings menu where we can select: cell type: Pb (P), Li-Ion (L), LiFePO4 (F), custom settings (diy) number of cells in the pack: Pb 12V (1-7 which offers a range of 12V - 84V) number of cells in the pack: Li-Ion 3.7V (2-23 which offers a range of 7.4V - 85.1V) number of cells in the pack LiFePO4 3.2V (2-27 which offers a range of 6.4V - 86.4V) custom battery custom configuration: diy backlight continuously on / backlight off after 10 seconds Configuration instructions are in the product gallery.
Specification: Input voltage: 5V - 100V DC Operating current: <15mA, Sleep mode: <10uA Supported cells: Pb, Li-Ion, LiFePO4, custom configuration Measurement accuracy: +/- 1% Voltmeter indication resolution: 0.1V Display type: LCD Backlight: white Measurement frequency: 500 ms Cable length: 20 cm Display dimensions: 59mm x 29mm Module dimensions: 64mm x 36mm x 14mm
Additional info
- EU Responsible details are here.
- Please refer to the actual product packaging or the user manual for information regarding storage conditions.
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Sold and fulfilled by .
- Barcode No: 5940733142699
