Product description

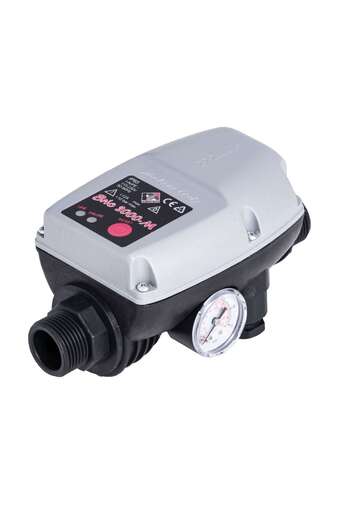

The brio2000 - m electronic pressure switch is a device that ensures pumps start and stop automatically. it activates when the pressure drops below a minimum of 2 bar, typically triggered by opening a tap, and deactivates when the flow is stopped through the system, such as by closing a tap. If the water supply is cut off for any reason, the brio2000-m performs a crucial function by stopping the pump, thus protecting it from running dry.
in addition, the thermal pressure can automatically restart through a built-in timer to control the presence of water.
the integrated pressure gauge facilitates pressure control within the system and facilitates the detection of pressure losses in the system. Technical data: power supply: 115-230vac ± 10% 50/60 hz
consumption in standby mode: <
0.25 w
max current: 12 a
pressure range: 1 ÷ 3.5 bar
expansion tank factory set pressure: 1.0 bar
maximum water temperature: 50 ° C
minimum ambient temperature: 5 ° C
maximum ambient temperature: 50 ° C
storage temperature: -10 ÷ 50 ° Hydraulic connections: 1” fe
protection degree: ip 65
manometer: ø 40 mm 0:12 bar/0:170 psi
recommended torque for cable terminals: 2.5 ÷ 3.0 nm
recommended torque for hydraulic connections: max. 8.0 nm.
when the device is turned on, it runs the pump for about 15 seconds.
the pump runs each time it senses a pressure drop in the system, for example, when a tap is turned on. Unlike traditional water systems equipped with pressure switches and expansion tanks, the minimum flow rate is what stops the pump instead of the cut-off pressure.
the device reduces cycling of pumping under low flow conditions by delaying the pump off for 7-15 seconds.
