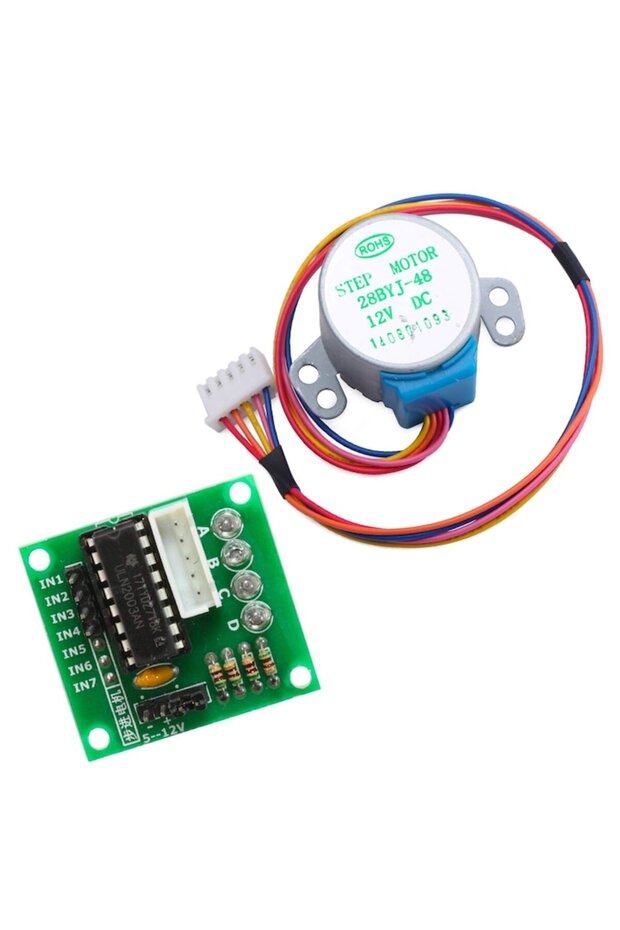

OEM Geared Stepper Motor, 12V, With Control System, ULN2003, Multicolor

Product description

A popular, easy-to-use stepper motor with a built-in 64:1 gearbox with a dedicated ULN2003 control system.

Thanks to the public library, motor control will not be a problem even for beginner DIY enthusiasts.

Connecting the motor to the controller via a five-wire XH-05 connector.

Motor specifications: Model: 28BYJ-48 Supply voltage: 12 VDC Current consumption per coil: 100 mA Number of phases: 4 Gear ratio: 64:1 Number of steps per full rotation: 64 Rotation angle per step: 5.625 ° Torque: 0.3 kg * cm (0.03 Nm) Frequency: 100 Hz Resistance: 50Ω ± 7% (25Ω) Motor diameter: 28 mm Shaft diameter: 5mm with chamfers Mounting hole distance: 35 mm Control module specification: Chip: ULN2003 Power supply: 5V - 12V Channel operation signaling via LED diodes Dimensions: 35mm x 32mm Video instructions: A popular, easy-to-use stepper motor with a built-in 64:1 gearbox with a dedicated ULN2003 control system.

Thanks to the public library, motor control will not be a problem even for beginner DIY enthusiasts.
