OEM Push Button 25mm/24V White Led reviews
Product details
Product description

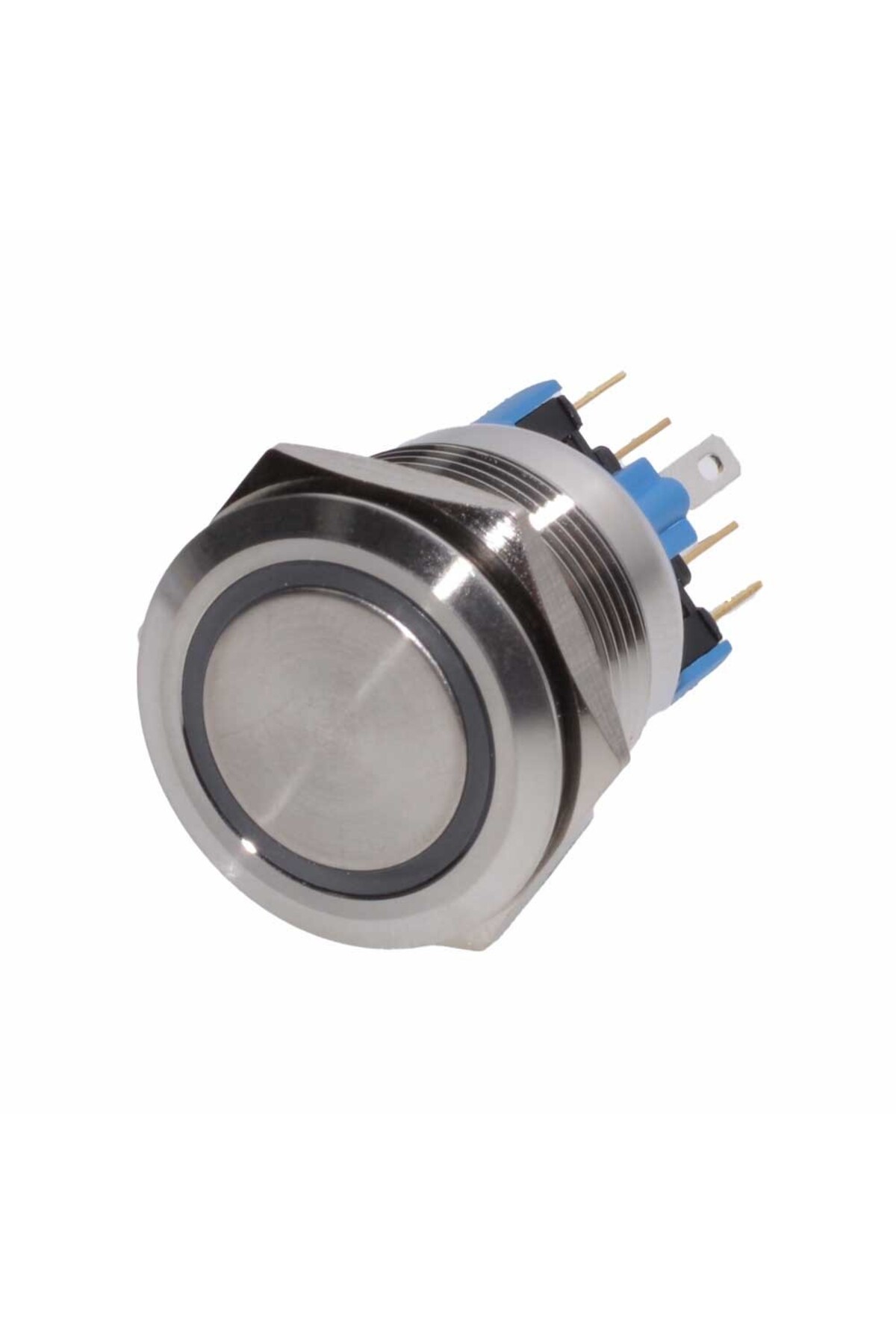

Push Button 25mm/24V White Led Metal push button with a diameter of 25mm and white light, switch that can be used for elevator control panels and other equipment compatible with this type of push button.
Vandal-proof and waterproof metal button powered by 24V.
This push switch has 6 power connection pins.
Push button with mechanical return action that can be used for: automatic car washes and washing pumps.
The button has a flat face and a ring of light surrounding the push button, having superior quality due to the finish.
Removable nut and rubber sealing ring.

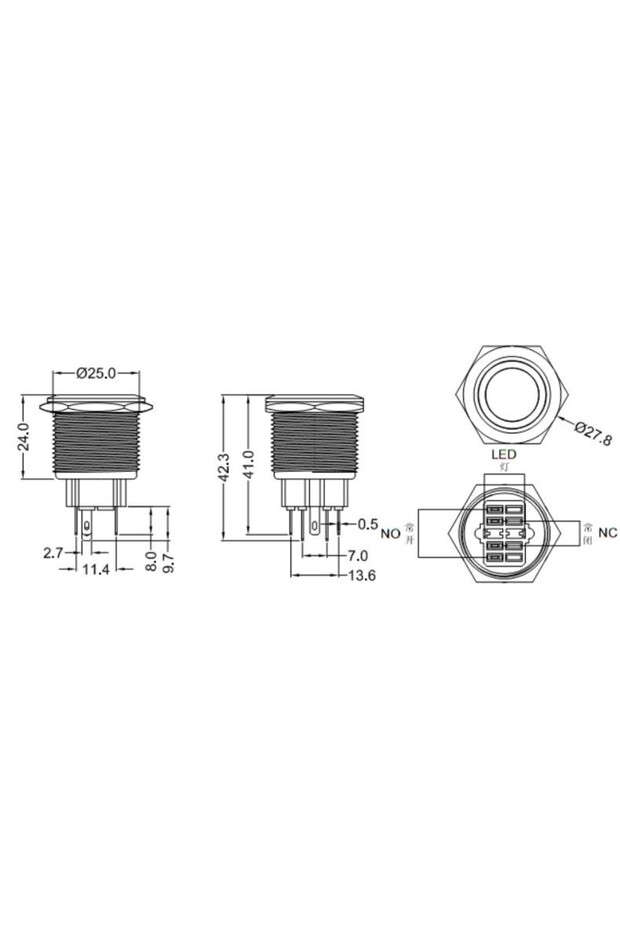

Silver alloy contacts Technical details: Diameter: 25mm Function: Momentary Light Color: White Lamp life: 50000h Connection terminals: 6 Pins 1NO 1NC Protection level: IP67 / IK09 Working pressure: 500gf Mechanical life: 500,000 cycles Dielectric life: 200,000 cycles Operating temperature: 20 - 85C Torque size: 5-14Nm Duty cycle: 2.0mm Contact resistance: 50mOhm Max Insulation resistance: 1000mOhm Max Product made under quality standard: CE, Rohs Package contents: 1 x Push Button 25mm/24V White Led Packaged: 20pcs/box
Additional info
- EU Responsible details are here.
- Please refer to the actual product packaging or the user manual for information regarding storage conditions.
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Sold and fulfilled by .
- Barcode No: 0781499724942
