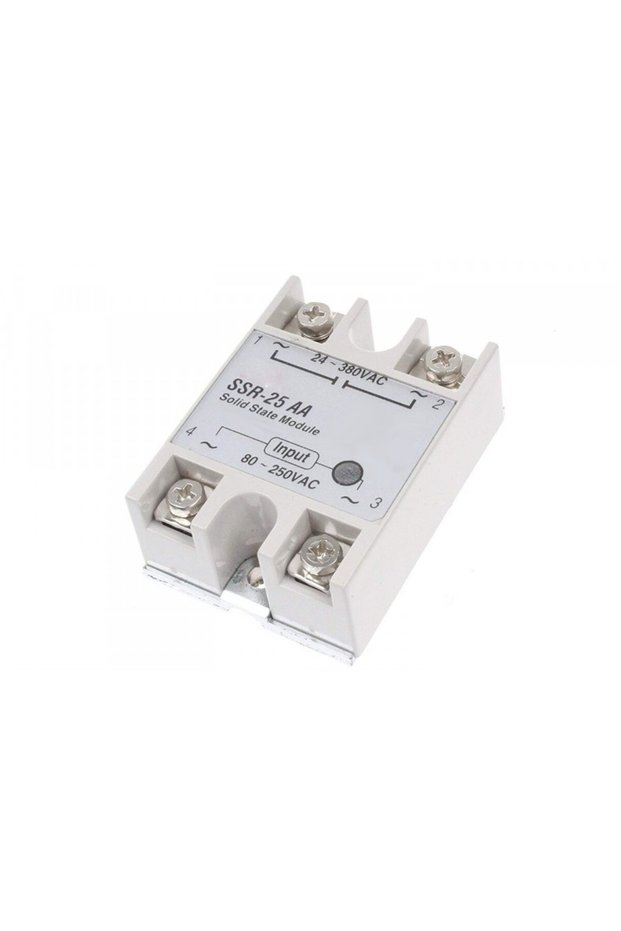

OEM Solid state relay SSR-AA input 80–250 VAC Maximum amperage: 60A

Product description

Product description: This solid-state relay is used in automatic switching in electricity, the chemical industry, plastic injection, packaging, incubators, ovens, and other industrial equipment. The product image is for illustrative purposes only. the actual product may be from a different brand, but it will have the same technical specifications. CAREFUL! The value of the current indicated in the relay is the maximum value that it can support for a very short time (seconds). When designing a circuit, always consider the nominal current rating of the relay, ensuring it's not exceeded by more than half the specified value. (for example, an ssa-25a relay should not be used in circuits exceeding a current rating of 12.5a.) The product needs proper cooling based on the level of intensity of the current being used.if the cooling is not properly provided, it will malfunction and will automatically void the warranty. For cooling, you need to add a radiator (not included) and ensure proper airflow: the case is ventilated or use a fan (not included). We do not guarantee functionality in command circuits based on led systems or fluorescent lamps. the load used must be purely resistive or inductive (e.g., incandescent bulbs, power resistors, motors, etc.). The aa type ssr requires connection to the output of an ac electrical load as per the diagram provided below: Technical specifications: Product name Solid state relay Type Ssr–aa Material Metal, plastic, electrical components Control method Shutter release at 0 (zero-crossing trigger) Working voltage (input) 80~250 vac 50/60 hz On/off voltage Open＞45v, close＜35v Nominal current Half of the value indicated on the relay (25a-90a)/2 Triggering current 5.0ma / 110vac max Current leaks 3 ma Working voltage (output) 24–380vac Voltage drop 1.6v / 25°c Response time On＜20ms, off＜20ms Maximum reverse voltage (before breakdown) 600 vac Maximum current/short time (s) Value indicated on the relay (25a-90a) Mounting holes sizes Small diameter: 4mm, large: 7 x 4.3mm Dimensions 64 x 45 x 23 mm. Color Silver, Gray Weight About 110g Dielectric resistance 2.5kvac / over 1min Isolation power Above 50mω / 500vdc Model guide 1. Product Ssr: single phase s.s.r Tsr: three phase s.s.r 2. Output current 25=25a 40=40a. 60=60a 90=90a. 3. Working voltage at the input L: 4 ~20 ma D: 4 ~32 vdc A: 80 ~ 250 vac V: the variable resistance 4. Working voltage at output A: alternating voltage (ac) D: constant voltage (dc) Parcel contents: 1pcs solid state relay 25a-90a aa

Additional info

• EU Responsible details are here.
• Please refer to the actual product packaging or the user manual for information regarding storage conditions.
• A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
• Sold and fulfilled by
  GroundStudio
  .
• Barcode No: 6427854002808
