Product details
Product description

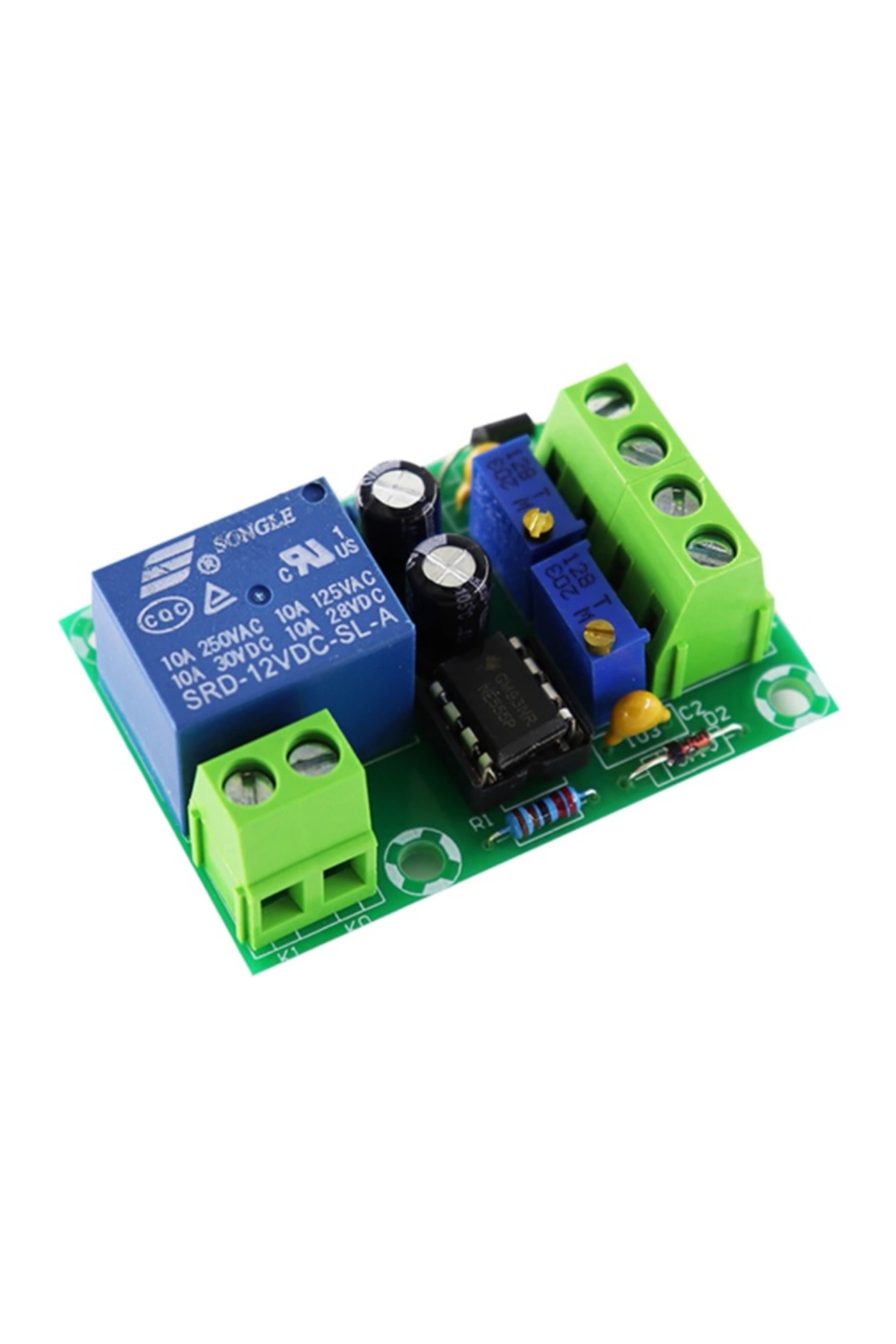

automatic emergency power switch that operates from 5V to 48V DC.
It will allow you to quickly switch to power from another source, for example, a battery, in the event of a power outage in the network.
A built-in relay that supports connected devices up to 280 W DC.
There is no need to connect a separate power supply to the module, it consumes the current necessary to operate from the connected sources.
Screw connectors allow you to conveniently attach the wires of the power supplies and receivers.
The main power supply is connected to the DC+ and DC- connectors, when the module detects a power outage, it switches to the power supply connected to the BAT+ and BAT- connectors Specification: Model: YX860 Power supply voltage: 5V to 48V DC Maximum receiver voltage: 48V DC Maximum receiver power: 280W Maximum current: 10A Dimensions: 61mm x 30mm x 18mm
