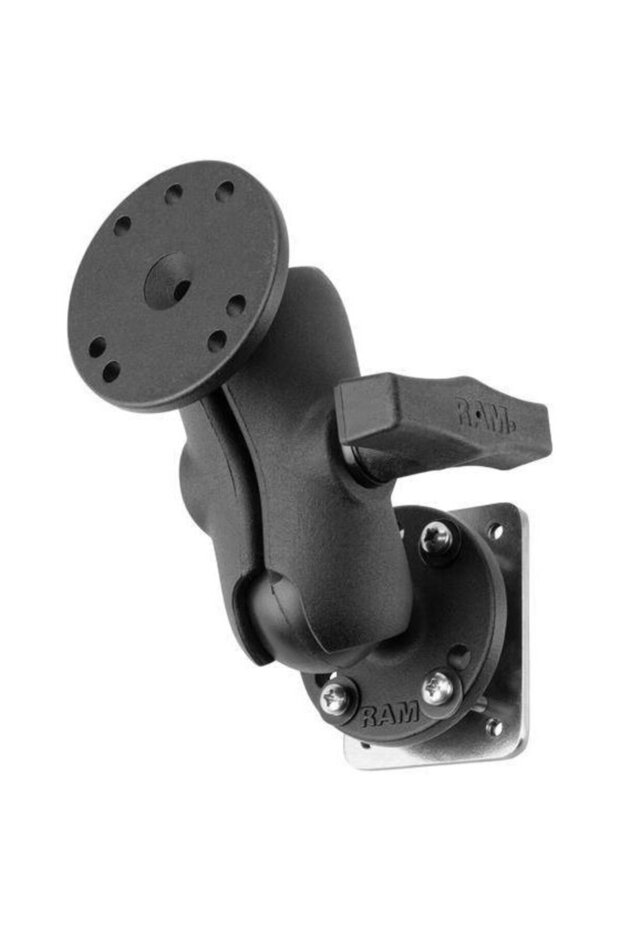

ram mounts Ram® drill-down control panel support with support plate - short c size

Product description

Introducing the ram-101-b-225b2u, a new mounting option and component that allows you to pair any stand or dock with a dashboard drill-mount. this unit features a c-size, short-length, dual-socket arm, two 2.5&#34

diameter round bases, an amps universal hole pattern, and a 2.10 x 2.60 steel support plate (hardware included). patented ram ball and rubber socket technology absorbs shocks and vibrations, and allows for virtually infinite adjustment, ensuring your device maintains the perfect viewing and operating angle. Product features: Double ball bearing drilling support with a 2.10&#34

x 2.60&#34

steel backing plate, compatible with ram® components featuring the amps universal hole pattern.

Features a 1.5&#34

c-size ram® rubber ball and a short-length, dual-slot arm

ball and socket technology allows for virtually infinite adjustability.

Marine grade, aluminium and steel, powder-coated components for durability and dependability in the toughest environments

Lifelong supported

Product weight: 526 g. Hardware included: (1) 2.10&#34

x 2.60&#34

steel support plate | (4) #8-32 x 1&#34

machine screws | (4) #8 split lock washers | (4) #8 flat washers Product dimensions: Overall height: 5.225&#34

Length from base to base: 2.5 inch Hole pattern: Round plate: |4 holes amps: 1.181&#34

x 1.496&#34

|3 holes 120 degrees: 1.812&#34

diameter Size of the ball: C size (1.5&#34

) Weight capacity: Standard use: 1814.37 grams|intensive use: 1360.78 grams Material: Aluminum marine|steel Type of packaging: Poly bag Component parts: Ram–201u–b Ram–202–225–2u Ram–202u
