Raymek Sliding Door Mechanism Sliding Door (3 Mt Rail Included) The Door Itself Is Not Included.

Sliding room door. Kitchen sliding door raymek. It is a sliding door system without brakes

the carrying capacity is 60 kg for one door. Door is not included. It offers easy and practical assembly opportunity. It will be sent with a 3 mt ray. We can cut to any size you want,it is designed for wooden and aluminum panel doors. It is suitable for use with panel thicknesses between 18 - 60 mm.

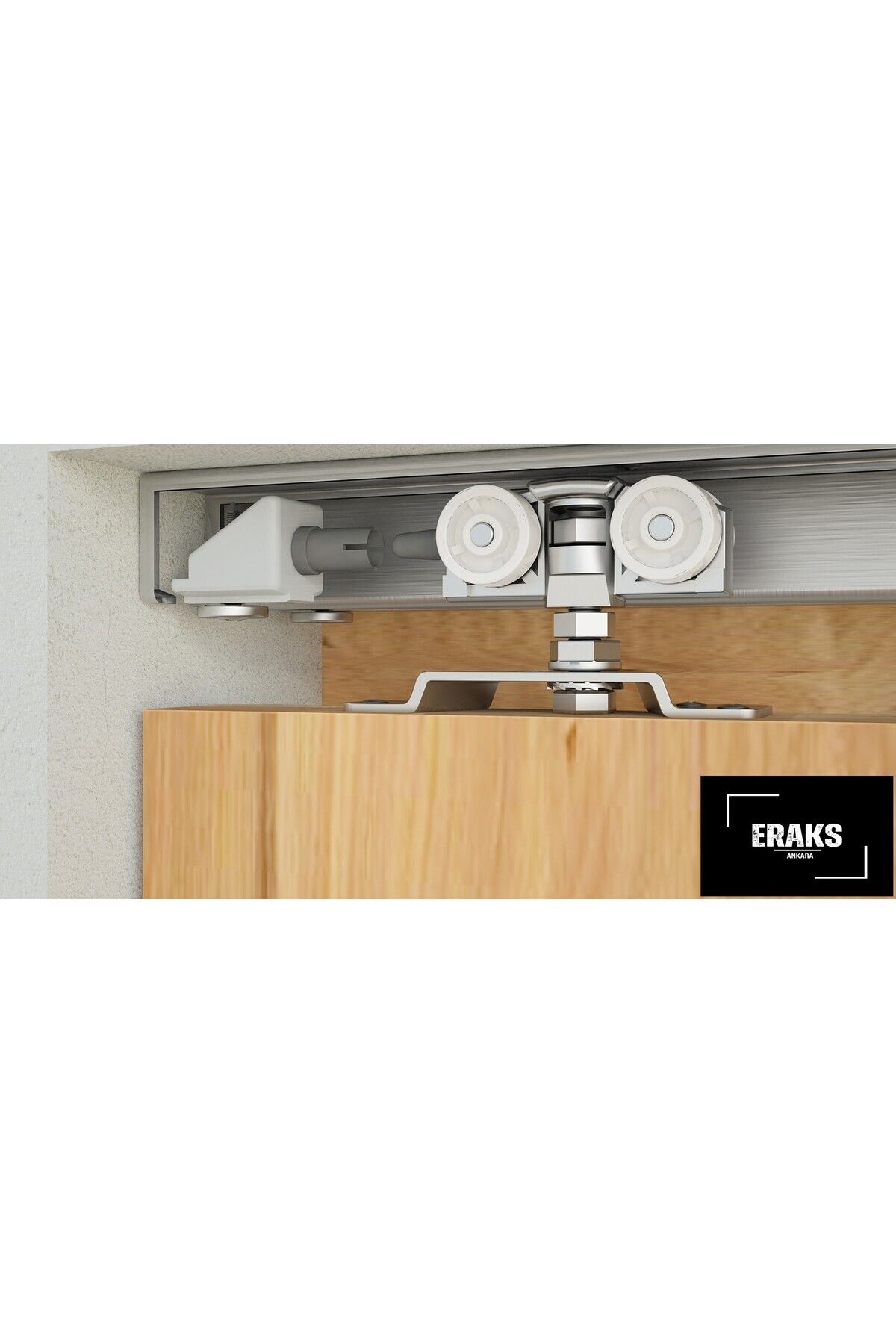

our system has a stopper stopper. There are rail profile connection screws available for wall surface mounting.

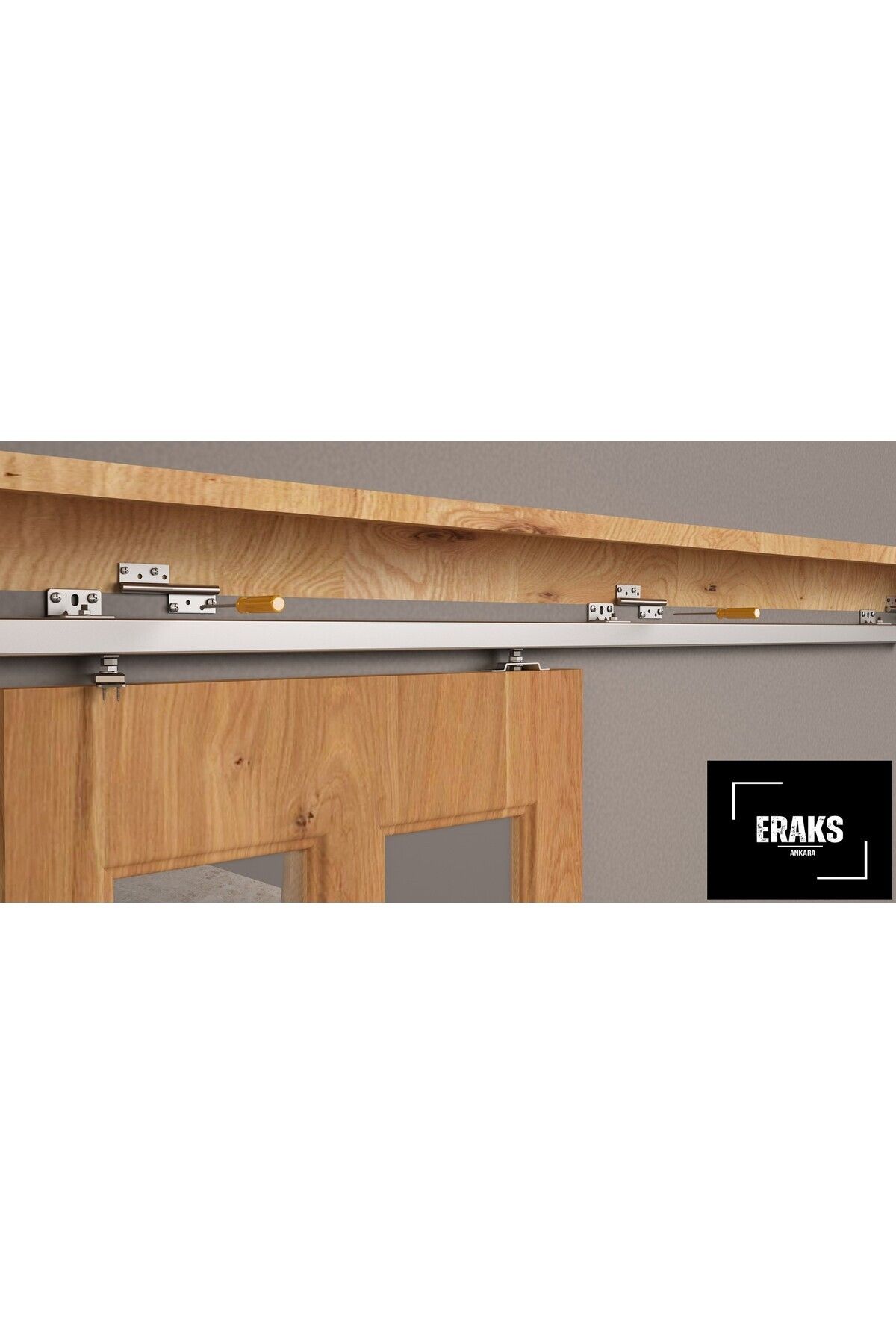

the system can make height adjustment to the upper mechanism. Application: raymek brakeless sliding door system

maximum 60 kg on a door. The weight of it applies the lid.

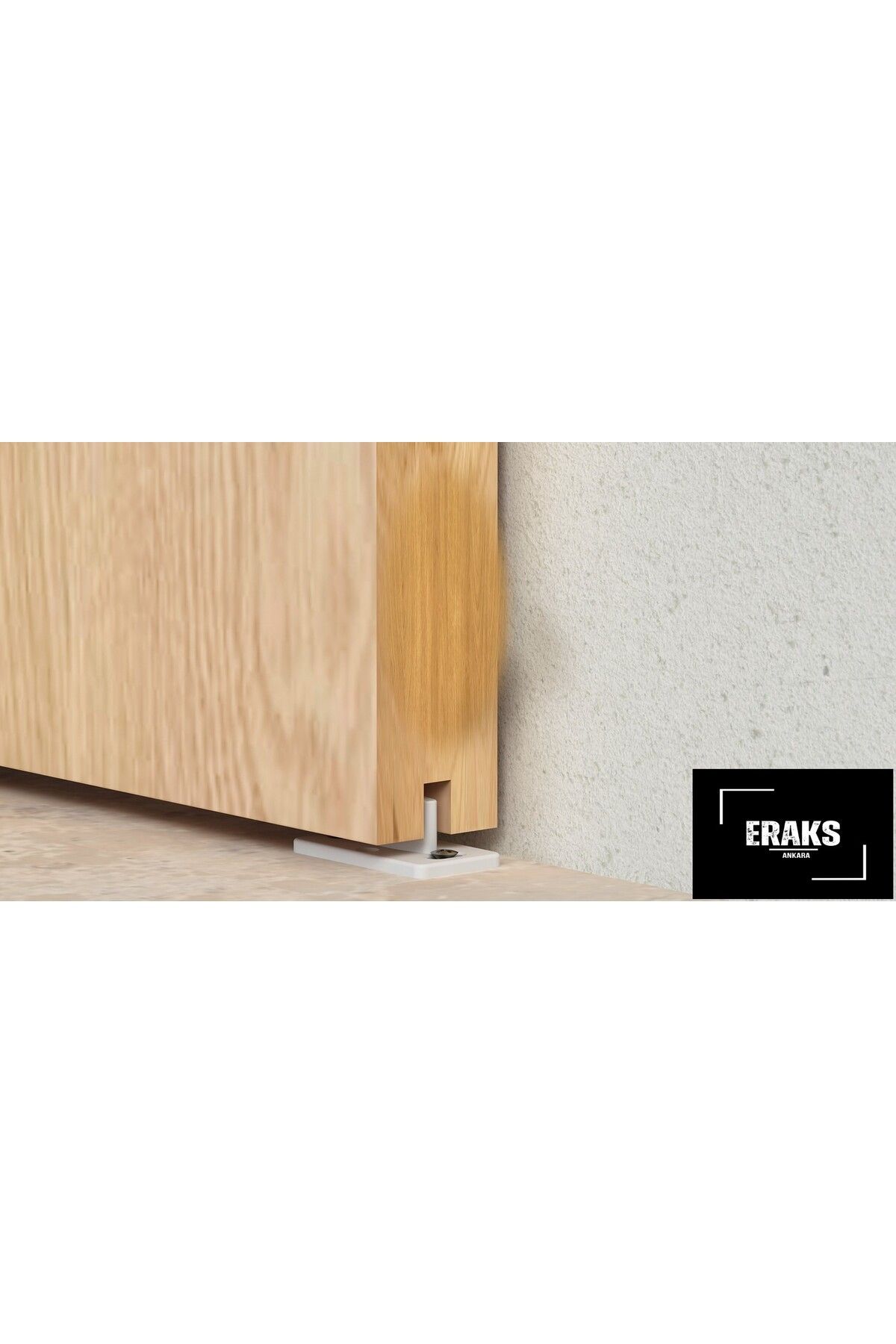

cover thickness should be between 18-60mm. Before installing the top rail on the ceiling or cabinet top, place the rollers and stoppers inside the rail and then install the rail. 2- please make a 15 mm deep and 8 mm wide channel on the bottom surface of the door

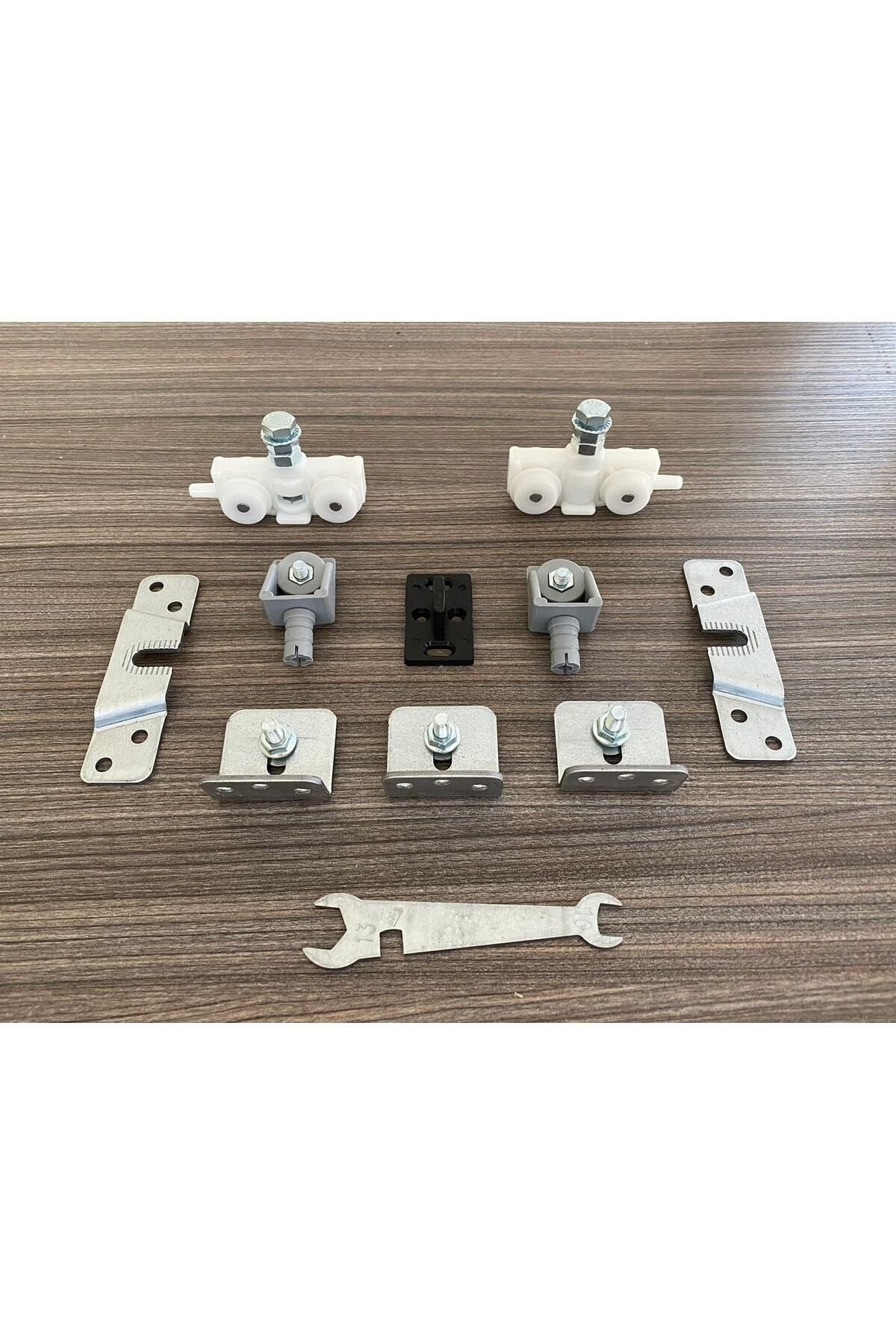

3- connect the bottom guide element to center the door. 4- hang the door on the rollers inside the track, check if the door operates smoothly within the track. We are adding the screws and dowels needed for assembly to the package.
