RF4 Microscope Lens WD165, 0.5x reviews
Product details
Product description

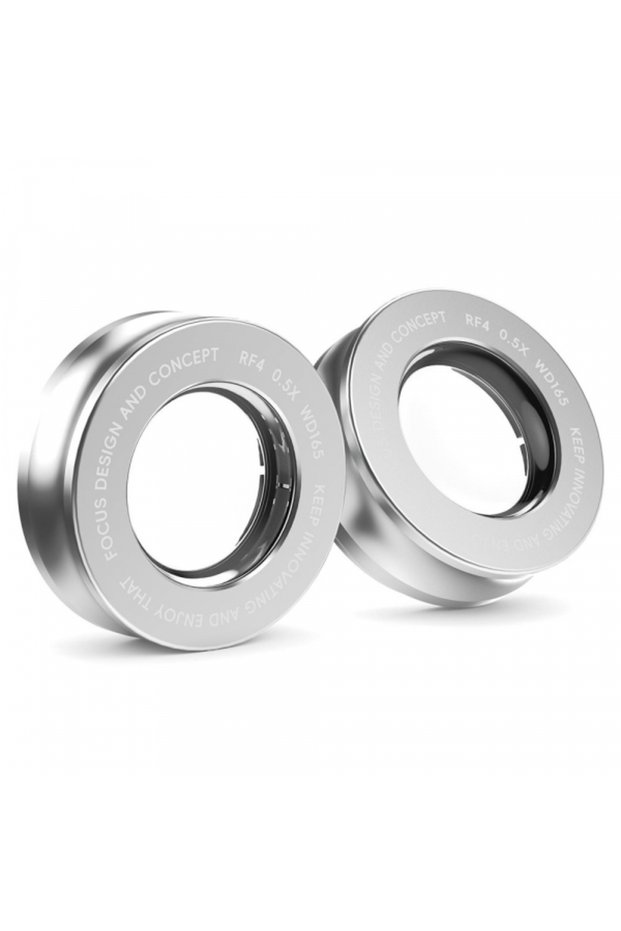

The distance between the nozzle and the surface is too small, preventing you from inserting the caulking gun or the hot air gun. The rf4 wd165 0.5x lens increases the working distance to 165, giving you more room to maneuver under the microscope. It is mounted on the stereo microscope’s objective lens and is designed for micro-welding operations. The wd165 code is required specifically so that you don’t receive the wd120 version. The space under the lens matters. With a greater working distance, you can hold the tip of the soldering iron at an angle, not vertically, and reach the pads on the edge of the chip more easily.
it is also used for the second stitch, when you hold a thread in place while sewing. The risk of the tool hitting the lens is significantly reduced.
blowing warm air helps to keep the lens away from the heat source. It doesn’t completely eliminate the problem, but it reduces the buildup on the windshield. A protective shield is still recommended when working in hot environments for extended periods. What changes when you install it? The 0.5x factor reduces magnification, so you will see more, but with less fine detail. For very small adhesions, you might want to disassemble it and return to the bare lens. I use it for demolition and in hot weather, and then i remove it for finishing work. After assembly, readjust the focus and, if necessary, adjust the height of the plate holder. Check to make sure there are no vignetting effects on the edges, which would indicate that the lens is not properly aligned.
but try the sacrificial plate before you start working. Daily care.
remove the lens at the end of the day, while the deposits are still soft. A microfiber cloth dedicated to optical cleaning and a small amount of isopropyl alcohol are sufficient. Don’t use paper napkins, as they leave lint and can scratch surfaces. Repeatedly screwing and unscrewing wears down the threads, so don’t take it out of its socket dozens of times a day out of habit. If you frequently switch between two lenses, do so carefully and make sure you get the right thread from the start. Keep the lids that come with it.
Additional info
- EU Responsible details are here.
- A maximum of 15 units of this product can be ordered. Trendyol reserves the right to cancel orders over 15 units.
- Sold and fulfilled by .
- Barcode No: G384702
