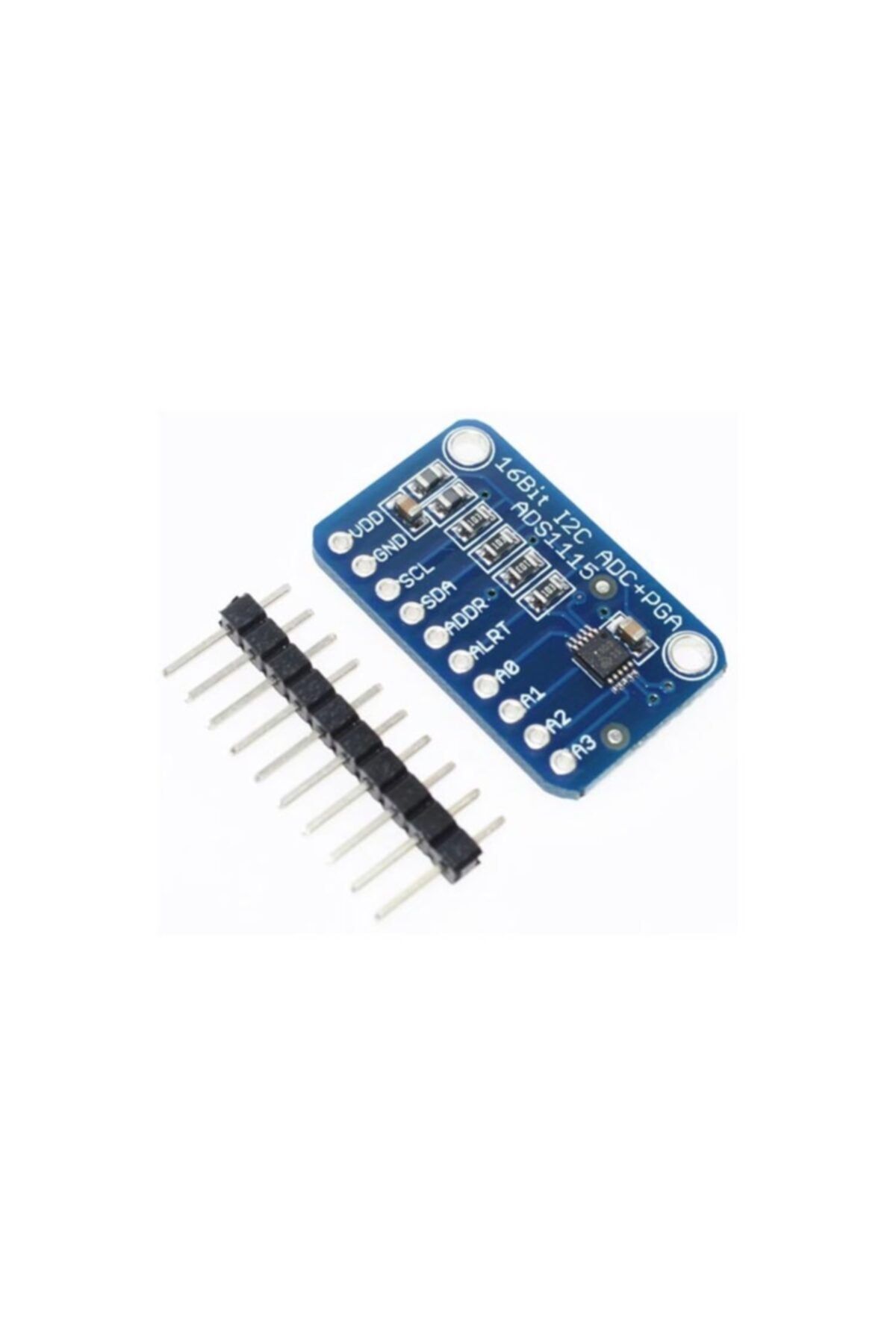

Robiduck Ads1115 16 Bit I2C 4 Channel Adc Module

Ads1115 16 bit i2c 4 channel adc module ads1115 16 bit i2c 4 channel adc module is a digital converter analog, provides 16 bit resolution at 860 / s with i2c protocol. It can be used as 4 single-ended input ch or 2 differential channels. It also has a 16x programmable gain amplifier, amplifying input signals. Features

Working voltage : 2. 0v to 5. 5v Low power consumption: continuous mode: only 150µa single-shot mode: auto shutdown

Programmable data range: 8sps - 860sps

Internal low drift voltage reference

Internal oscillator Built-in pga I2c interface: pin selectable addresses

Four single-ended or two differential inputs

Programmable comparator This motherboard/chip uses i2c 7-bit addresses between 0x48-0x4b, selectable with jumper wires. General descriptions about the products we offer for sale in our store * returns and exchanges: please contact our store via email (). Please send the product to be returned or exchanged, along with its invoice, in a packaging that will not be damaged, via mng cargo. Our agreement code that you need to report at the mng cargo branch for return is 346718018. ** the descriptions given in our robiduck store are based on information and documents such as product labels/brochures provided by the manufacturer/importer companies. The information in the product descriptions does not imply that the promised effects will definitely occur. *** product images displayed, box packaging and forms may vary. In such faulty situations, you can express your complaint to us from the suggestions section on the product page. We will try our best to fix it promptly. The shipping processes of our products may vary. Before placing an order, please pay attention to the shipping processes available on the product page. If there is no extra information about the shipping process on the product page, your orders placed until 15:00 on monday-friday are delivered to the courier on the same day.
