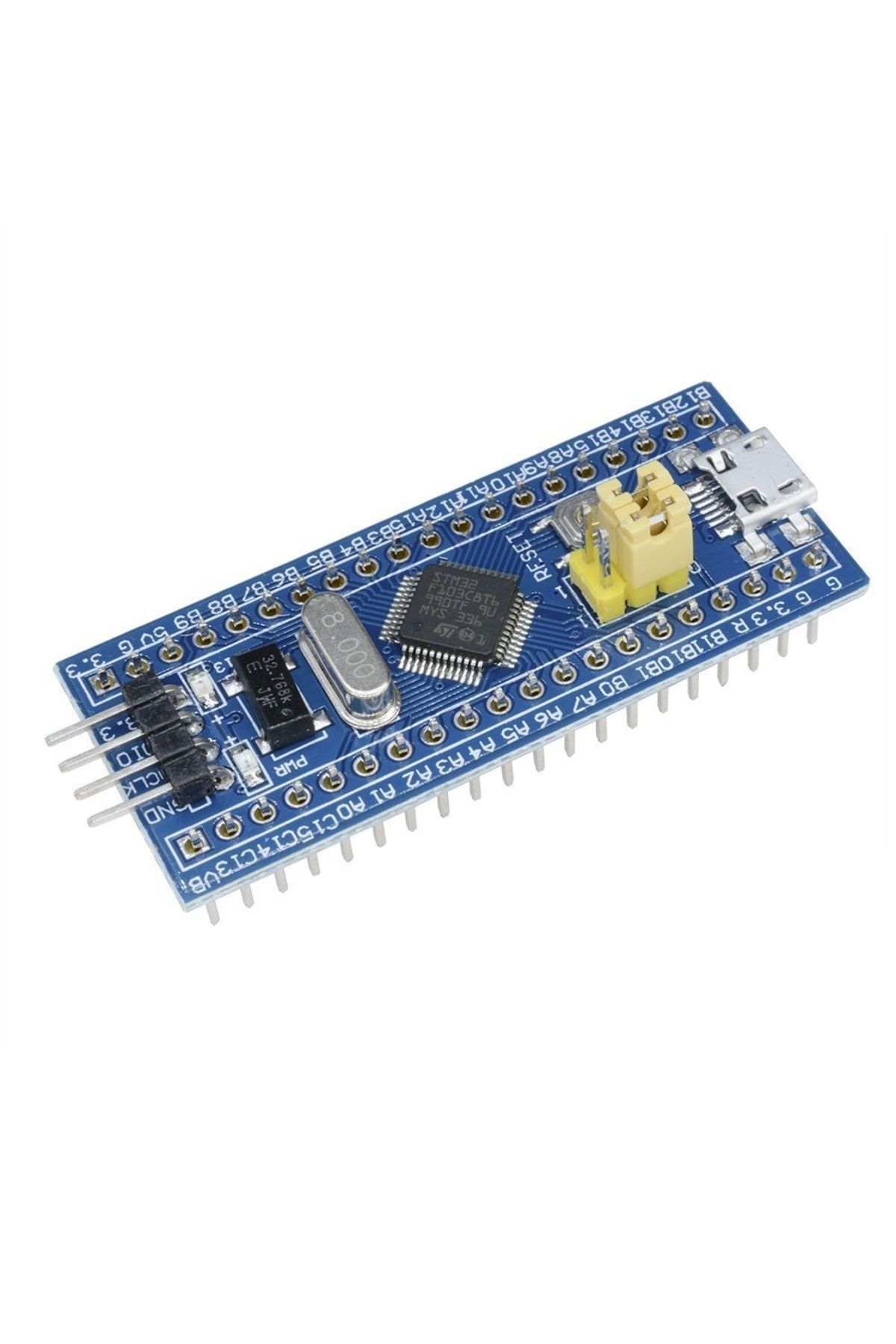

Robiduck Stm32f103c6t6 Arm Mini Development Board

Stm32f103c6t6 arm mini development board stm32f103c6t6 minimum system board microcomputer stm32 arm core board. It is suitable for students who want to learn the stm32 microcontroller with arm cortex-m3 32-bit core. Features onboard 100ma 3.3v regulator

all gpios are selected and the pins are named.

once the headers are soldered, you can then plug it directly into a breadboard.

cpu part number: stm32f103c6t6

core: arm 32 cortex-m3 cpu.

Debug mode: swd (programmable by st-link v2)

Cpu internal max clock: 72mhz External clock source: 8mhz crystal

64k flash memory, 20k sram

2. 0-3. 6v power, i / o

Reset (por/pdr) Size: 5. 3cm x 2. 2cm Package contents the package includes 1 stm32f103c6t6 arm mini development board. General descriptions about the products we offer for sale in our store * returns and exchanges: please contact our store via email (). Please send the product to be returned or exchanged, along with its invoice, in a packaging that will not be damaged, via mng cargo. Our agreement code that you need to report at the mng cargo branch for return is 346718018. ** the descriptions given in our robiduck store are based on information and documents such as product labels/brochures provided by the manufacturer/importer companies. The information in the product descriptions does not imply that the promised effects will definitely occur. *** product images displayed, box packaging and forms may vary. In such cases of errors, you can express your complaint to us from the suggestions section on the product page. We will try our best to fix it promptly. The shipping processes of our products may vary. Before placing an order, please pay attention to the shipping processes available on the product page. If there is no extra information about the shipping process on the product page, your orders placed until 15:00 on monday-friday are delivered to the courier on the same day.
